Nordson ProBlue Flex - Heater Plate Parts

Parts
8-32
Part 1128350_02
E 2020 Nordson Corporation
Heater Plate Parts
Item Part
Description
Quantity
Kit P/N
— PLATE,HEATER,SEALED
1 ------ S PLATE,HEATER,MACHINED 1
2 ------ S SEALANT,RTV,RED,10.3 OZ. TUBE 2
3 940141 S O RING,VITON,.489ID X .070W,BR,10414 2
4 1127245 S INSULATOR,CERAMIC,.218 IDX.430 ODX.375LG 2
5 1127306 S WASHER,FLT,.203X.406X.040,ZN 4
6 984120 S NUT,HEX,MACH,#10-32,STL,ZN,14448-FA 4
1
4
5
6
3
2
2X
2X
4X
4X

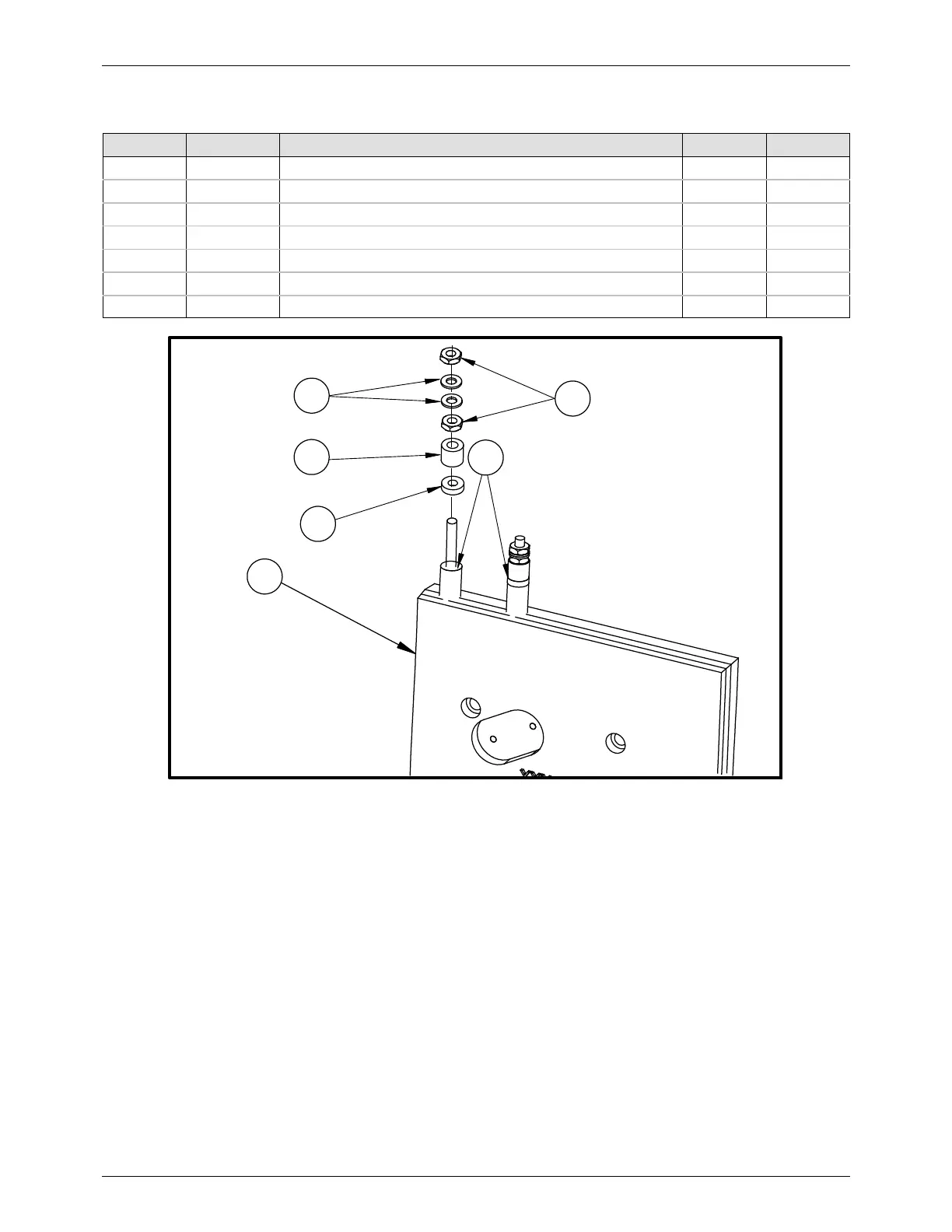

Figure 8-19 Heater plate parts
