Adhesive Tracking System
D-10
Part 1128350_02
E 2020 Nordson Corporation
Flow Meter A ssembly Parts Lists
Flow Meter and Sensor Parts
SeeFigureD-2.
Item Part Description Quantity Note
1 ------ S FLOWMETER, ATS 1 A
2 ------ S SENSOR, INDUCTIVE,ATS 2 B
3 ------ S RETAINER 1
4 ------ S O-RING,VITON 2
5 ------ S WASHER,M5,ZN 2
NOTE A: Refer to the next parts list, Flow Meter Parts.
B: To replace this part, order service kit 1125799 for a sensor with a 1.8 m (6 ft) cable.
1
2
4
3
5

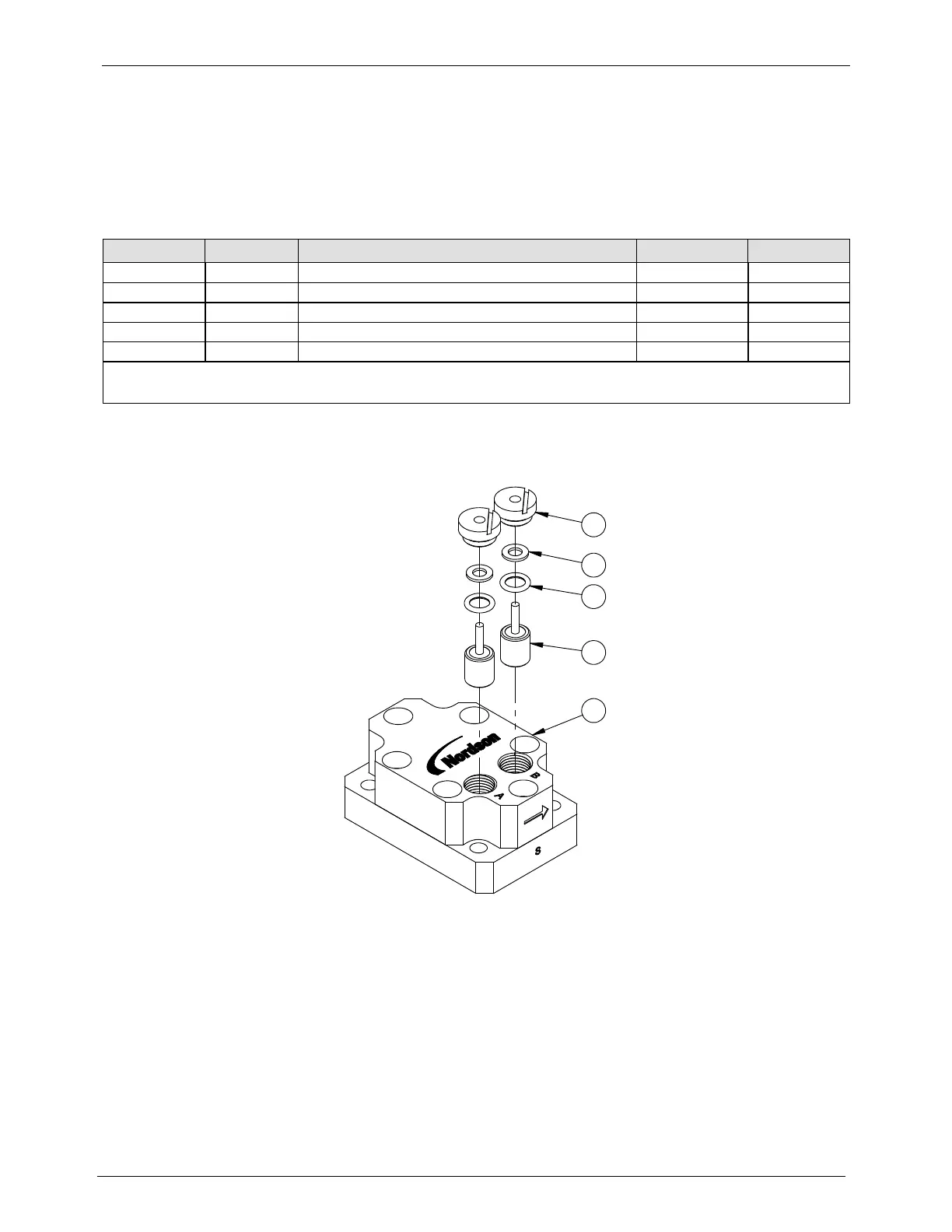

Figure D-2 Flow meter and sensor assembly parts
