Connecting Power to the Solenoid Valve
SeeFigure3-12.
1. Make sure that the melter is turned off.
2. Remove the regulator cover.
3. Removetheentireconnectorandcoilassemblyfromtheuppersolenoid
valve.
4. Connect the 24VDC control wiring to terminals 1 and 2 of the connector.
5. Reinstall the connector and coil assembly to the upper solenoid valve.
6. Route the 24VDC control wiring to the back corner of the electrical
enclosure farthest from the power supply. This will prevent the wiring from
being pinched by the regulator cover.
7. Reinstall the regulator cover.

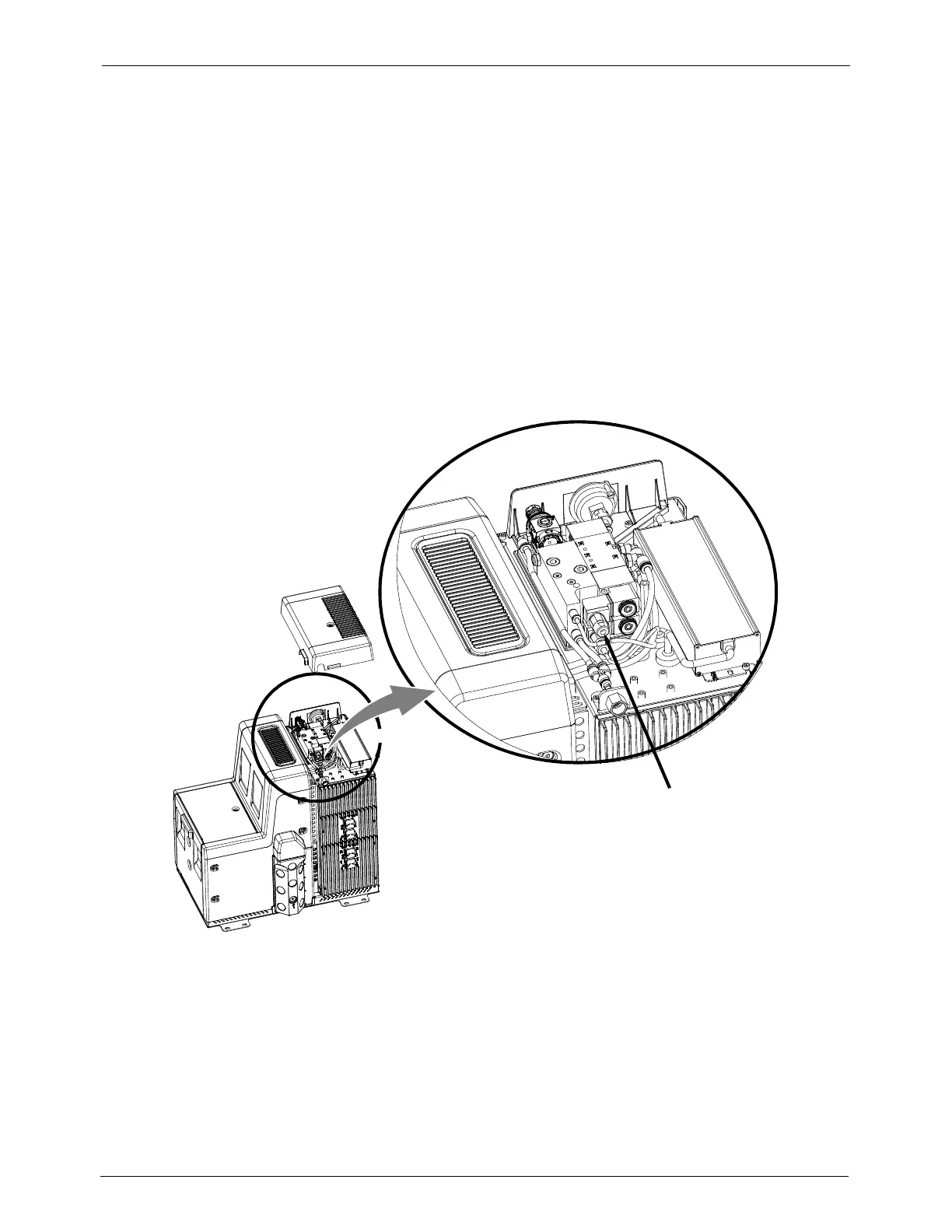

Connect 24VDC pump signal here
Figure 3-12 Connect 24 VDC pump signal location
