Nordson ProBlue Flex - OLED Electrical Enclosure Door

Parts
8-42
Part 1128350_02
E 2020 Nordson Corporation
OLED Electrical Enclosure Door
Item Part
Description
Quantity
Kit P/N
------ MODULE,ELECTRICAL DOOR,OLED 1128094
1301 ------ S PANEL,EBOX DOOR,ASSYOLED 1
1 ------ SS PANEL,EBOX DOOR,PAINTED
1
2 1127655 SS BRACKET,DOOR HINGE,EBOX
1
3 1127232 SS SWITCH,ROCKER,SPST,250V,16A,GOLD
1
4 1122904 SS PLUG,DOME,.875,2D,BLACK
1
5 1127234
SS SCREW,M3X10,STL,ZNC,TORQ,
THREADFORMING
8
6 1127683 SS PCA,UI ASSY,EBOX,OLED
1
7 208498 SS LATCH,SPRING,MED,4MM HEX HD
1
8 1128659 SS GASKET,BULB SEAL,.28 X .66
AN
9 1127165 SS MEMBRANE,PANEL,UI, EBOX
1
1302 105800 S SCREW,SKTHD,M4X.7X8,ZN
1
2
7
5X
8
2
5
6
1
34

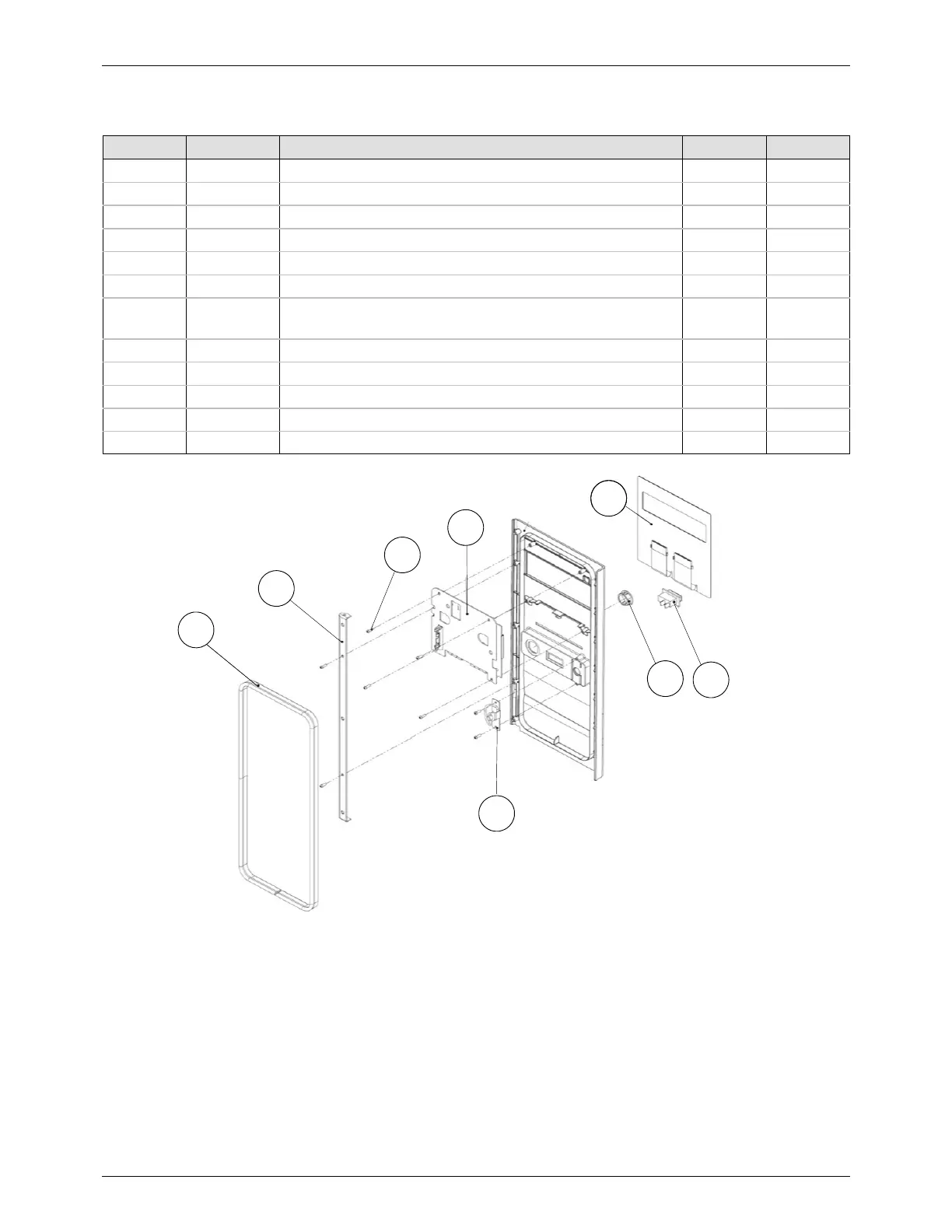

Figure 8-25 OLED electrical door
