Nordson ProBlue Flex - Melter User Interface

Description
2-3
Part 1128350_02
E 2020 Nordson Corporation
Melter User Interface
The melter's Organic Light Emitting Diode(OLED)userinterfaceisusedto
navigate, configure, and fine-tune the system settings.
2
8
6
4
1
10
3
5
7
9
a
b
a
b
c
c

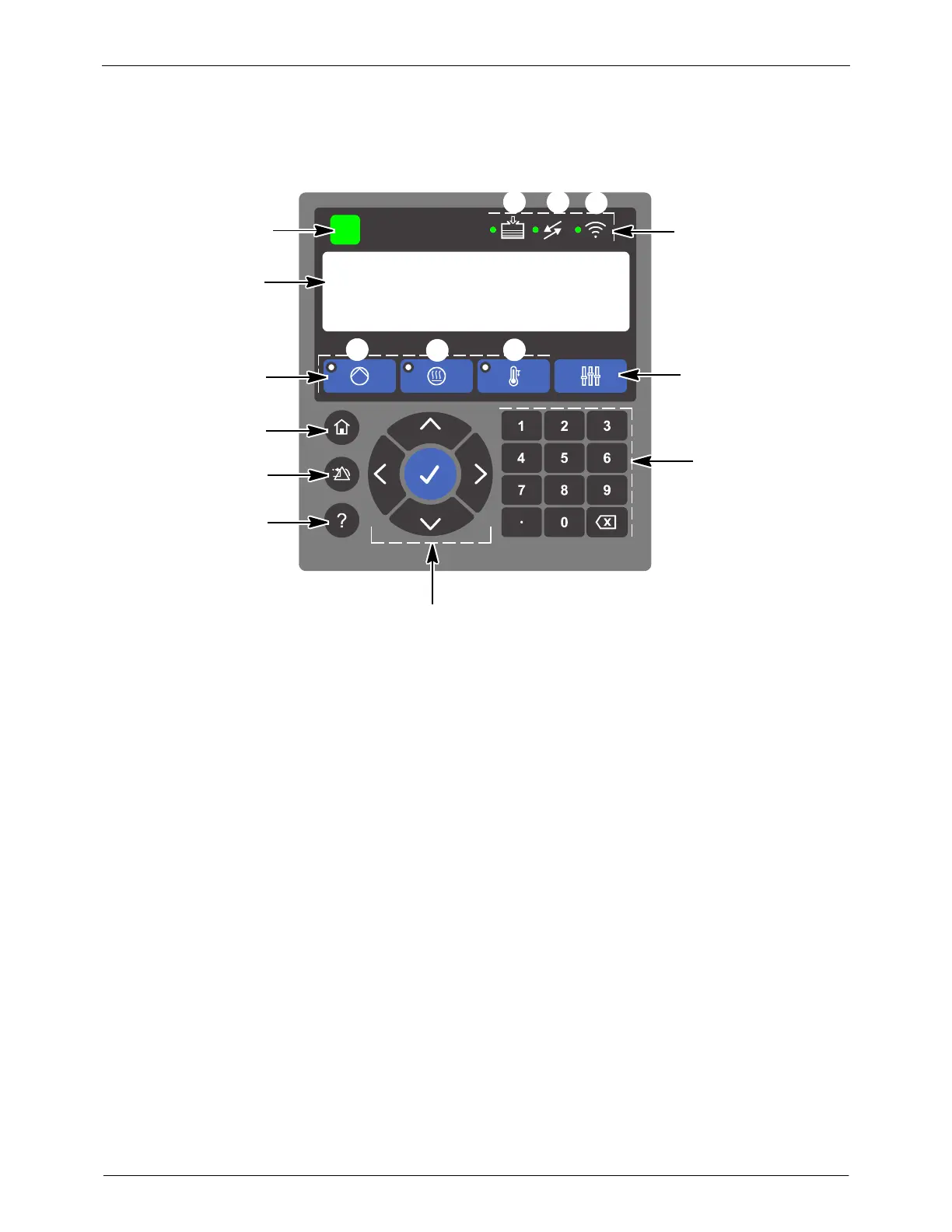

Figure 2-3 OLED User Interface
1. System Status LED
2. OLED Display
3. Master Controls buttons
a. Master Pump buttons with indicator
b. Master Heater Control with indicator
c. Master Temperature Setback with
indicator
4. Home button
5. Clear Reset button
6. Help button
7. Navigation buttons
8. Numeric keypad
9. Additional Master Controls button
10. Indicators:
a. Fill (optional)
b. System I/O or PLC
Communication
c. Wireless LED (optional)
