Remote Touchscreen User Interface
The color Liquid Crystal Display (LCD) remote touchscreen user interface
connects to the LVC by Ethernet and can be located remotely.
1
2
3.94 in.
(100.076 mm)
3.94 in.
(100.076 mm)
0.213 in.
(5.4102 mm)
4X
10.31 in. (261.95 mm)
11.063 in.
(281 mm)
3.310 in.
(84.074 mm)

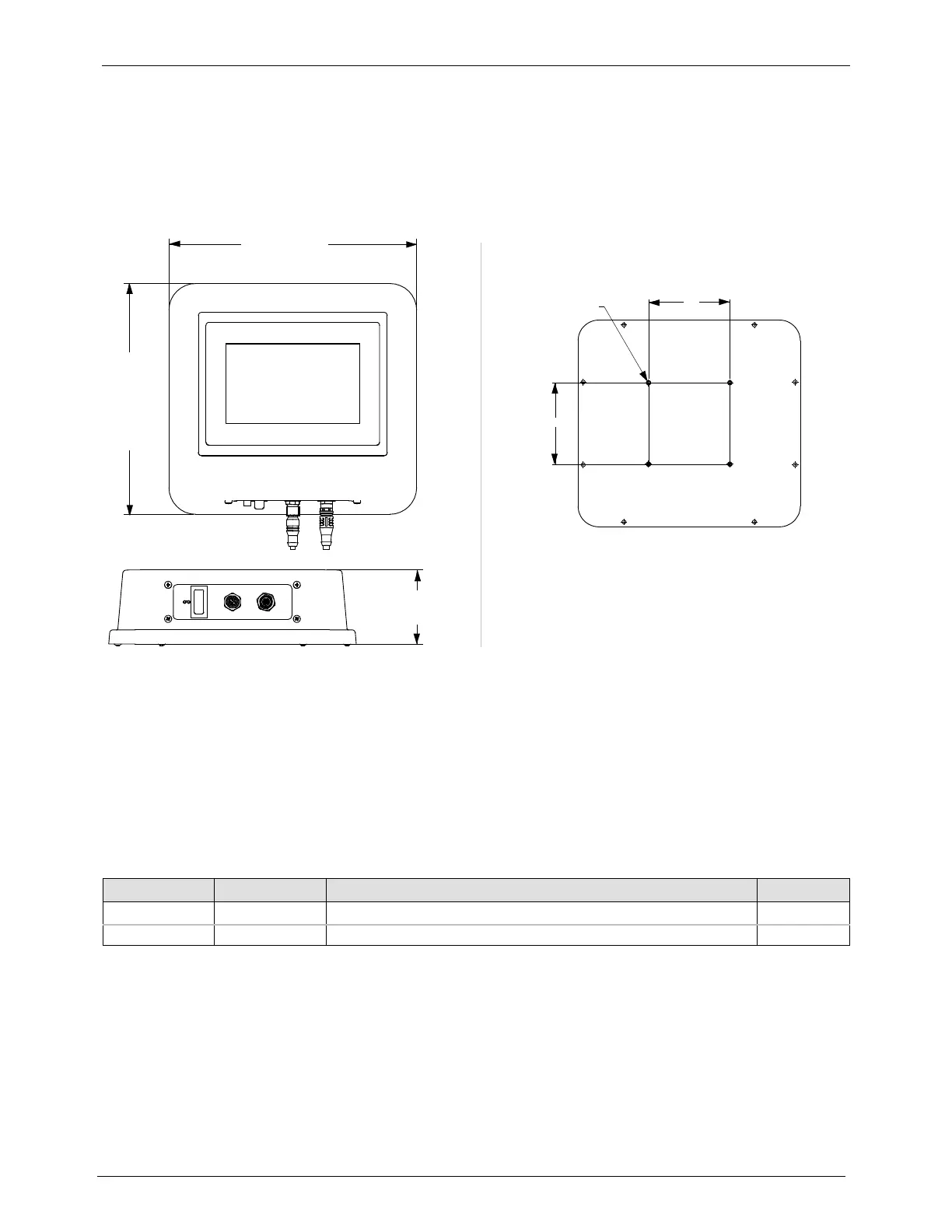

Figure E-1 Remote touchscreen
1. Touchscreen dimensions 2. Touchscreen mounting pattern
Refer to the ProBlue Flex Touchscreen Panel instruction sheet included in
the service kit for installation details.
PB Touchscreen Service Kit (Comes with 5m communication harness)
Kit Part
Part
Description Quantity
1129200 KIT,ACCESS, PB FLEX,TCH SCRN —
------ S CONTROL UNIT, ASSY,T50 PANEL,PB FLEX 1
