Hose/Applicator Expansion Base
G-3
Part 1128350_02
E 2020 Nordson Corporation
Installation Clearances
See Figure G-2. Each expansion base has the same depth and width as the
melter for which it is designed. The expansion base increases the height of
the overall melter assembly by 81.1 mm (3.19 inches).
Sub base height
3.3in.(83mm)
28.3 in.
(719 mm)
Service Clearance
8.1 in. (205 mm)
3.3 in.
(83 mm)
12.7 in.
(323 mm)
21.8 in.
(554 mm)

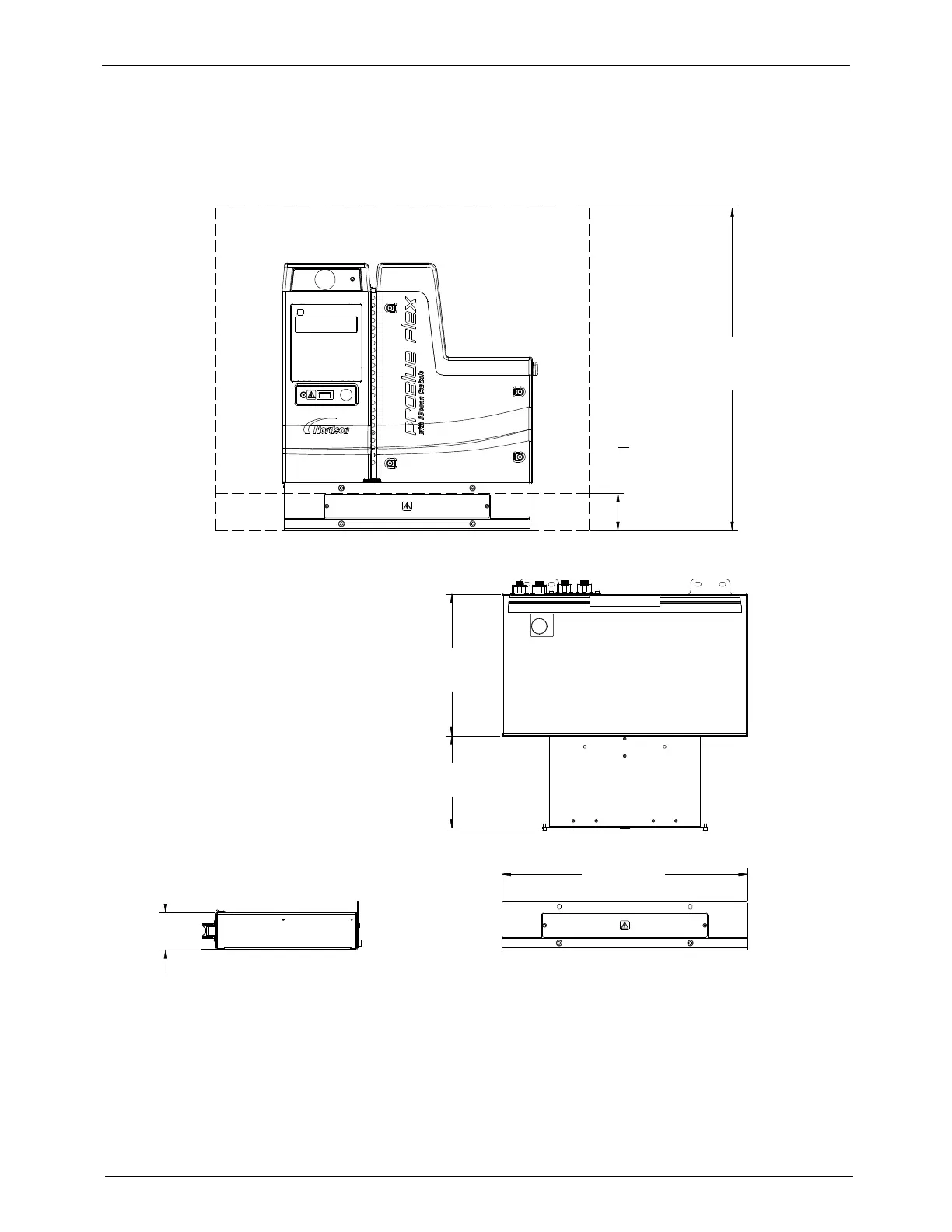

Figure G-2 Expansion base clearances
