Nordson ProBlue Flex - Standard Single Acting Regulator Module with Gauge

Parts
8-49
Part 1128350_02
E 2020 Nordson Corporation
Standard Single Acting Regulator Module with Gauge
Item Part
Description
Quantity
1128901 MODULE,REGULATOR,STD-SA,W/ GAUGE
1601 1128900 S REGULATOR,ASSY,STD-SA,W/BKT 1
1602 1023307 S ELBOW, MALE,6 MM TUBE X G 1/8 3
1603 1128089 S GROMMET,TUNNEL,3 AIR LINES 1
1604 1127723 S BRACKET, WITH 1/4BPST,6MM BULKHEAD 1
1605 105800 S SCREW,SKTHD,M4X.7X8,ZN 4
1606 1023853 S TUBING,REGULATOR TO PDV,6MM 1
1607 1052021 S TUBING,REGULATOR TO PUMP BOTTOM,6MM 1
1608 1023855 S TUBING,PDV TO PUMP,6MM 1
1605
2X
1604
1603
16052X
1608
1607
1606
16023X
1601

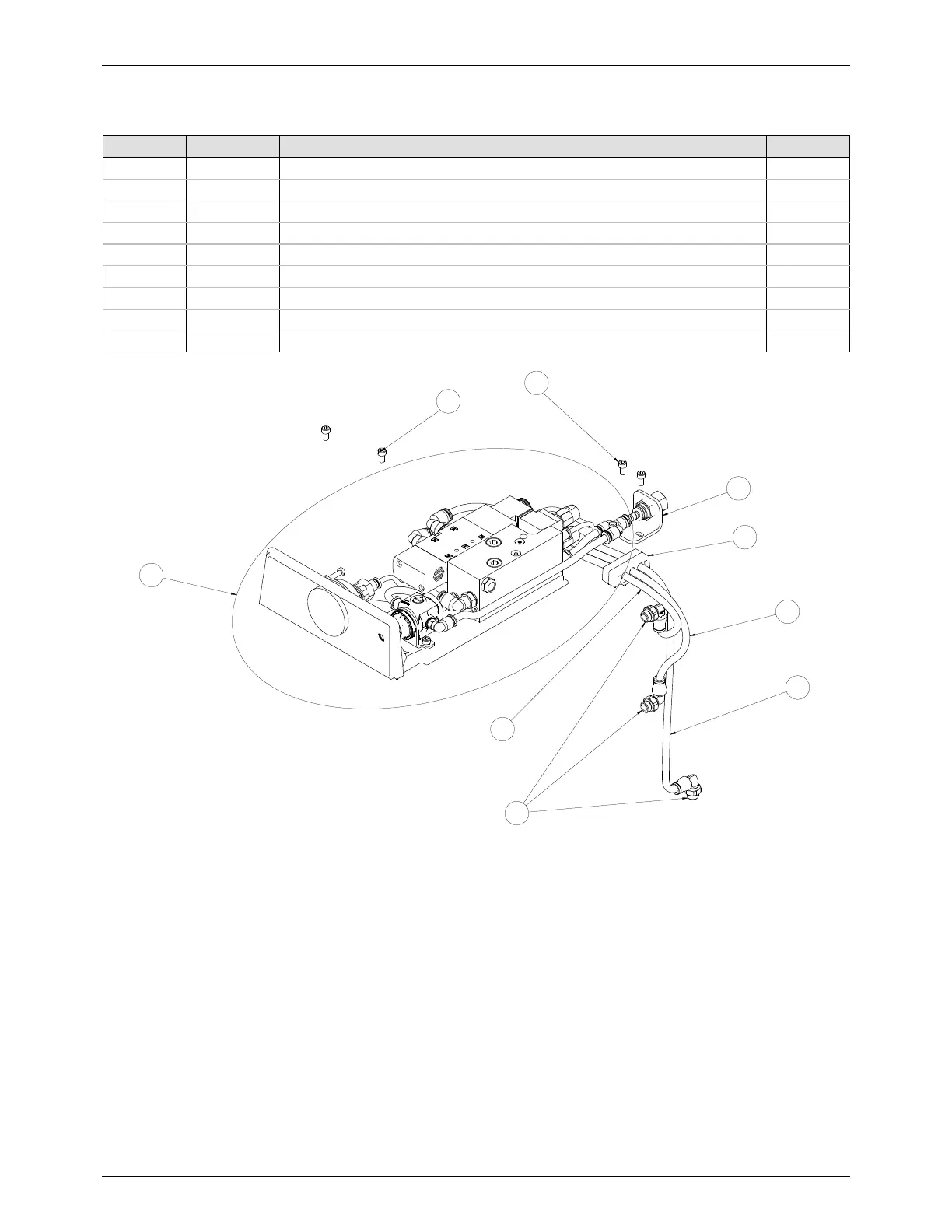

Figure 8-30 Standard single acting regulator with gauge parts drawing
