Nordson ProBlue Flex - Low Viscosity Double Acting Hydraulic Piston Assembly

SP Pump Diagnostics and Repair
B-36
Part 1128350_02
E 2020 Nordson Corporation
Low Viscosity Double Acting Hydraulic Piston Assembly
Item Part Description Quantity
------ 1128655 PISTON ASSY,HYD,LV,PB FLEX
1 1127450 PISTON,PUMP,STANDARD DOUBLE ACTING 1
2 985302 PIN,ROLL,.125X .500,STL,ZN 1
3 900000 BALL,440SSTL,.375, 50 1
4 706009 SEAL,PACKING 1
5 705975 SEAL,BALL,PRESSURE,HMIV PUMP 1
6 900470 ADHESIVE,LOCTITE 272,RED,HI TEMP,50ML 1
1
2
3
4
5
BROKEN SECTION TO SHOW
DIRECTION OF CUP SEAL
6
1
2
DETAIL B
SCALE 3 : 1
NOTES:
1
ENSURE ITEM 4 OPEN SIDE IS FACING AWAY FROM ITEM 5.
2
TIGHTEN ITEM 5 TO 100-120 IN-LBS TORQUE.

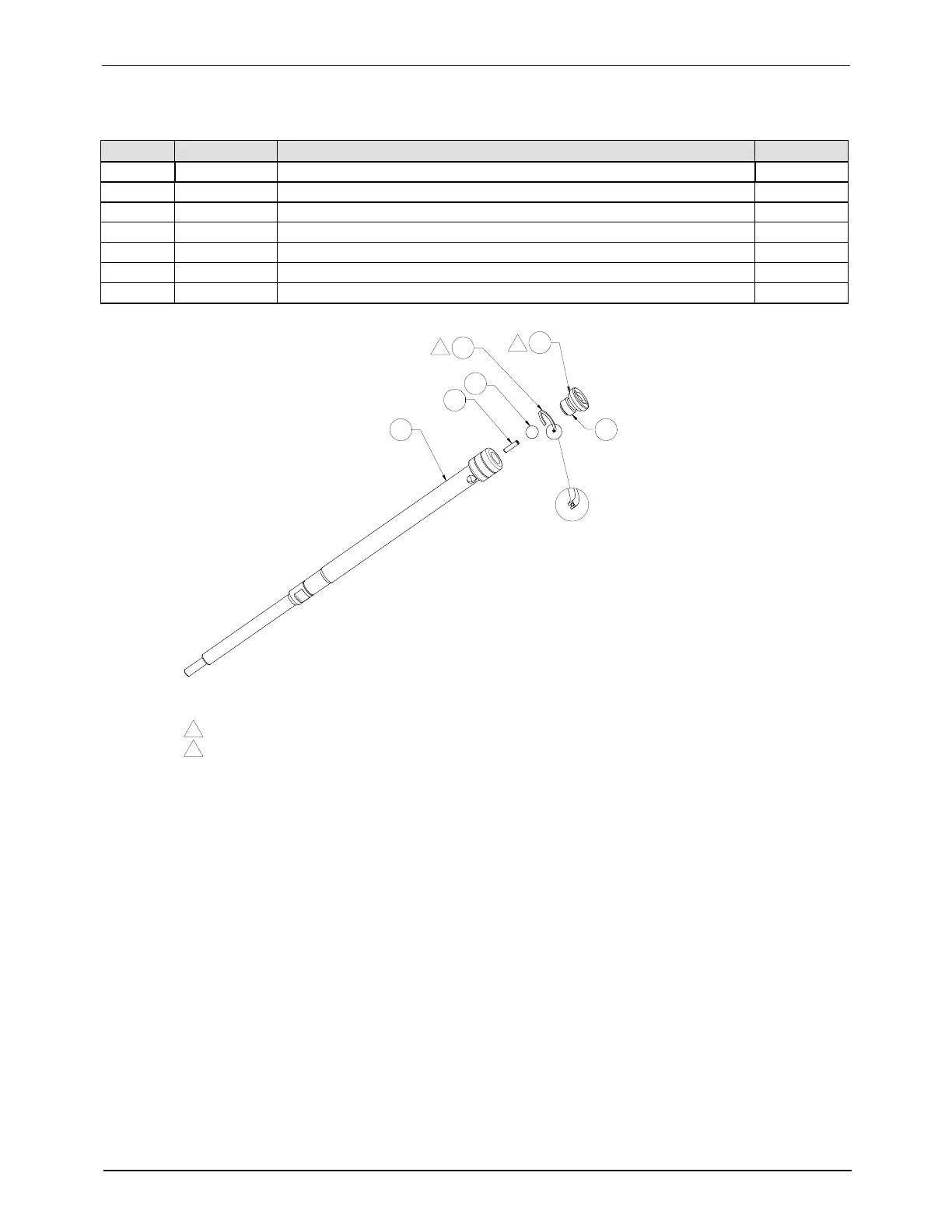

Figure B-14 Low viscosity double acting hydraulic piston assembly parts drawing
