Parts

8-40

Part 1128350_02

E 2020 Nordson Corporation

Electrical Cabinet Assembly (contd)

18X

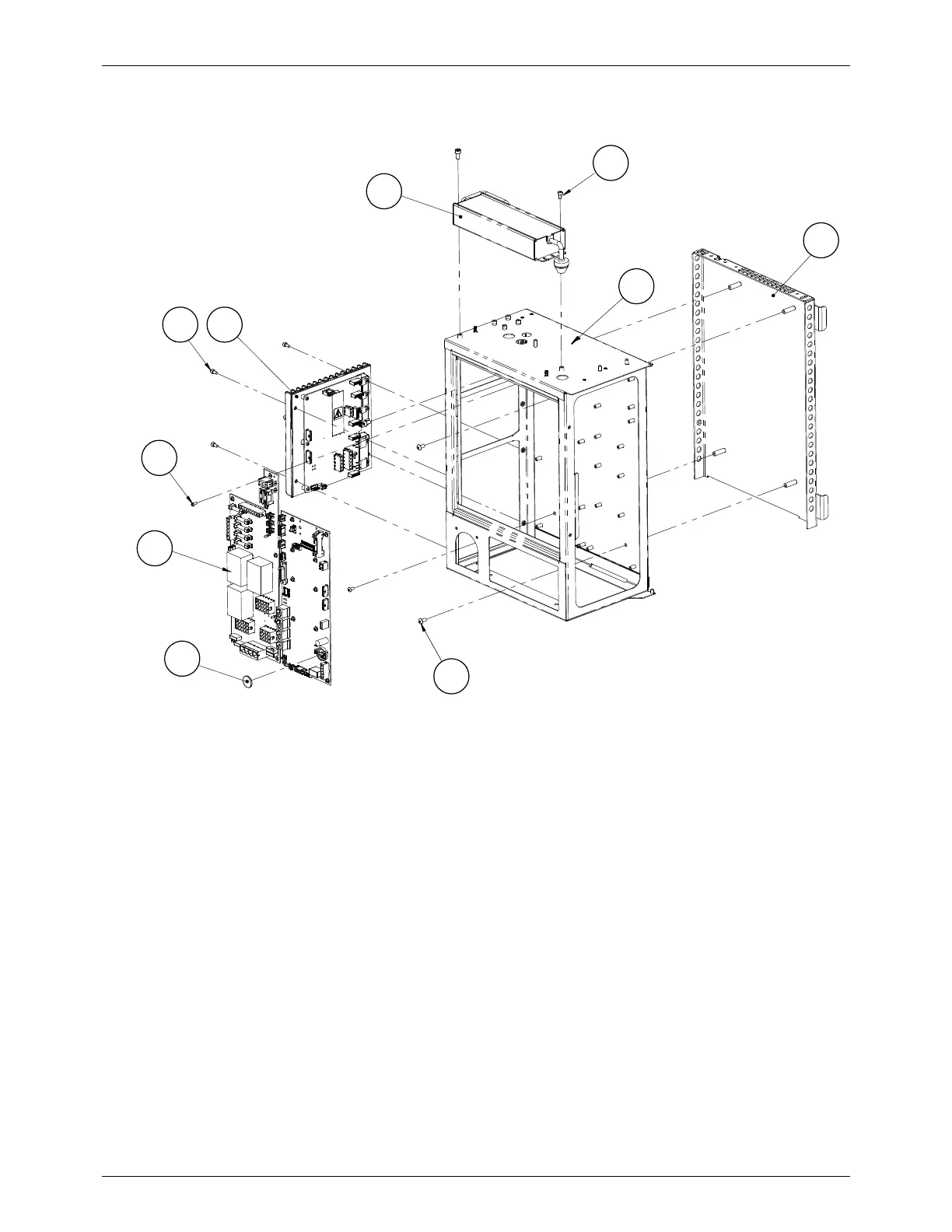

Figure 8-23 Electrical cabinet parts (2 of 2)
