Nordson ProBlue Flex - Page 227

Parts
8-59
Part 1128350_02
E 2020 Nordson Corporation
Power
Supply
P/N 1127000
P/N 1126418
P/N 1127003
P/N 1126418
P/N 1127217
P/N 1127002
P/Ns 1127973 (P1),
Power Distribution
Melt Section:
Power
Distribution
Expansion
Low Voltage Controller Electrical Door
4 Channel
H/A Module
4 Channel
H/A Module
Temperature
Control Module
P/N 1126544
P/N 1126590
P/N 1126574
P/Ns 1127567 (1, 4 Kg), 1127568 (7, 10 Kg), 1127570 (MOD 7, 14)
P/N 1126972
P/N 1128261
1127835 (P2), 1127983 (P3)
4 C hannel
H/A Module
P/N 1128101
(3.15 Amps) -
Quantity: 2
P/N 1128076
(15 Amps) -
Quantity: 2
P/N 1128075
(20 Amps) -
Quantity: 4
P/N 1128076
(15 Amps) -
Quantity: 6

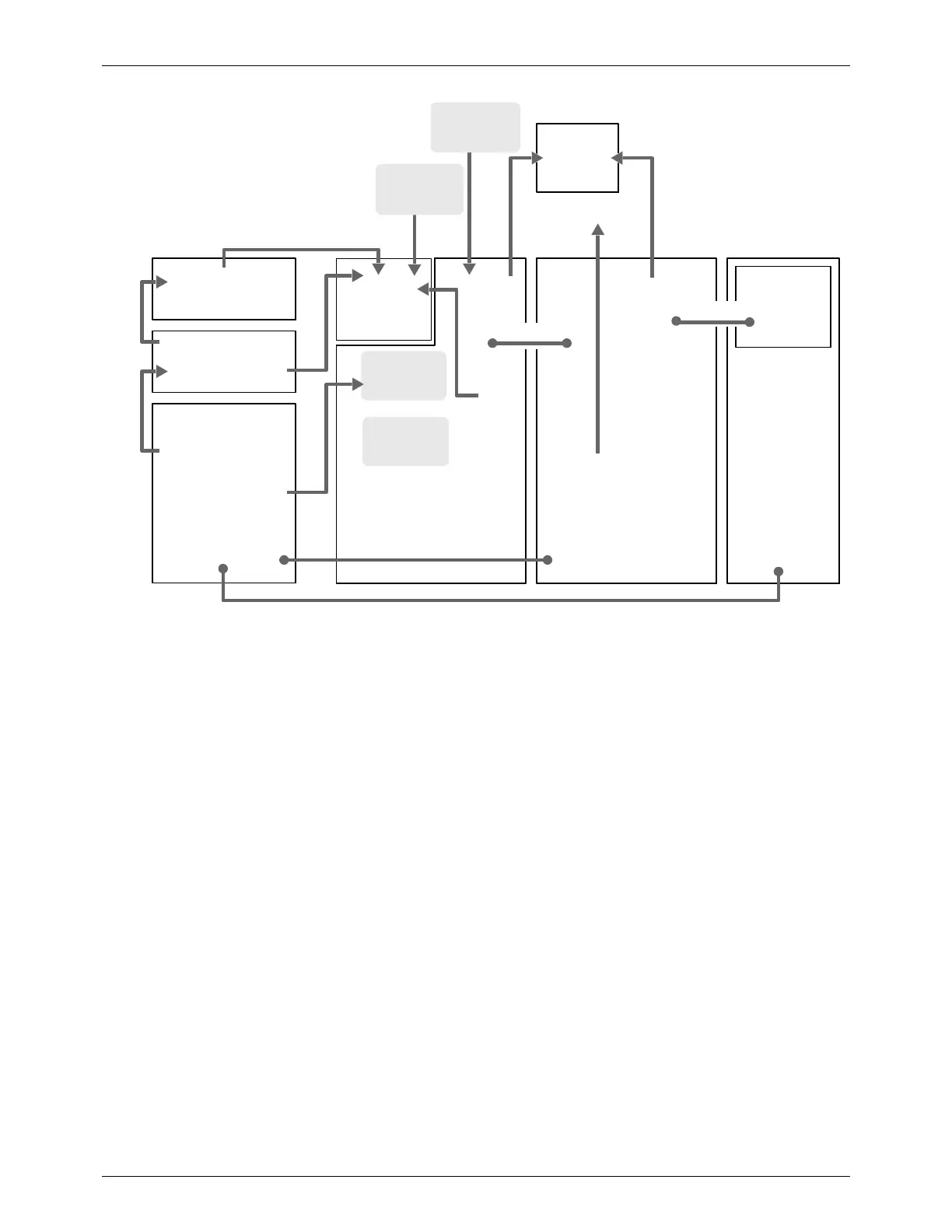

Figure 8-36 Cables and fuse connections with part numbers
