ProBlue Flex 400/480 Volt Transformer
F-13
Part 1128350_02
E 2020 Nordson Corporation
1
2
3

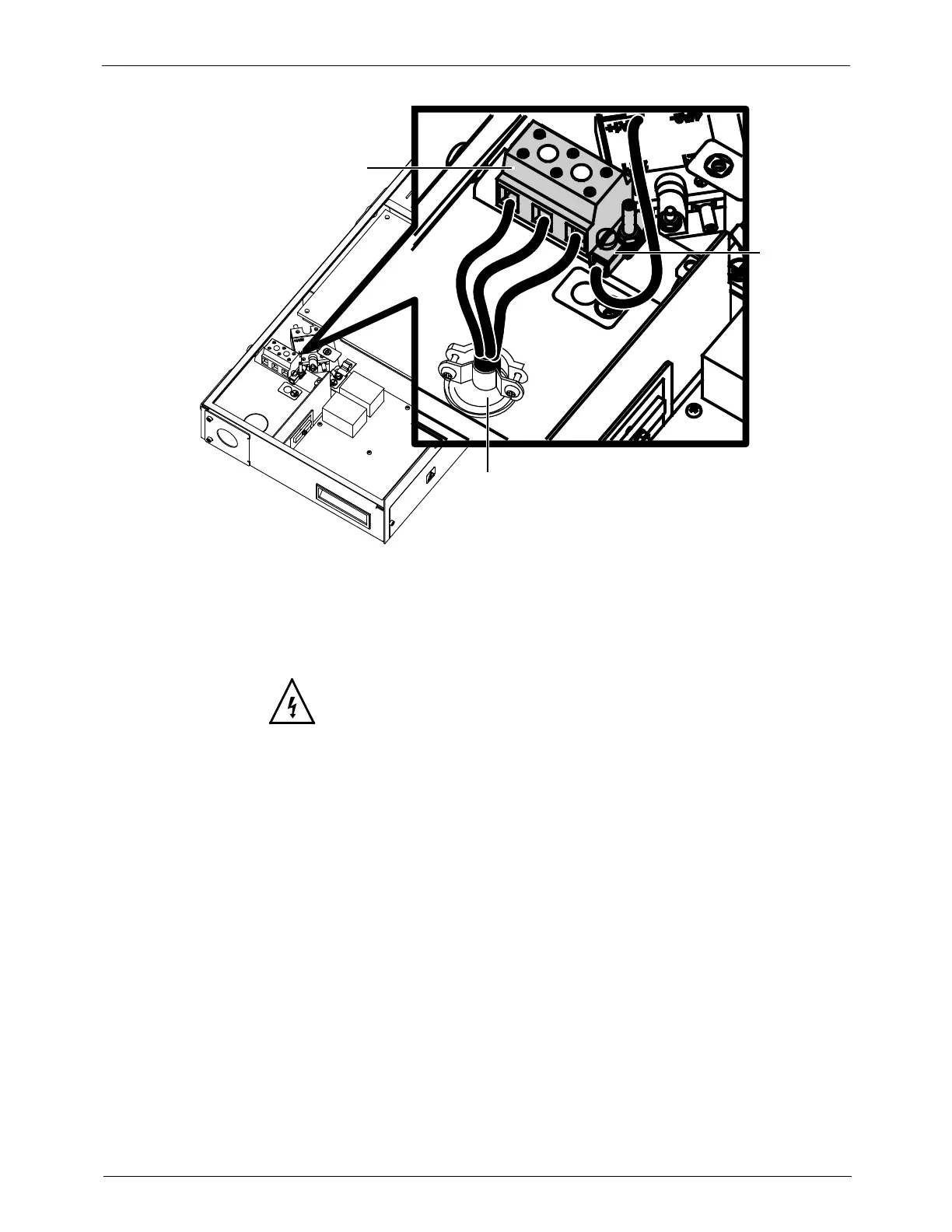

Figure F-9 Wiring the transformer chassis
1. Terminal block 2. Ground lug 3. Cable clamp
2. Connect the power cable to the terminal block (te rminals 1, 2, and 3).
WARNING! Risk of electrical shock. Be sure that steps 3, 4, and 5 are
completed before installing and using the melter.
3. Connect the power cable ground lead to the ground lug that is located on
the transformer chassis.
4. Reconnect the ground lead from the transformer chassis to the g round
connection inside the transformer cover.
5. Reinstall the transformer cover and refasten the two screws.
