Hose/Applicator Expansion Base
G-9
Part 1128350_02
E 2020 Nordson Corporation
4. SecuretheexpansionbasetothemelterusingthetwoM8x20
socket-head screws removed previously. Use a 6mm hex wrench to
tighten the screws.
NOTE: Torque the M8 socket-head cap screws to 17 ft-lb (23 Nm).
Step 3
Step 2

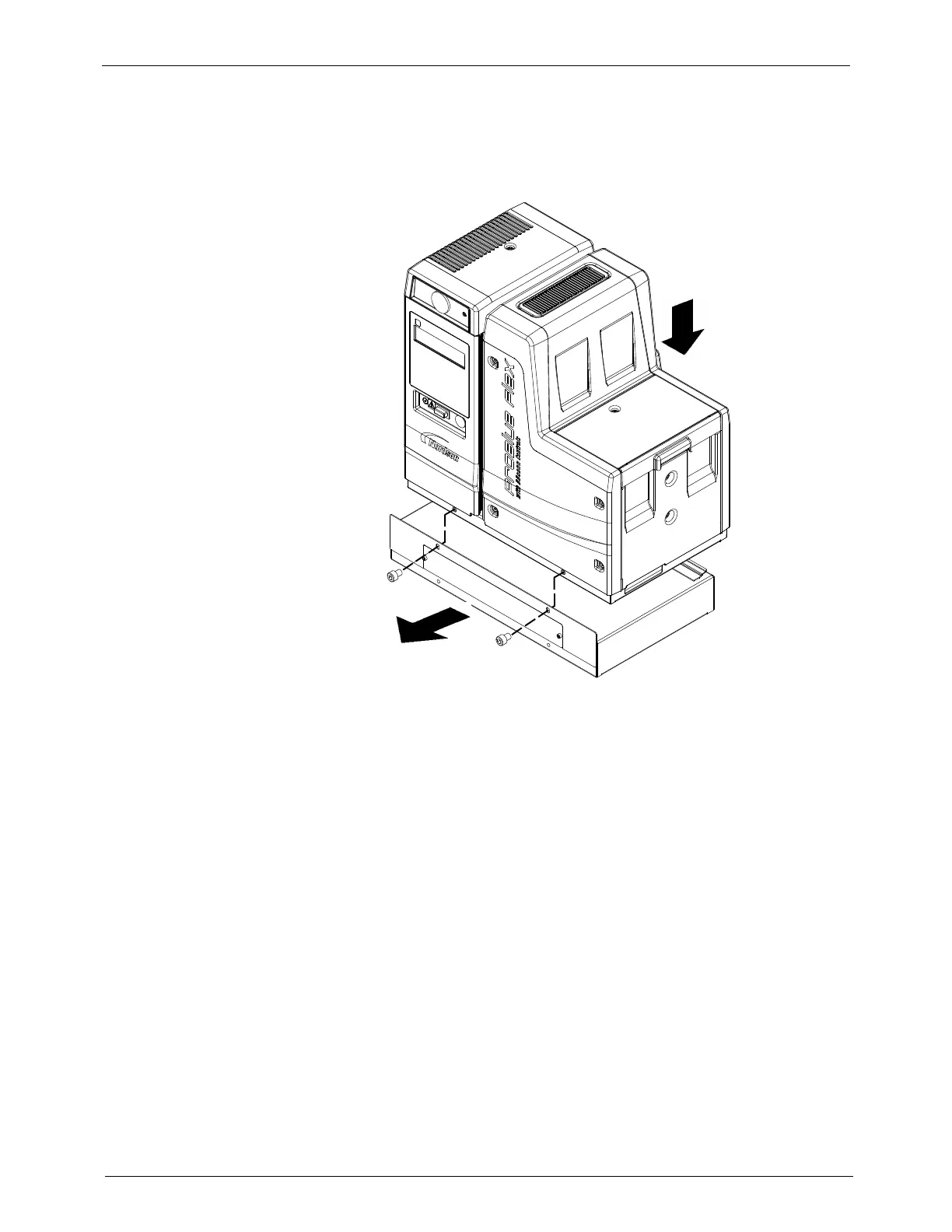

Figure G-6 Mounting the melter to the expansion base
