Installation
3-13
Part 1128350_02
E 2020 Nordson Corporation
3. SeeFigure3-8.Disconnectthegroundwirefromthechassistosub-base
by doing the following:
a. Remove the chassis cover plate screw and then slide the cover plate.
b. Locate the ground wire and disconnect.
3
4
5
6
1
2

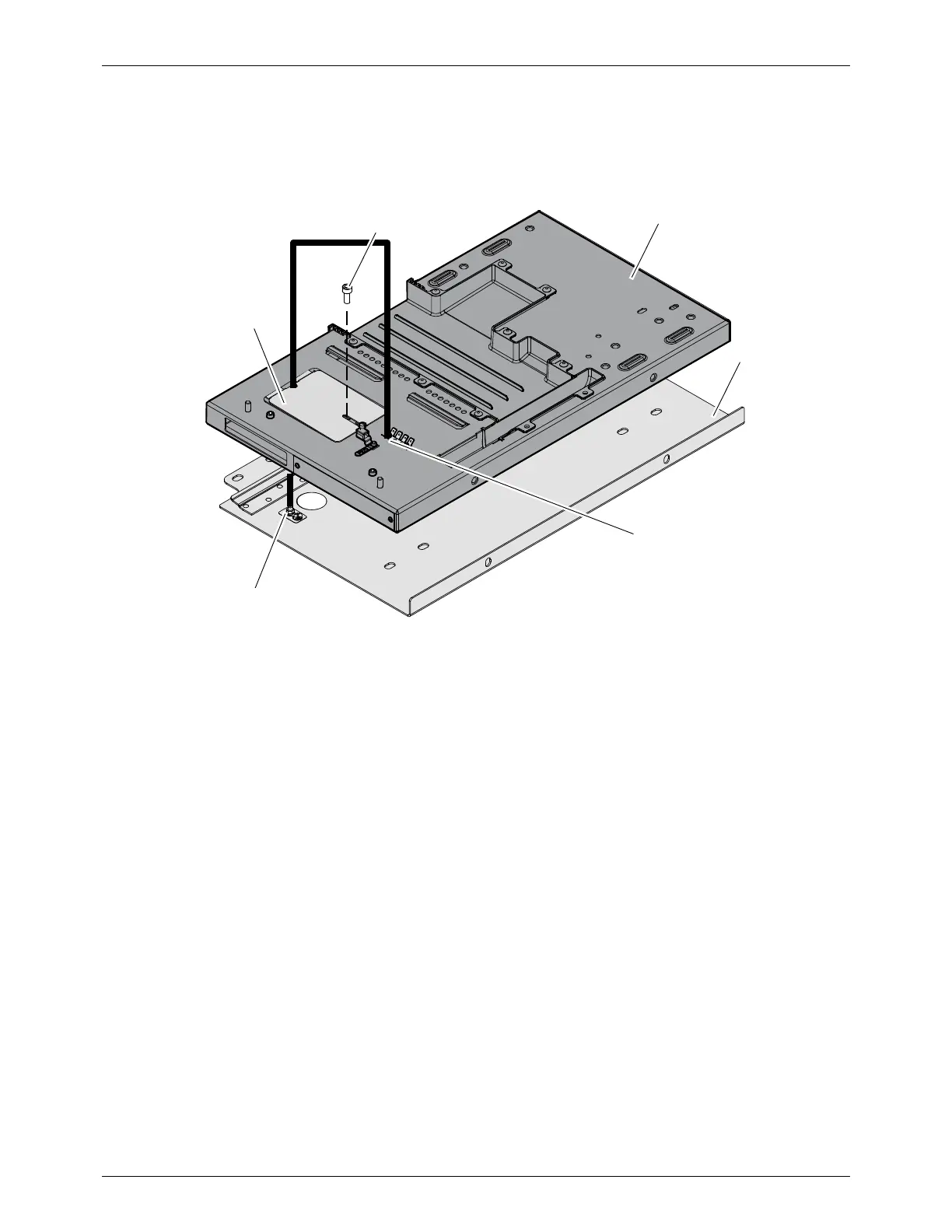

Figure 3-8 Disconnecting ground wire (some components not shown)
1. Sub-base
2. Chassis
3. Chassis cover plate screw
4. Chassis cover plate
5. Sub-base ground wire
connection
6. Chassis ground wire
connection
