Installation
3-32
Part 1128350_02
E 2020 Nordson Corporation
Connecting the Hoses (contd)
1
2

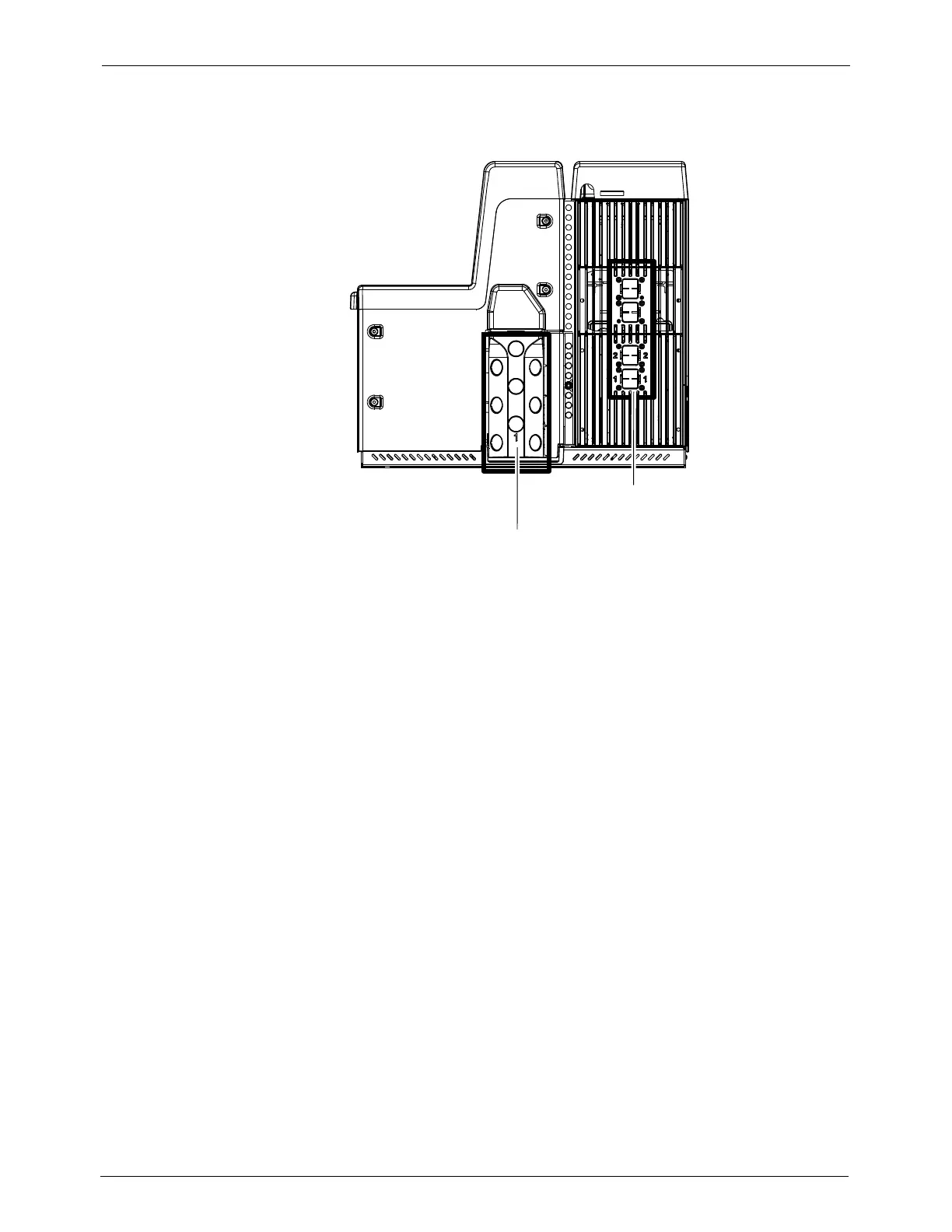

Figure 3-15 Hydraulic and electrical connections
1. Hydraulic connections (hose) 2. Electrical connections
(applicator)
CAUTION! FailuretoconnectahosetoPort 1 may create spaces within the
manifold where hot melt will not circulate. The presence of these spaces can
result in the build-up of hot melt char, which can lead to clogged applicator
nozzles.
S Save all of the port plugs removed from the manifold. A port plug will
need to be reinstalled into the manifold if a hose is later removed.
S Use the 45- or 90-degree or straight hose fittings.
