FRONT PANEL CONTROLS AND LED INDICATORS

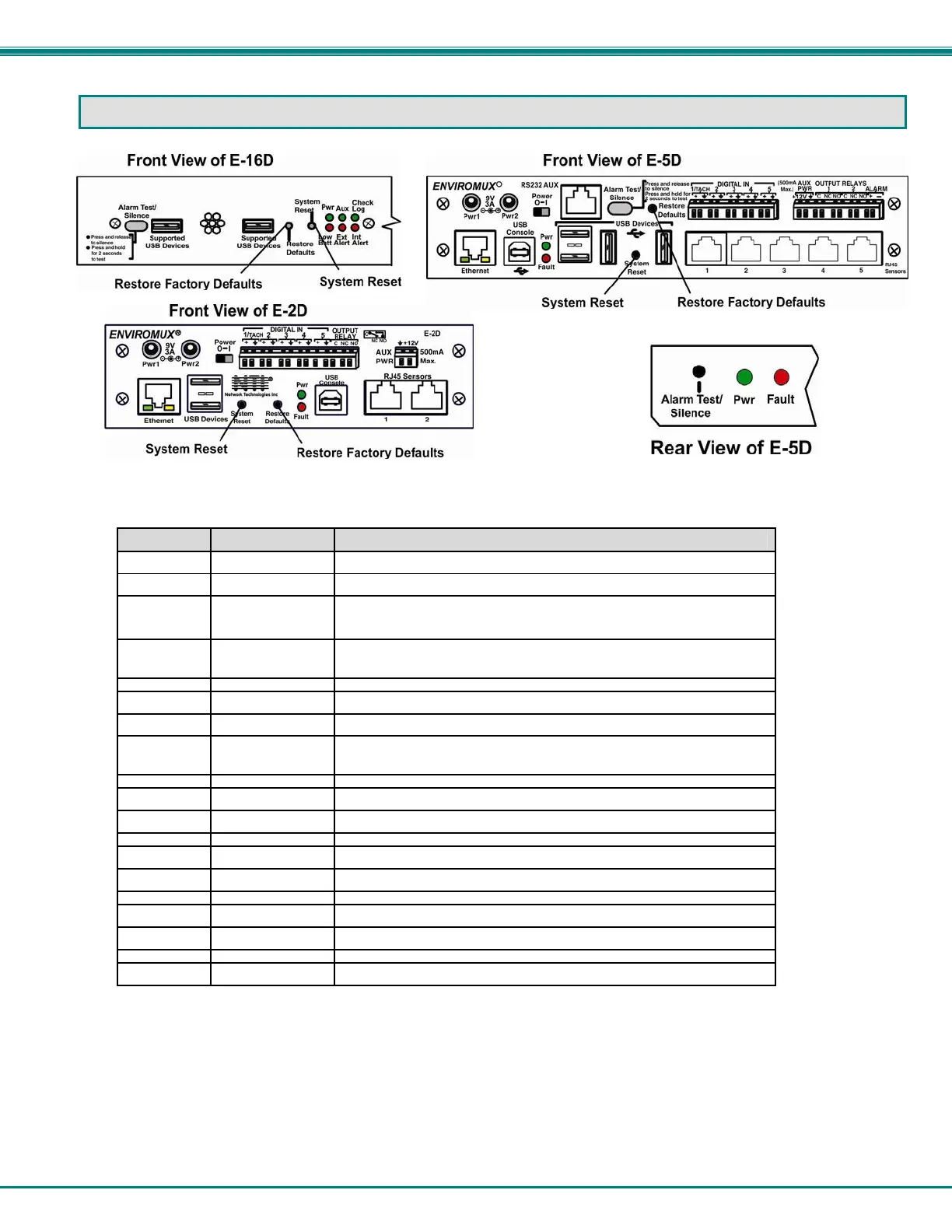

Figure 134- Front panel
Front Panel LED Status Chart
LED Label Status Meaning
Pwr OFF No Power
Solid ON AC Power is ON
Blinking slowly
(once /second)
AC Power has failed, Battery backup (pg. 120) is ON
(The LED will not blink if the unit is powered OFF by the switch.)
Blinking rapidly Discovery Tool (pg. 28) is in use and communicating with the
ENVIROMUX
Low Batt OFF Battery is OK, AC power is ON
Solid ON Battery is below 12V and charging (no action required)
Blinking Battery has been disconnected (battery is below 10.7V), requires
attention, contact NTI
Check Log OFF No new messages in Data Log since last viewing
ON New message in Data Log-not an alert
Int Alert OFF No new alert message in Event Log re: internal sensors
ON New alert message in Event Log re: internal sensors
Ext Alert OFF No new alert message in Event Log re: external sensors
ON New alert message in Event Log re: external sensors
Fault ON A sensor has gone out of range of a configurable threshold
Note: When power is first applied to the E-2D or -5D, both the Power LED (green) and Fault LED (red) will illuminate for
the first 30 seconds of the boot process. After this the fault LED will turn OFF until a sensor alarm is generated which
will turn the fault LED back ON.
System Reset Button
A reset button is located on the front of the ENVIROMUX (see Figure 134). The button can be used to reboot/restart the firmware
of the ENVIROMUX. Pressing this button supersedes the use of the power on/off switch and battery backup to allow the firmware
to easily reboot in the event of a system lockup. To activate a reset, momentarily press the button with a pen or other small
pointed object. The ENVIROMUX will reboot and be ready for login within its usual start-up time period.
