NTI ENVIROMUX Series User Manual

NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
20

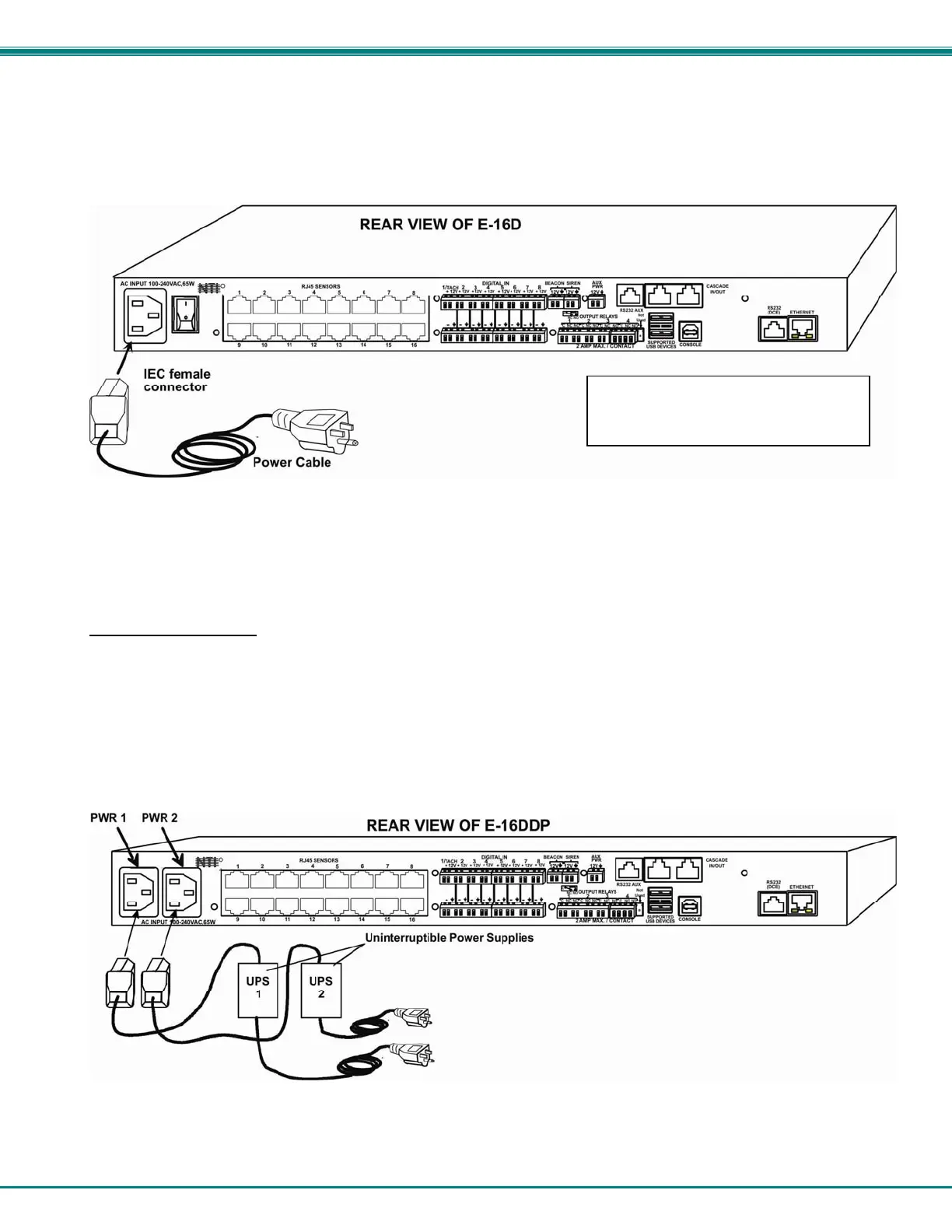

Power Connection-E-16D
Connect the power cord supplied to the IEC connector on the rear of E-16D. Plug the other end into AC mains and use the
switch to power ON ENVIROMUX.
Figure 18- Connect the power cord
Dual Power Option
The E-16DDP has two IEC connectors on the rear, for connection to two separate power sources. If the power source connected
to “PWR 1” fails, the ENVIROMUX will automatically and without interruption switch over to the power source connected to “PWR
2” before switching to the battery backup (page 120).
Note: If only one power source is used, it should be connected to “PWR 1”.
Note: The power ON/OFF switch is located on the front panel of ENVIROMUX when two IEC connectors are present.
Figure 19- Power connections for ENVIROMUX with Dual Power Option
Note: The power cord provides an
earth ground connection for the case.
No additional grounding is necessary.

NTI ENVIROMUX Series Specifications

General

Product Type	Environmental Monitoring System
Temperature Range	-40°C to 85°C
Power Supply	12V DC or 24V AC
Network Interface	Ethernet 10/100 Mbps
Alarm Notifications	Email, SNMP
Sensor Types Supported	Temperature, Humidity, Water, Airflow
Power	12V DC or 24V AC
Operating Temperature	-40°C to 85°C
Mounting	Wall or Rack Mount
Communication Interfaces	Ethernet
Data Logging	Yes
Compliance	CE, RoHS
