NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
5

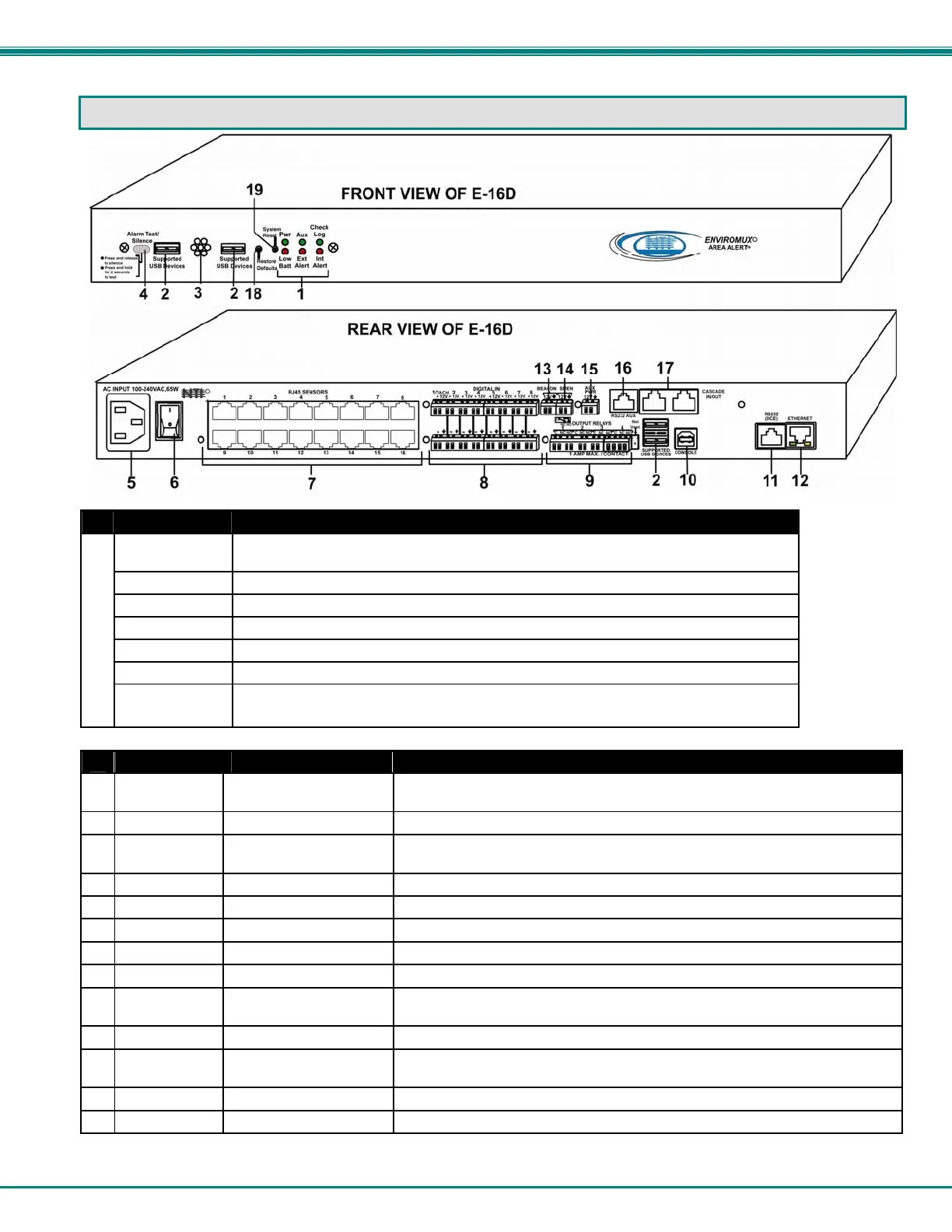

FEATURES AND FUNCTIONS
#
LABEL (LEDs) DESCRIPTION
Pwr- indicates when power to ENVIROMUX is ON (solid ON) and when power failure has
occurred (battery power is ON- LED is blinking once per second)
Low Batt- indicates that the backup battery is running low on power, disconnected, or in failure
Check Log- illuminates when a new entry that is not an alert is added to the log
Int Alert- illuminates when an internal sensor generates an alert
Ext Alert- illuminates when an external sensor generates an alert
Aux- Not used as of this printing
1
Fault-
red — illuminates if a sensor goes out of range of a configurable threshold
(E-2D/5D Only)
See LED Status Chart (page 119) for more on LED indicators.
#
LABEL CONNECTOR DESCRIPTION
2
Supported
USB Devices
USB Type A Female for connection of supported USB 1.1 compatible devices (USB modem or flash
drive for logging data)(see more information on pages 17 and 121)
3
None None Opening for humidity sensor to sense
4
Alarm
Test/Silence
Button Used to test or silence the alarm connected to the siren terminals
5
--- IEC Connector for connecting the power cable (see also “Dual Power Option” on page 20)
6
--- Power Switch used to turn the power to the ENVIROMUX ON/OFF
7
RJ45 Sensors RJ45 female connectors for attachment of various sensors
8
Digital IN Terminal block connection block for wired sensors (2-to-4 wire)
9
Output Relays Terminal block connection block for devices to be controlled in the event of alerts
10
Console USB Type B female
connector
For connecting USB cable for serial connection of a terminal to control the
system
11
RS232 (DCE) RJ45 female connector Alternative port for RS232 serial connection of a terminal to control the system
12
Ethernet RJ45 female connectors for connection to a Local Area Network (LAN) for remote configuration,
monitoring, and control
13
Beacon Terminal block for two-wire connection of visual indication of alarm (page 13)
14
Siren Terminal block for two-wire connections of audible indication of alarm (page 13)
