Multi-function sensor
(see page 35)
Summary Page
The Summary Page displays the data for all categories of monitored items:
Category Description
Internal Sensors there are three inside the ENVIROMUX
Sensors sensors that connect to the RJ45 connectors
Digital Inputs sensors that connect to the terminals "Digital In"
IP Devices IP Addresses that can be monitored by ENVIROMUX
IP Sensors sensors connected to E-MICRO that are being monitored
SNMP Sensors Monitored SNMP-based sensor conditions
Output Relays Relays that open or close depending on alert status
Remote Digital Inputs Sensors connected to E-DI16DO(R)16 Digital Input/Output Expanders (page 51)
Remote Output Relays Status of output relays on E-DI16DO(R)16 Digital Input/Output Expanders
Power Supply Indicates the status of the power supply(s)
Smart Alerts
Displays the status of each Smart Alert configuration (page 102) and provides link to
respond when triggered
To see the settings of each sensor, click on the link in the description column for the desired sensor. Click on the browser's Back
button to return to the summary.

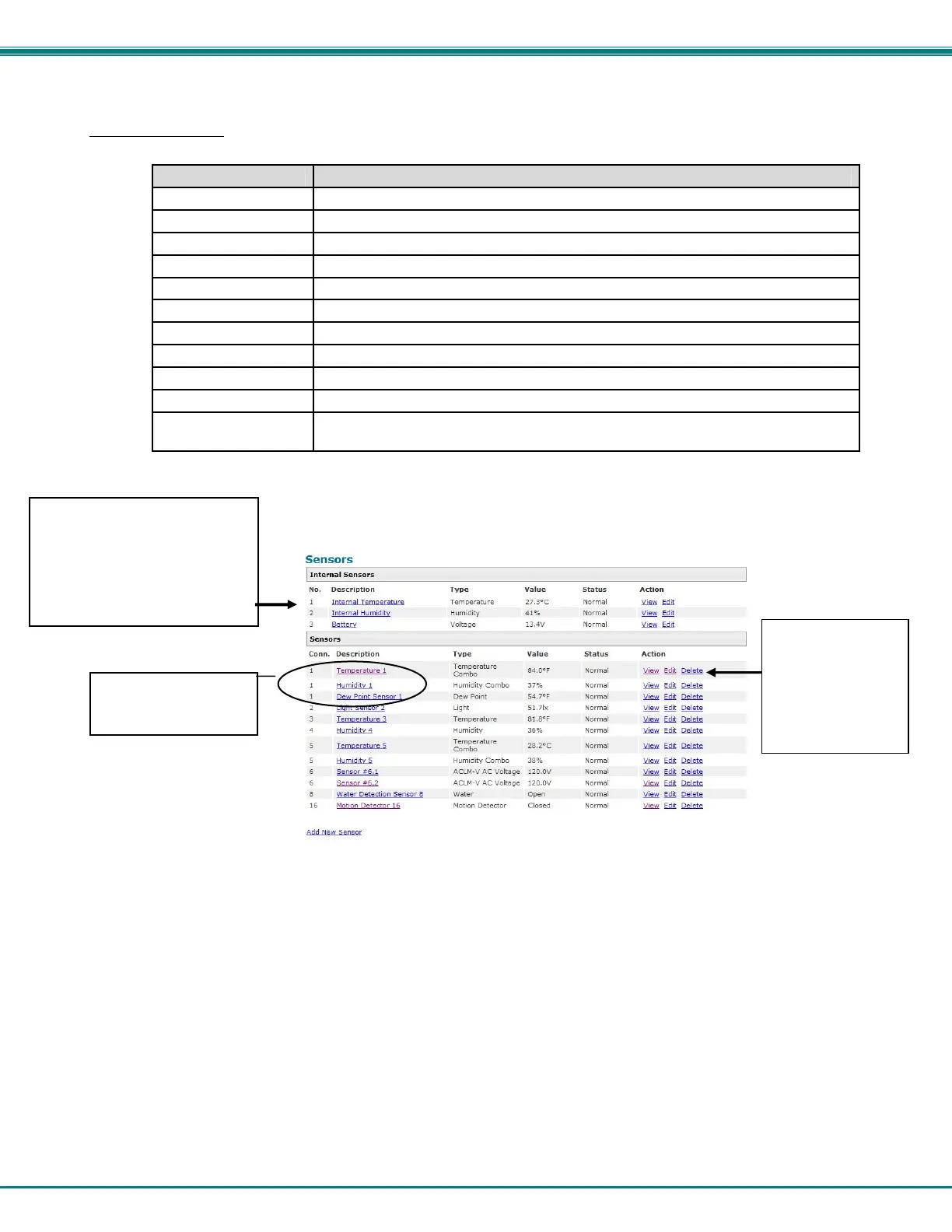

Figure 30- Summary Page
Note: The E-16D / E-5D internal sensor is not intended to measure room temperature/humidity. This sensor measures the
environment inside the metal case which is affected by the heat generated by the power supplies as well as the amount
of airflow moving through the unit. Typically this sensor will read 3-8˚C (37-46˚F) above room temperature.
o delete a sensor
from this list, select
“Delete”. A pop-
up confirmation
window will appear
before removal
takes place.
Internal sensors measure the
inside of the E-16D/E-5D, not
the environment the
ENVIROMUX is mounted in. As
a result, it typically will read 3-
8˚C warmer than the ambient
temperature.
