NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
46
Specialized Sensors (for E-S420MA-24V Current Sensor Configuration only)
When a E-S420MA-24V Current Sensor is connected to the ENVIROMUX, the summary page will update with two sensor names
of the Type “Current”. Various types of sensors can be connected to an E-S420MA-24V. In order to better define the sensor on
the Summary Page, in SNMP traps, or in an MIB browser, click on the “Edit” link to open the sensor configuration page and
configure the sensor. In the image below, an E-ULT Ultrasonic Level Transmitter has been connected to the Current Sensor
plugged into RJ45 port 3 and configured to be used.

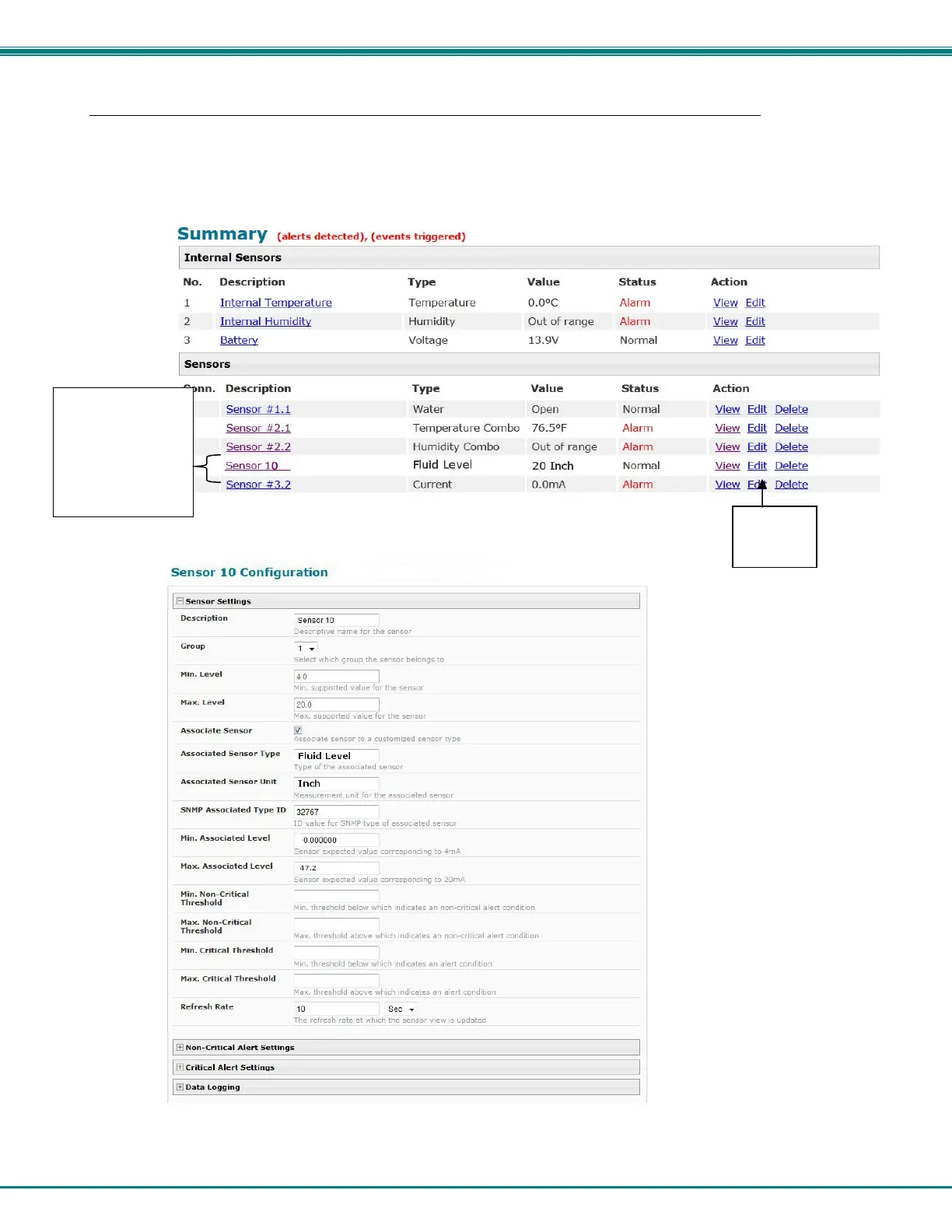

Figure 42- Current sensor added to ENVIROMUX
Figure 43- Configuration of sensor connected to E-S420MA-24V
An E-ULT sensor
is connected to
one input on the
current sensor,
the second input
has not been
configured.
Select
“Edit” to
configure
