4. From the Cascaded Settings page of the Master unit, enter a checkmark for each slave that will be present in the
configuration. This enables the slave and defines the slave sequence (number 1-4) as it will appear on the sensor
summary page.
5. Enter the type of Slave (Ethernet or RS485) to be connected at that sequence number.
6. Either enter the IP address of the Ethernet Slave, or the RS485 address of the RS485 slave.

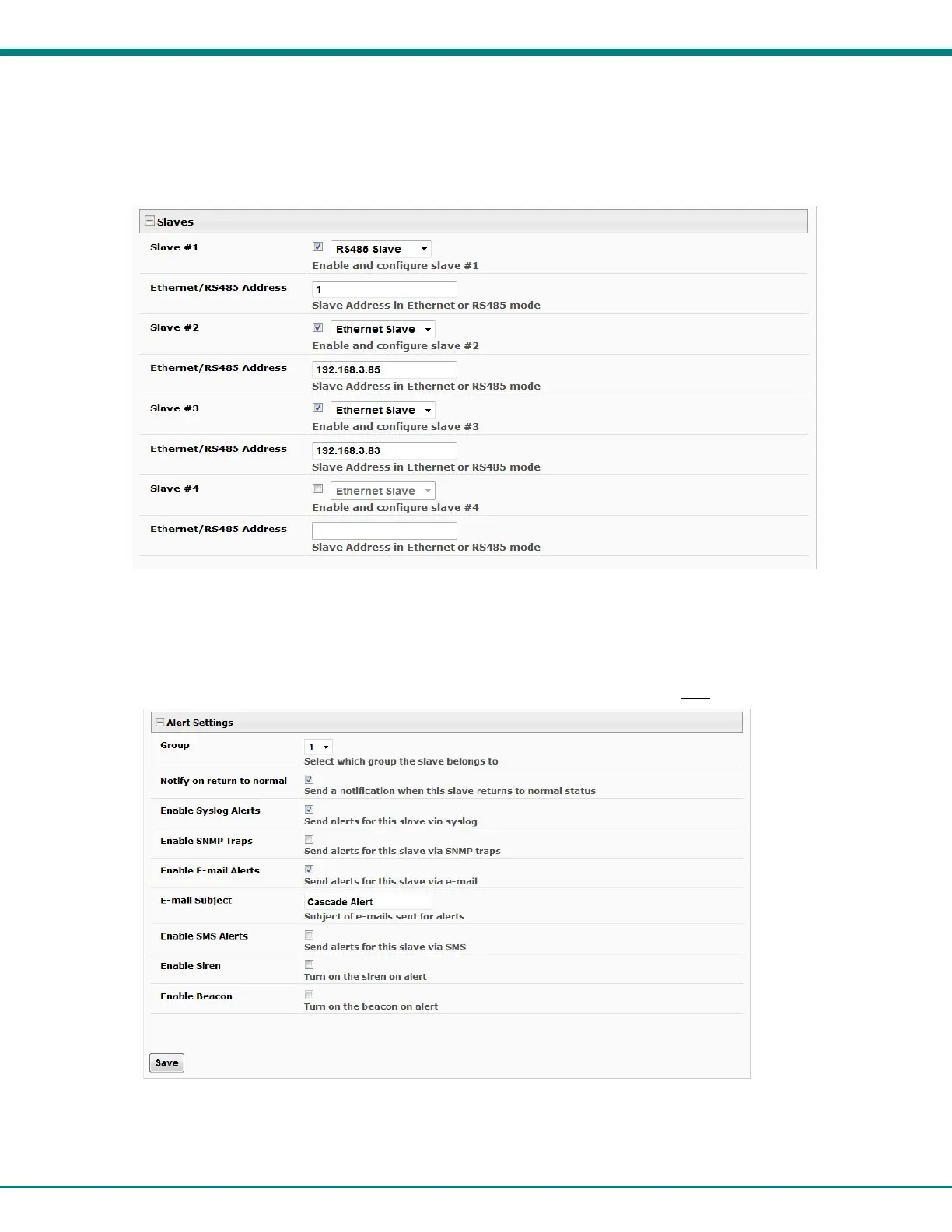

Figure 109- Configure which Slaves will be connected to the Master
7. In the web interface of the Master unit, configure the Alert Settings that will determine how the user will be alerted if
any of the Slave units lose communication with the Master unit. This configuration is only performed in the Master unit.
Figure 110- Apply alert settings to alert for Slave connection loss

NTI ENVIROMUX Series Specifications

General

Product Type	Environmental Monitoring System
Temperature Range	-40°C to 85°C
Power Supply	12V DC or 24V AC
Network Interface	Ethernet 10/100 Mbps
Alarm Notifications	Email, SNMP
Sensor Types Supported	Temperature, Humidity, Water, Airflow
Power	12V DC or 24V AC
Operating Temperature	-40°C to 85°C
Mounting	Wall or Rack Mount
Communication Interfaces	Ethernet
Data Logging	Yes
Compliance	CE, RoHS
