Terminal Connection for RS232
If control via serial connection is going to be used (i.e. using Telnet or SSH), serial control can be achieved using the “USB
Console” port (all models) or the “RS232” port (E-16D only) or “RS232 AUX” port (E-5D only). A terminal connection is
accessible by the user “root” only.
To use the “RS232” port
, connect one end of a CAT5 patch cable (supplied) to the port labeled “RS232” on the rear of the
ENVIROMUX. Plug the other end of the CAT5 cable into an RJ45-to-DB9F adapter (supplied), and connect the adapter to the
RS232 port on the control terminal. Follow the instruction in the Serial Control Manual
for configuration and use of the Serial
Control feature.

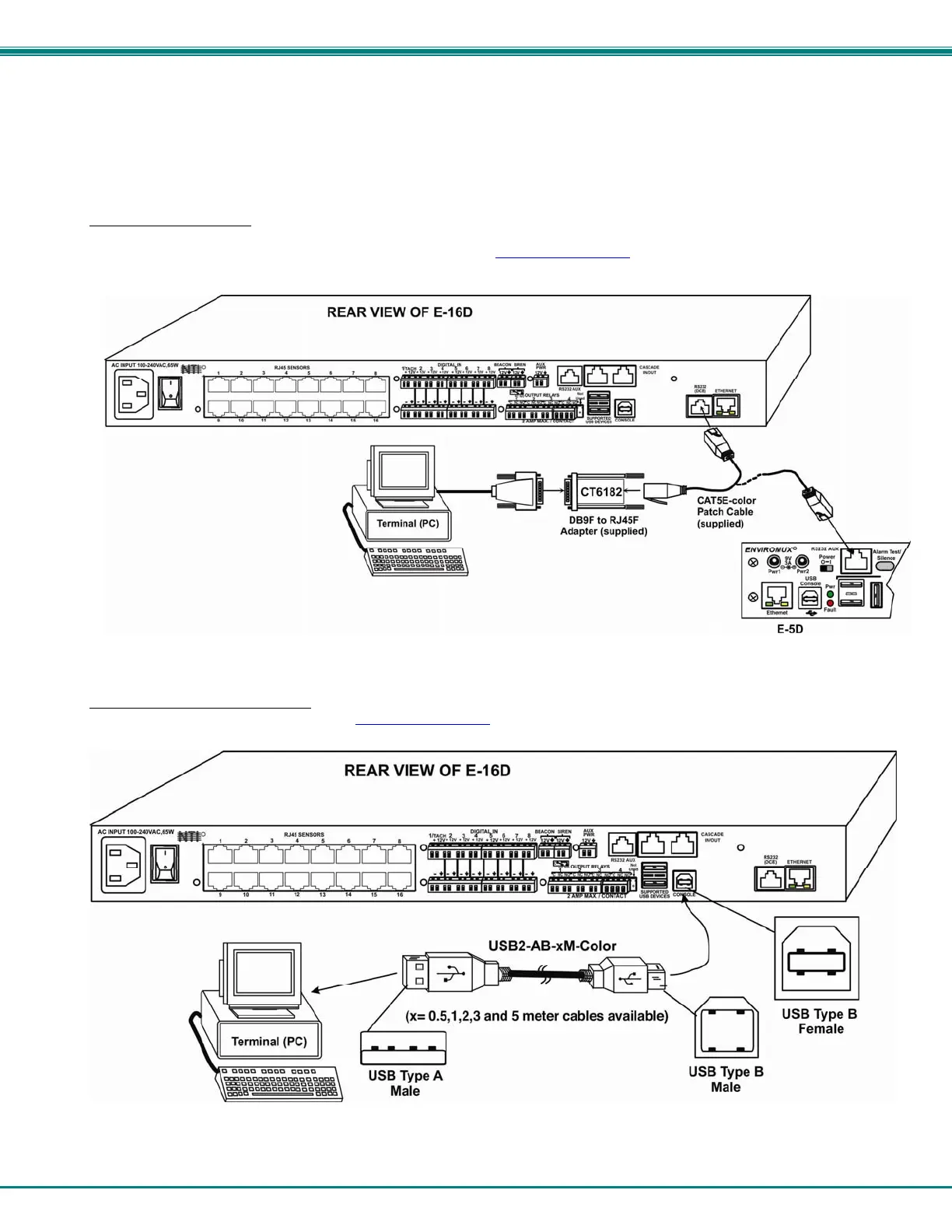

Figure 14- Connect a terminal for direct RS232 serial communication
To use the USB “CONSOLE” port, connect a USB cable (2 meter cable supplied) between the ENVIROMUX and your PC.
Then install the drivers as described in the Serial Control Manual.
Figure 15- Connect a terminal using USB Console port

NTI ENVIROMUX Series Specifications

General

Product Type	Environmental Monitoring System
Temperature Range	-40°C to 85°C
Power Supply	12V DC or 24V AC
Network Interface	Ethernet 10/100 Mbps
Alarm Notifications	Email, SNMP
Sensor Types Supported	Temperature, Humidity, Water, Airflow
Power	12V DC or 24V AC
Operating Temperature	-40°C to 85°C
Mounting	Wall or Rack Mount
Communication Interfaces	Ethernet
Data Logging	Yes
Compliance	CE, RoHS
