45762101TH Rev.1
4-10
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

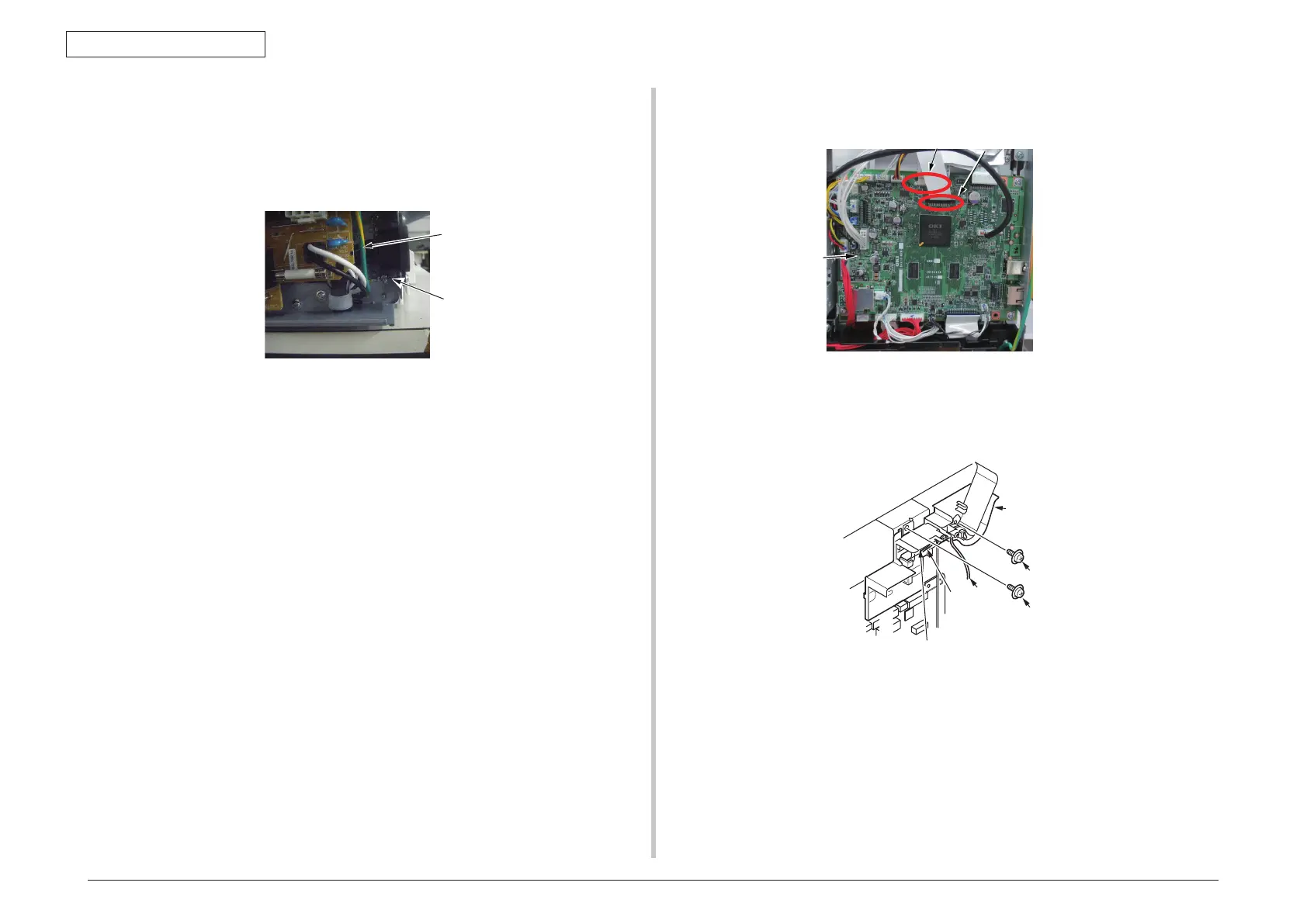

4.2.8 Scanner unit
(1) Remove the Cover Side (L) and the Cover Side (R). (Refer to 4.2.1 and 4.2.2)
(2) Remove the Cover Stay (R) and Cover Stay (L). (Refer to 4.2.5)
(3) Remove the Screw (Silver)
, and remove the FG-Cable
from Guide
Cable
.
(4) Remove the Plate Shield (CU) .(Refer to 4.2.1 and 4.2.3)
(5) Disconnect the FFC
and the Cable
from the CU/PU Board
.
(6) Remove the Screw (Silver)
and the Screw (Black)
, and remove the
FG Film (FFC)
and the Cable
from the Guide Cable
.
