4.REPLACEMENT OF PARTS
①
⑤
④
①
②
③

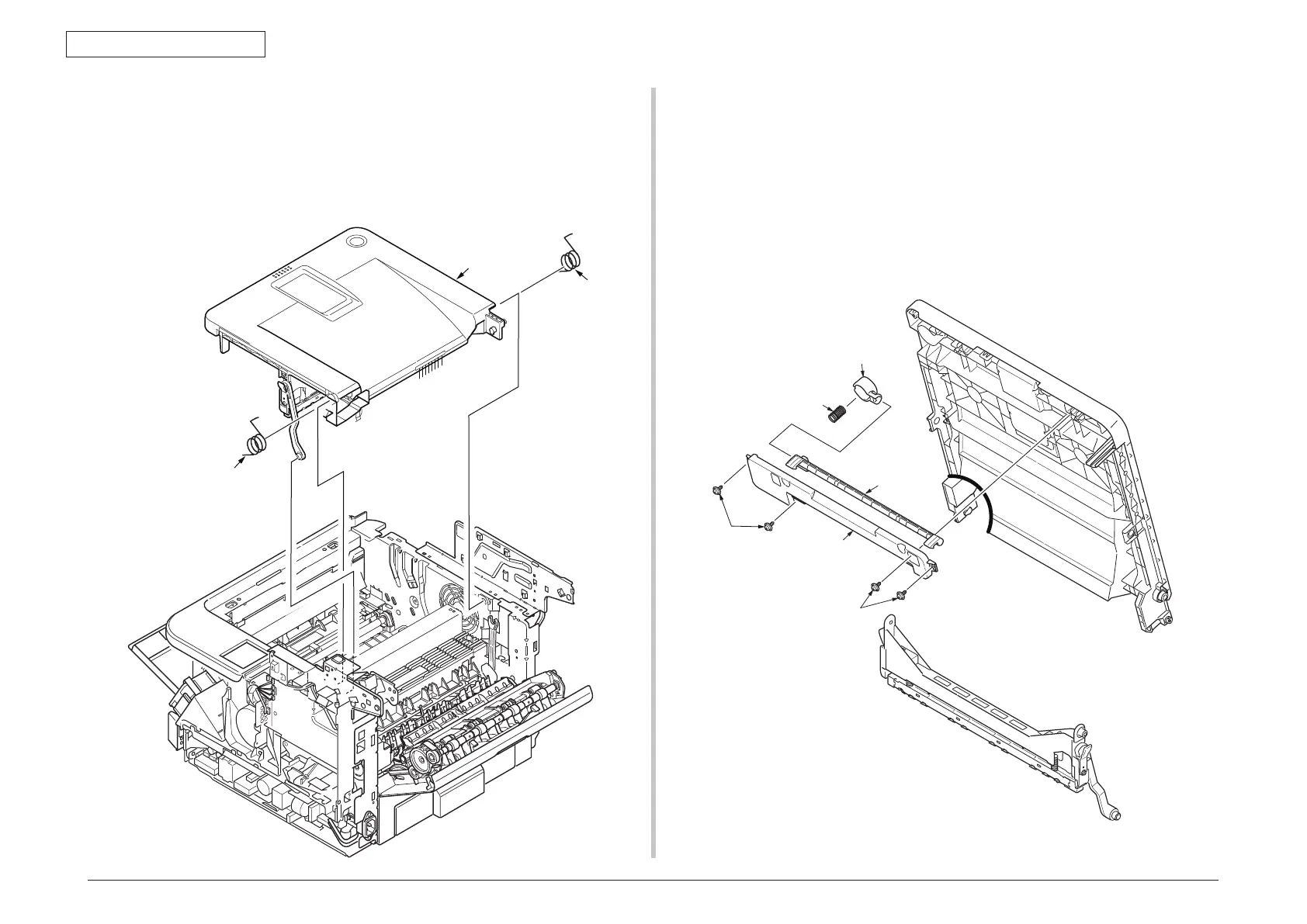

4.2.17 Stacker Cover
(1) Remove the Cover Assy Stacker. (Refer to 4.2.16)
(2) Remove the LED Head. (Refer to 4.2.10)
(3) Remove four screws (Black)
①
, remove the Cover-Lever
②
.
(4) Remove the Lever-Lock-Top
③
, Lever-Lock-Button
④
. Remove the
Spring-Lever-Top
⑤
.
(5) Installing is performed by the reverse procedure with removing.
(7) Remove the Cover Assy Stacker
⑥
and two Spring-Torsion-ST
⑦
,
⑧
.
(8) Installing is performed by the reverse procedure with removing.
Note!
1. Beware of not to touch the DC motor inattentively (Do not rotate moter).
2. Clamp together the screw and the FG-Film.
⑥
⑦
⑧
