4.REPLACEMENT OF PARTS
4.2.19 MPT Assy
(1) Remove the Cover Side (L) and Cover Side(R). (Refer to 4.2.1 / 4.2.2)
(2) Remove the Cover Front (Top). (Refer to 4.2.6)
(3) Remove the SW Assy. (Refer to 4.2.7)

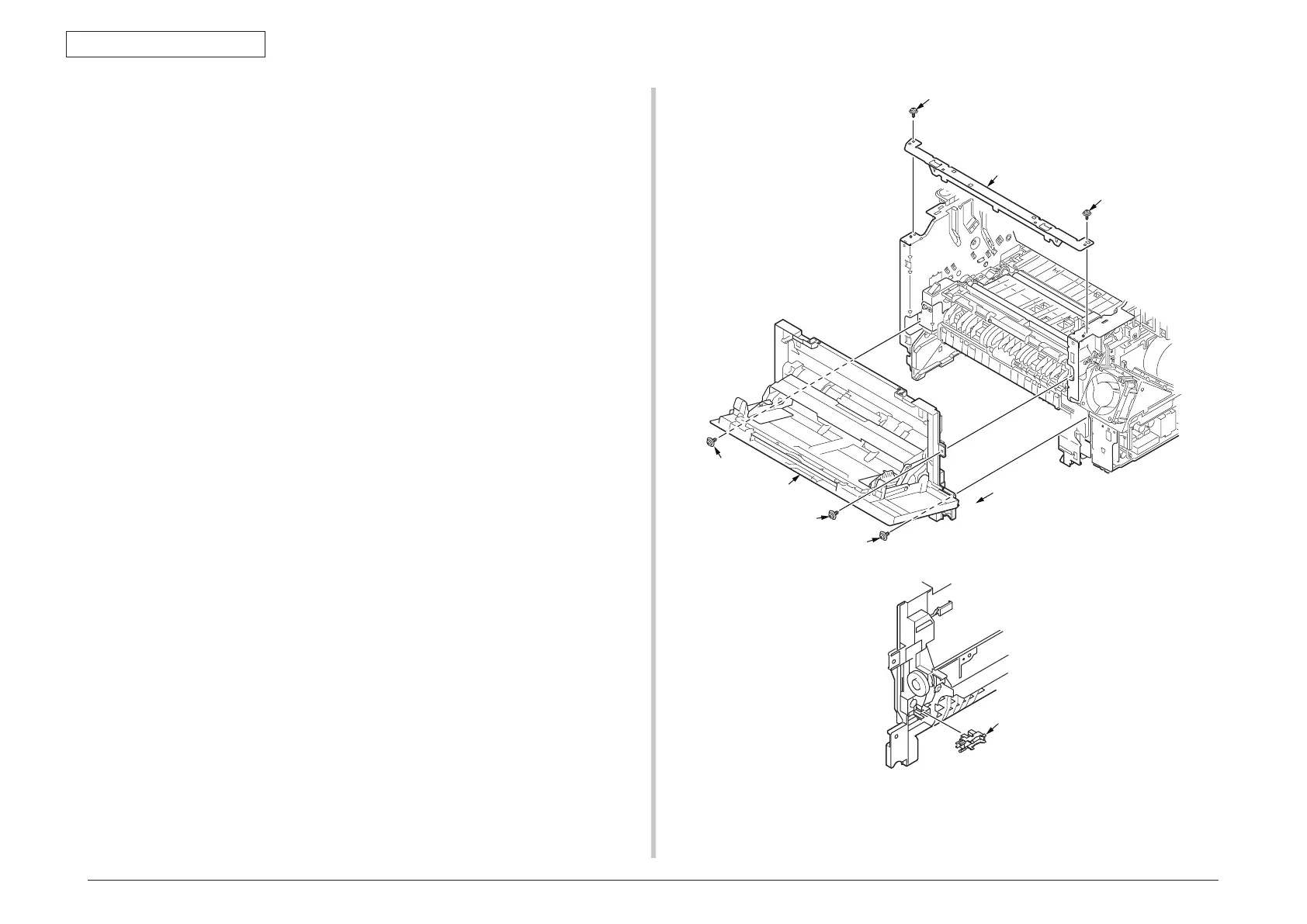

(4) Remove two screws (Silver)
①
. Remove the Plate-Front
②
.
(5) Remove two screws (Silver)
③
. Remove the screw (Black)
④
.
(6) Remove MPT Assy
⑤
.
(7) Remove the Photo Interrupter
⑥
.
(8) Installing is performed by the inverse procedure with removing.
Note!
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
