4.REPLACEMENT OF PARTS
4.3 Lubrication point
Class
Amount of grease(cc)
W(mm)
Sample
SABC DEF
0.0005 0.003 0.0050.010.030.05 0.1
1.24 2.25 2.67 3.37 4.86 5.76
W
7.26
This subsection indicates the lubricating points of the printer. Conversely, it means that
any other parts than the specified lubricating points must not be lubricated.
There is no need to lubricate in the midst of a disassembling job. However, if lubricating
oil has been wiped off, supply the specified oil.
Lubricating work
(1) Symbols and names of oils
EM-D110 : MOLYKOTE EM-D110 (No : 44594501)
EM-30LP : MOLYKOTE EM-30LP (No : 44498501
GE-334C : FLOIL GE-334C (No : 41823301)
SF-133 : HANARL SF-133

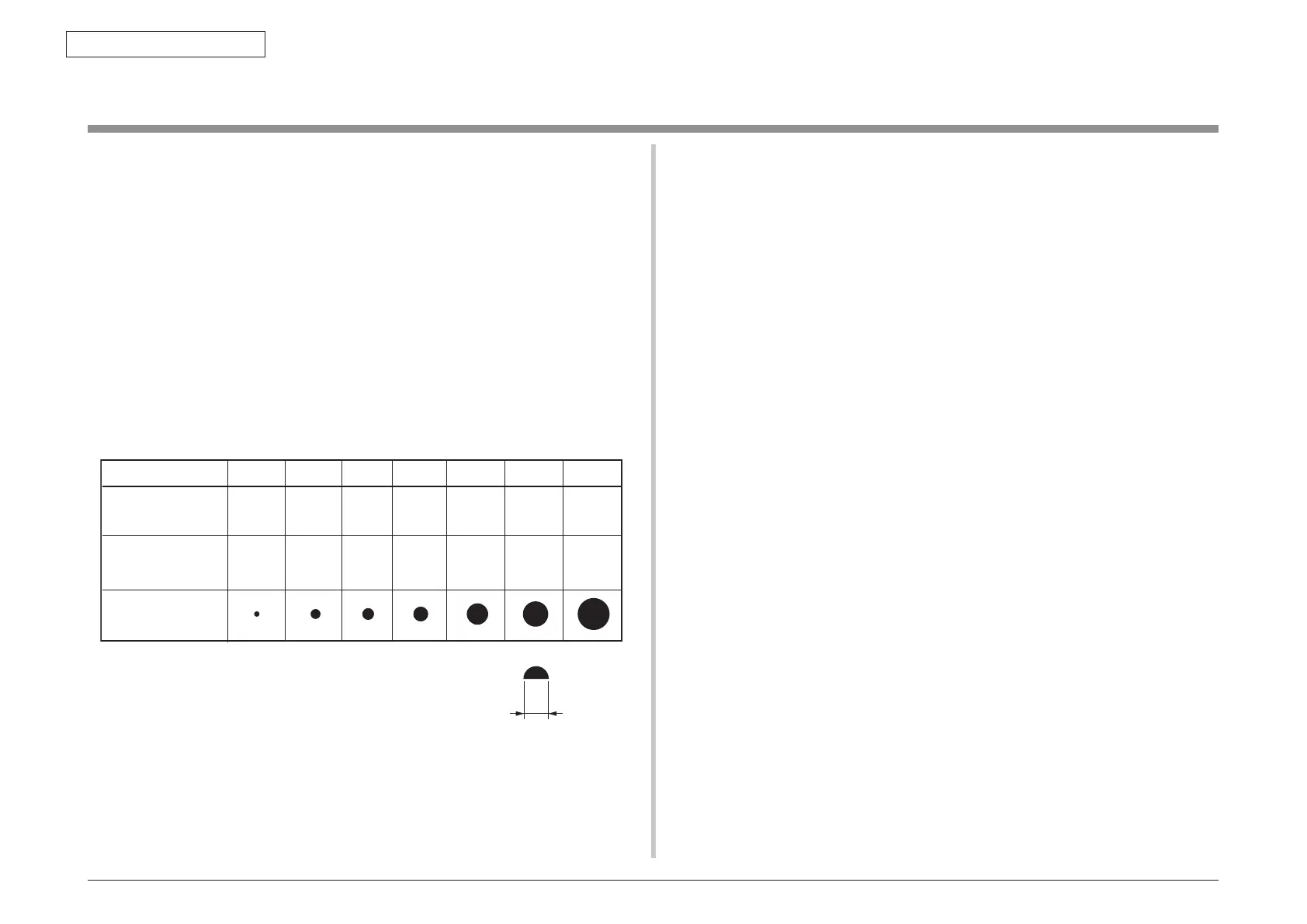

(2) Boundary samples of grease
