Oki MB472w - Roller-Assy-Eject-ADF

45762101TH Rev.1
4-69
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
⑦

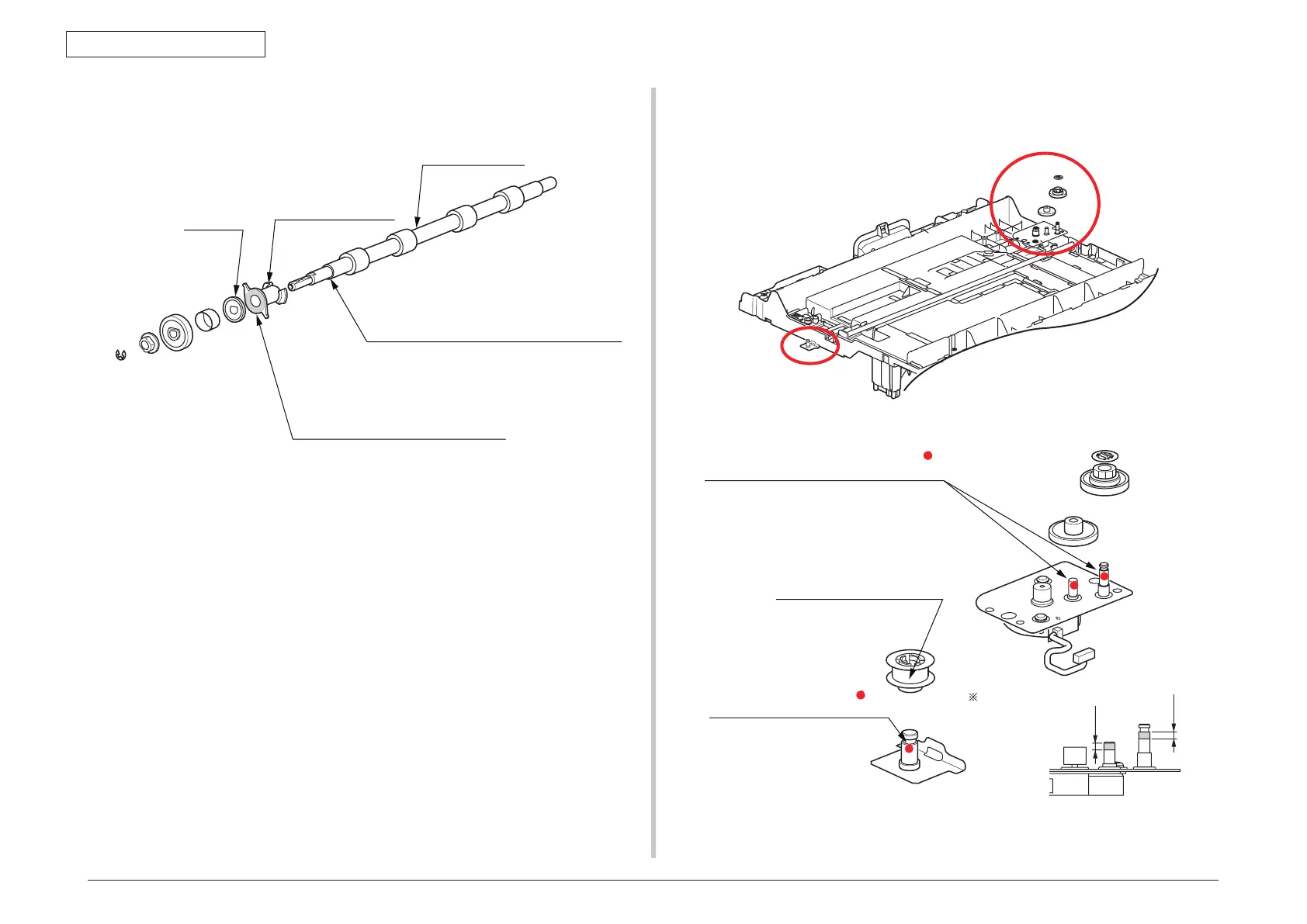

Roller-Assy-Eject-ADF
⑧
Frame-Assy-FB
EM-30LP Class A
Apply a normal amount of MOLYKOTE
(EM-30LP) to slide portion of Lever-Separator-
EX and Roller-Eject-ADF.
Lever-Separator-EX
Washer-A
Roller-Eject-ADF
EM-30LP Class A
Apply a normal amount of MOLYKOTE
(EM-30LP)to the hatched area.
(2.5)
(2.5)
EM-30LP Class A It is
application with harpoon coat
regular in shaft upper part ( )
It is application with the first
Without the internal perimeter
surface grease adhesion
EM-30LP Class A It is application with
harpoon coat regular in shaft upper part ( )
It is application at once to two places
The shaft upper part
1 )-1 44596402 Motor-Assy
1)-2 4522401PP Plate-Pulley-Caulking
