45762101TH Rev.1

4-14

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

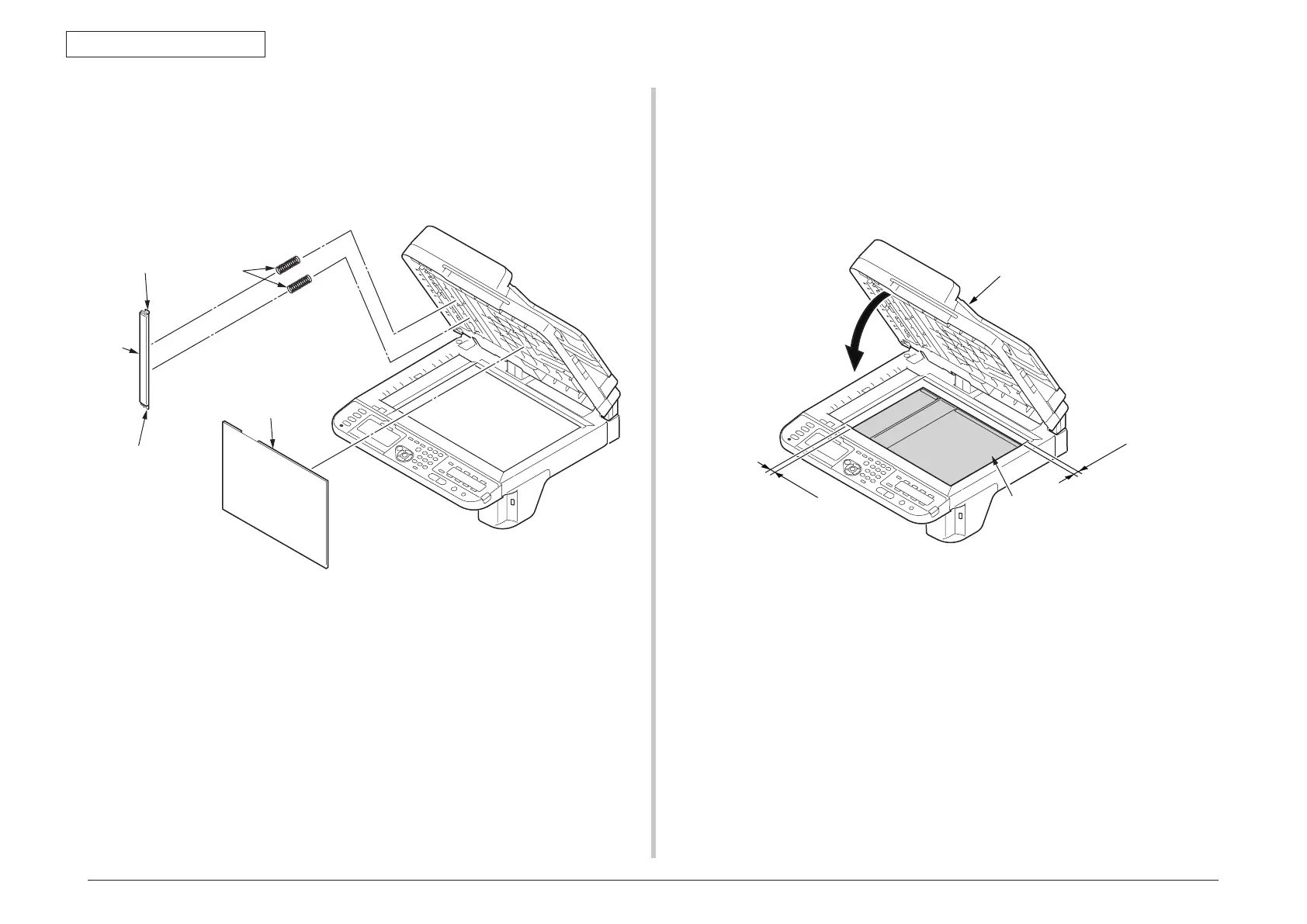

4.2.8.3 Sheet-document / Paper-weight-assy / Spring-PW-ADF

(1) Open the ADF-unit.

(2) Remove the sheet-document

①

(3) Remove two claws to remove the paper-weight-assy

②

and two spring-PW-

ADF

③

Claw

①

③

②

ADF-unit

①

(1) Degrease the afﬁx area of ADF-unit.

(2) Remove the peeling-off sheet.

(3) Set the sheet-document

①

(see the ﬁgure below).

(4) Close the ADF-unit.
