Oki MB472w User Manual

45762101TH Rev.1
4-18
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

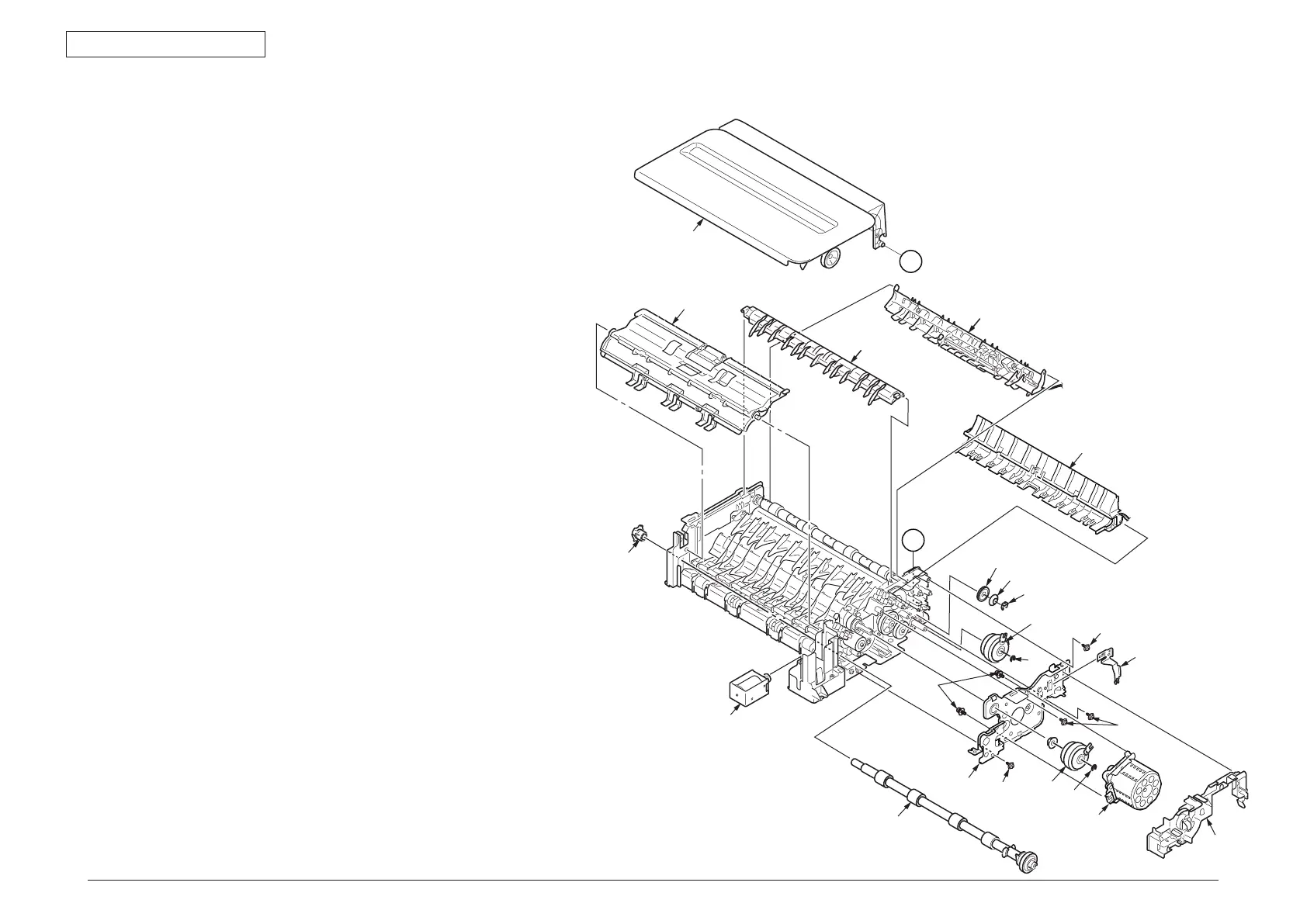

4.2.8.6 Cover-assy-top-ADF / Guide-assy / Roller / Motor / Clutch /
Solenoid
(1) Remove the cover-assy-top-ADF
①
.
(2) Remove the guide-assy-A
②
.
(3) Remove the guide-B
③
.
(4) Remove the guide-cable
④
.
(5) Remove the guide-assy-C
⑤
.
(6) Remove the guide-assy-D
⑥
.
(7) Remove the E-type retaining ring
⑦
and remove the clutch
⑧
.
(8) Remove the plate-FG-S
⑨
.
(9) Remove the E-type retaining ring
⑩
and remove the clutch
⑪
.
(10) Remove four screws (black)
⑫
and remove the plate-motor-ADF
⑬
.
(11) Remove two screws (silver)
⑭
and remove the Motor-KTL40M
⑮
.
(12) Remove t he bearing-shaf t
⑯
and remove the roller-assy-eject-ADF
⑰
.
(13) Remove the ret ainer-4
⑱
, spring
⑲
and washer-A
⑳
.
(14) Remove the solenoid
󰼼
.
A
A
⑦
①
②
③
④
⑤
⑥
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑯
⑰
⑱
⑲
⑳
㉑
⑫
⑫
