Oki MB472w User Manual

45762101TH Rev.1
4-21
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

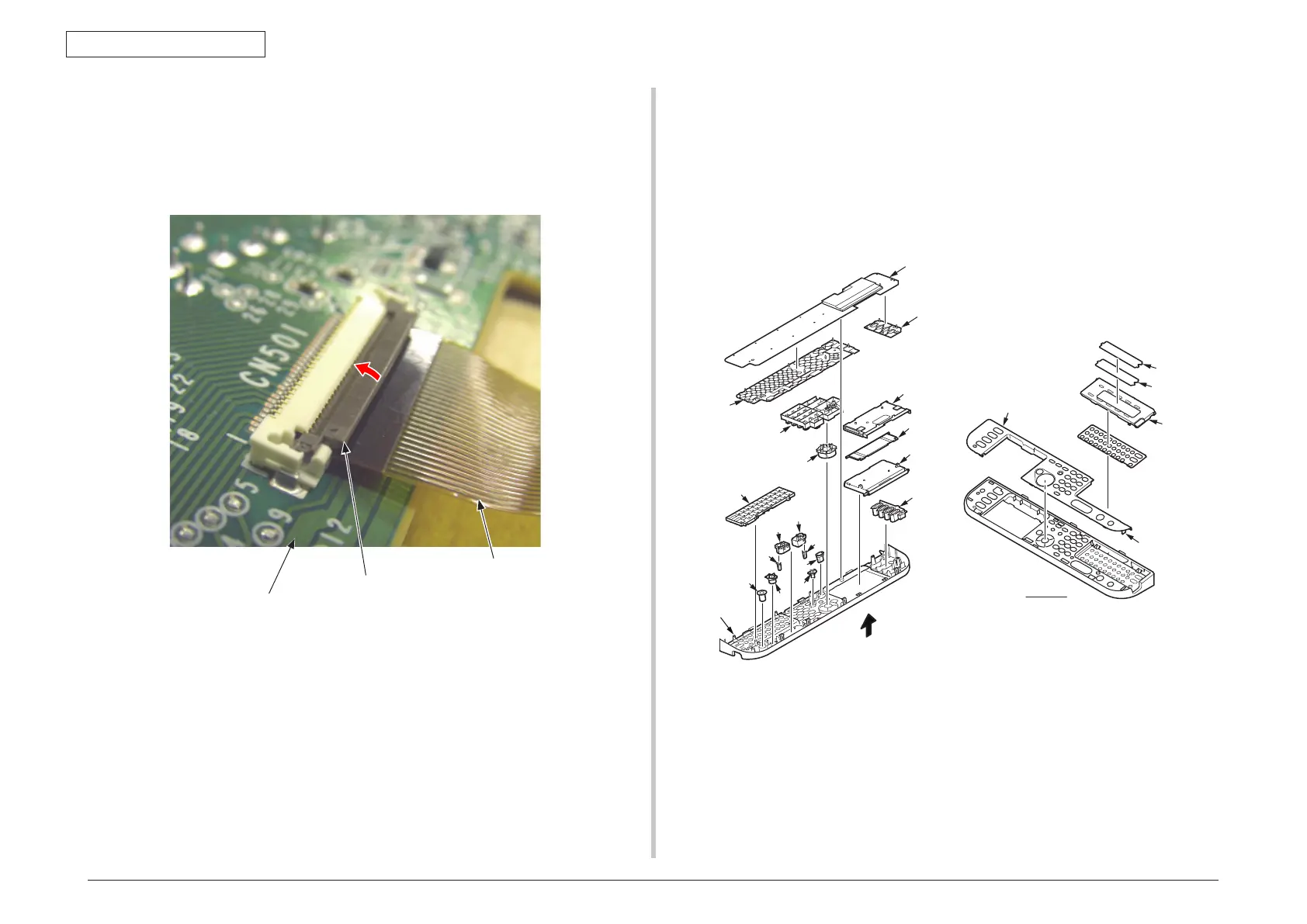

4.2.8.11 Frame-OP-panel / OPE board
(1) Remove eight claws to remove the OPE board (OPM-2)
①
.
(2) Remove the LCD cable, while part A is raised in the direction of arrow.
Method of removing LCD cable
②
④
⑤
①
③
㉑
㉒
⑳
⑲
⑥
⑯
⑰
⑱
⑧
⑩
⑪
⑫
⑬
⑮
⑭
⑨
⑦
8 × cla
ws
ViewA
ViewA
8 × Latches
(4) Remove the button and lens
④
to
⑮
.
(5) Remove the cover bottom
⑯
and cover-cable
⑰
and LCD-assy
⑱
.
(6) Remove eight latehes to remove the cover-op-panel
⑲
.
(7) Remove the cover-KB-assy
⑳
.
(8) Remove the film-one-touch
󰼼
and sheet-one-touch
󰽇
.
(3) Remove the rubber-pad (R)
②
and rubber-pad (L)
③
.
Part A
LCD cable
①
