Oki MB472w - Hinge-Assy-L; Hinge-Assy-R

45762101TH Rev.1
4-15
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

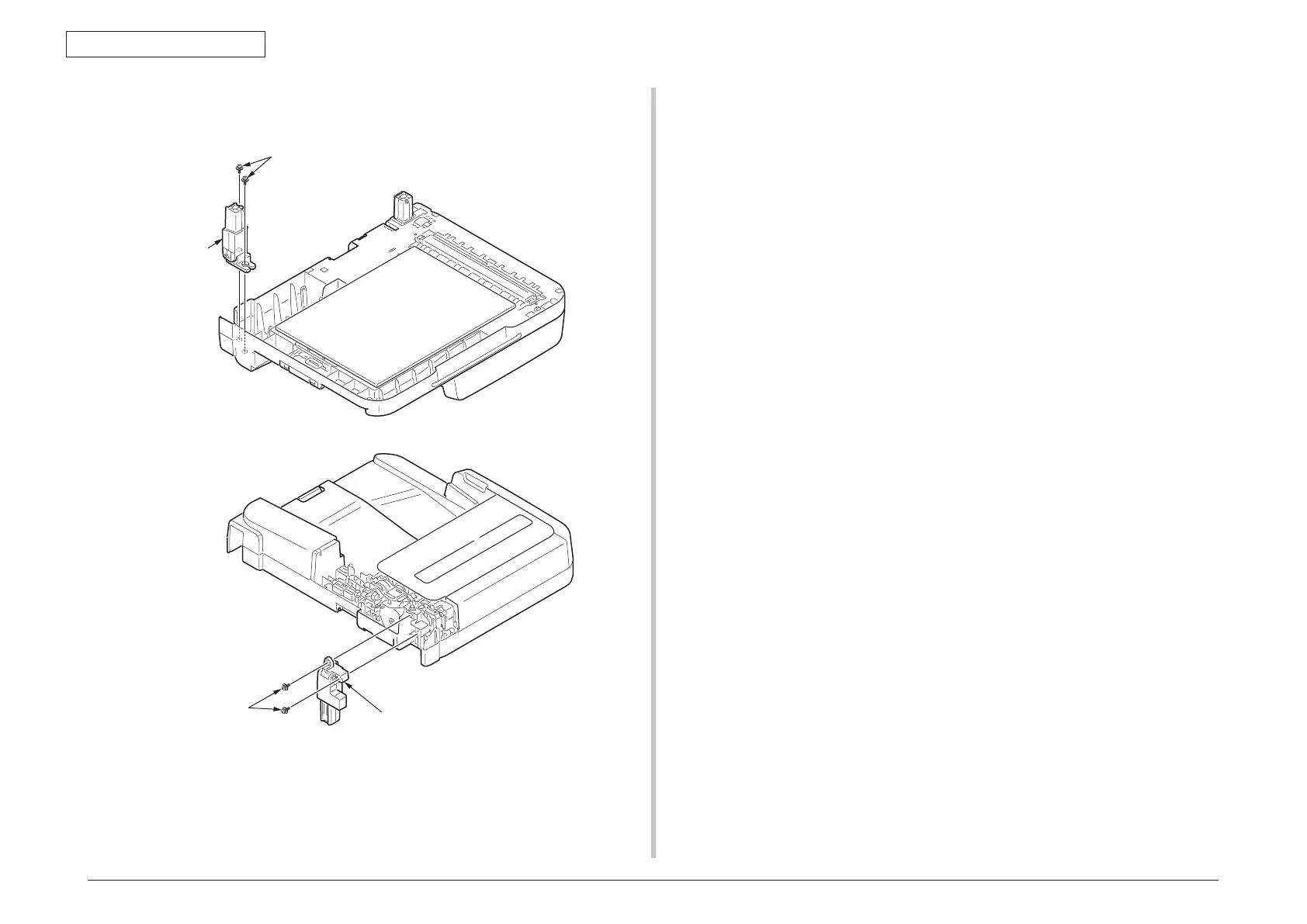

4.2.8.4 Hinge-assy-L / Hinge-assy-R
(1) Remove two screws (L=10mm)
①
and remove the hinge-Assy-R
②
.
L=10mm
②
①
(2) Remove two screws (L=10mm)
④
and remove the hinge-Assy-L
⑤
.
L=10m
m
④
⑤
