45762101TH Rev.1

4-26

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

4.2.8.15 Frame-assy-hopping-ADF

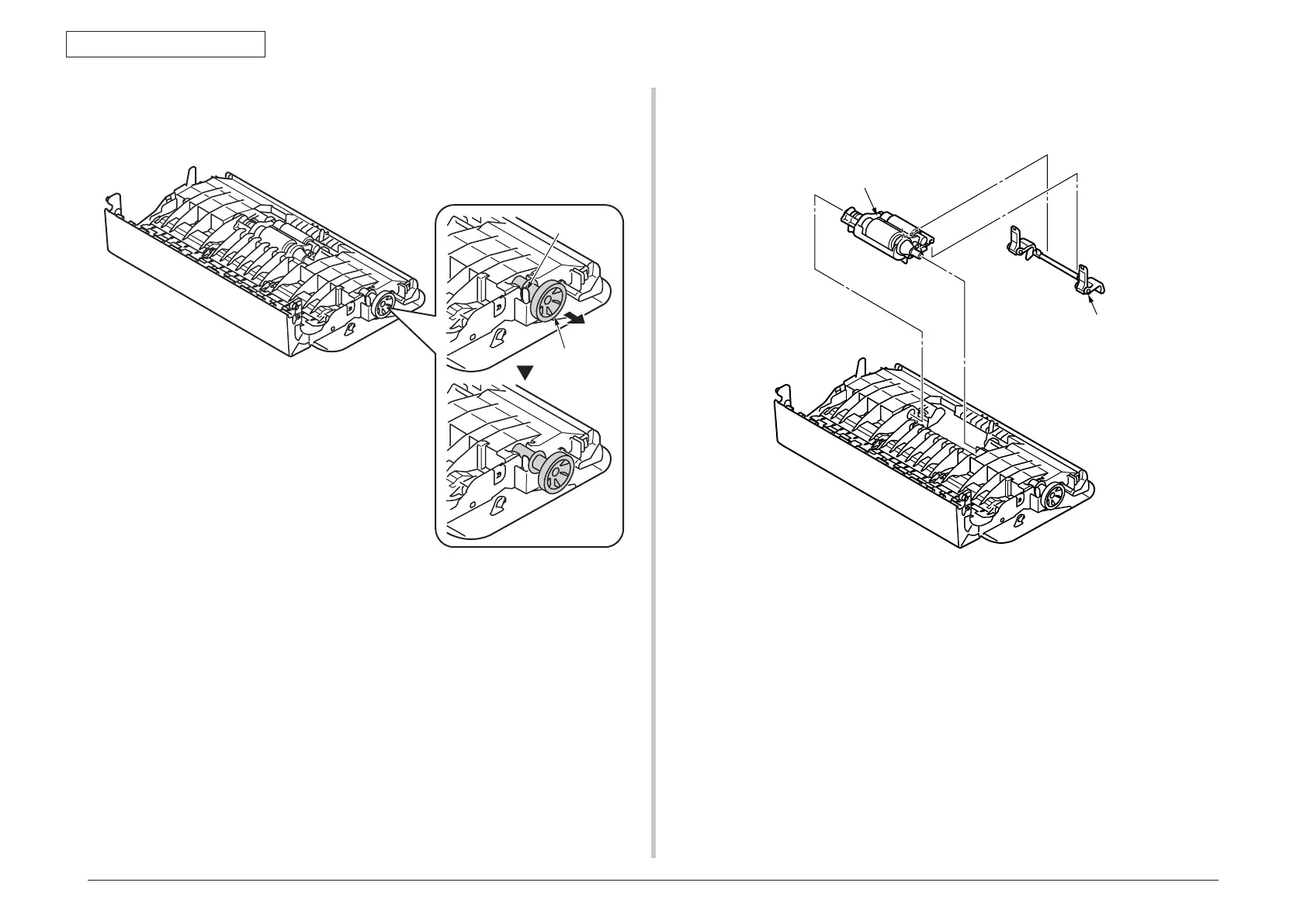

(1) Slide the Gear-shaft-hopping while opening the stopper.

Stopper

Gear-shaft-hopping

(2) Remove the Frame-assy-hopping-ADF

①

and the Stopper-Assy-Gate

②

①

②
