Oki Data CONFIDENTIAL
45762101TH Rev.1
6-15

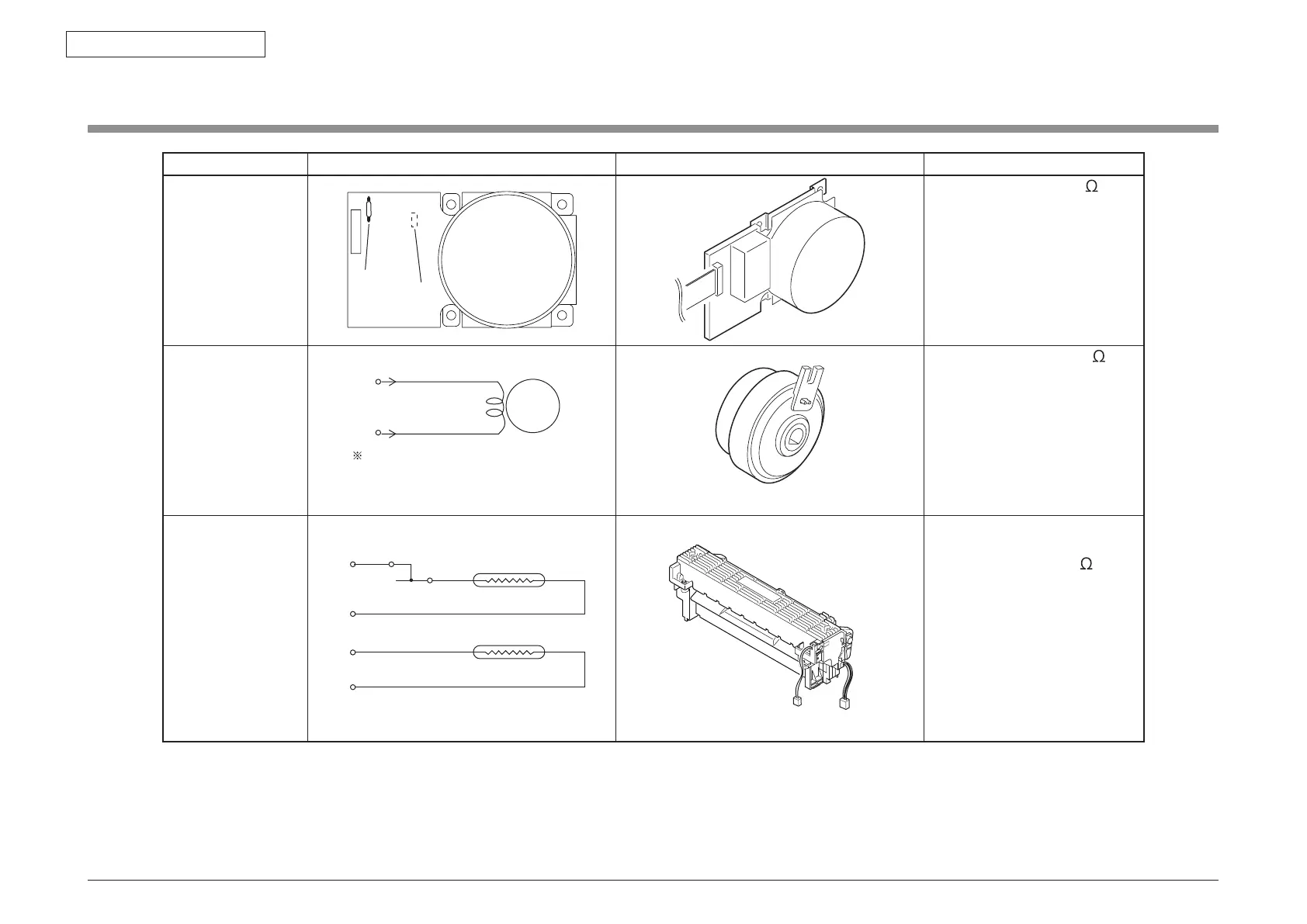

6. CONNECTION DIAGRAMS
6.3 Resistance value
Unit Circuit Diagram Part Diagram Resistance Value
DC Motor
IP2
IP3
Both ends of IP2 and IP3: 1 or less
Clutch
(Hopping)
(Regist)
(MP Tray)
Cable
Cable
Cable Color : Black (Hopping)
: Blue (Regist)
: Yellow (MP Tray)
1
2
C
Between Pin1 and Pin2 : 240
Fuser Assy
1
2
3
4
Thermostat
Heater
Thermistor
Heater
Thermistor
Between Pin1 and 2: Several to to
several tens of ohms
Between pin3 and 4 :360K
At the ambient temperature (25ยบC)
