Oki MB472w User Manual

45762101TH Rev.1
4-44
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

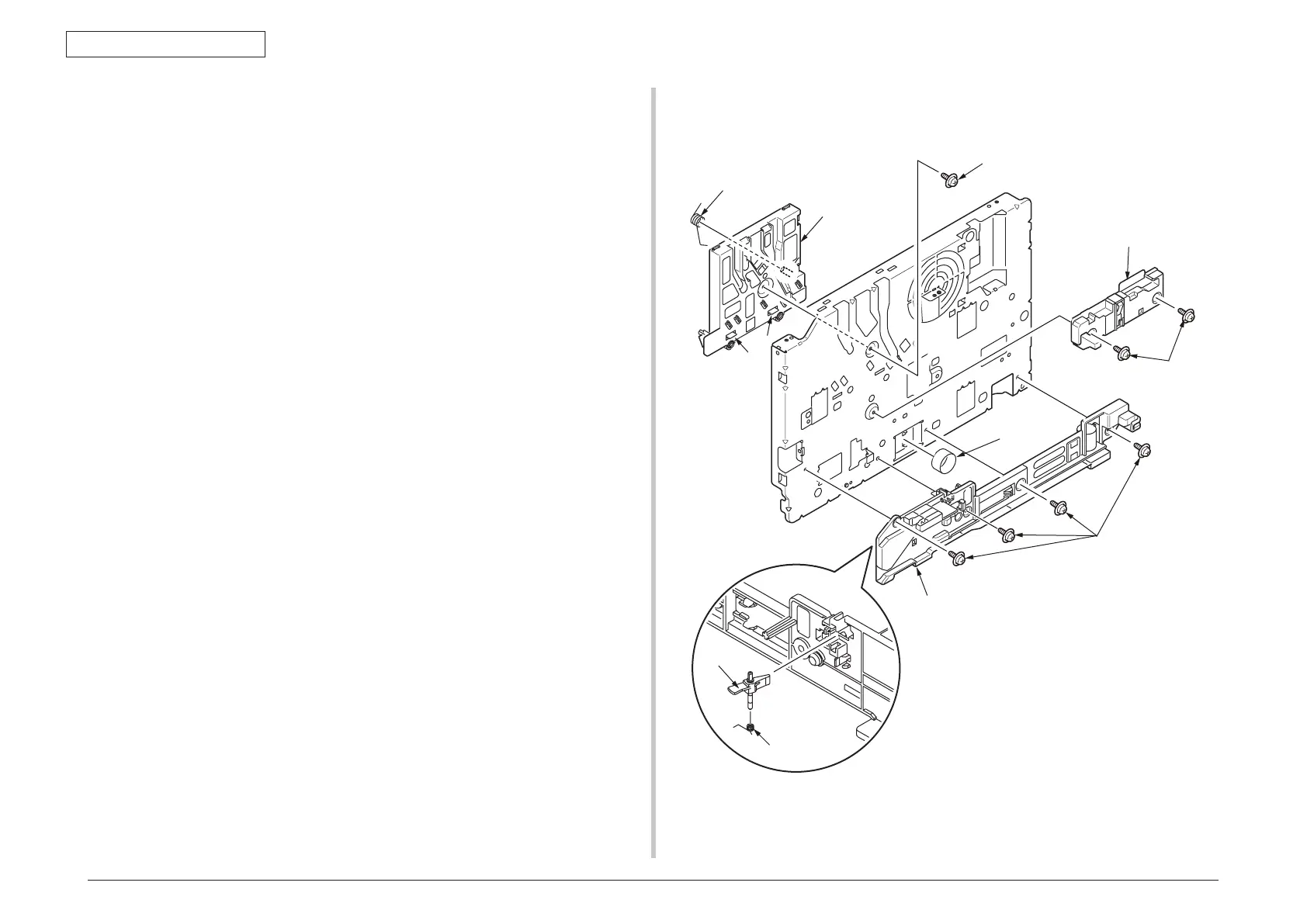

4.2.24 Plate Side L Assy
(1) Separate the Plate Side L Assy. (Refer to 4.2.23)
(2) Remove four screws (Silver)
①
. Remove the Guide-Cassette-L
②
and
Spring-Lock-Cassette
③
.
(3) Remove Lever-Sensor Cassette
④
and Spring-Sensor
⑤
from the Guide-
Cassette-L
②
.
(4) Remove two screws (Silver)
⑥
. Remove the Frame-inner-L
⑦
.
(5) Remove the screw (Black)
⑧
, disengage the two tabs (a and b), and
remove Guide-ID-L
⑨
.
(6) Remove the Spring-ID-Lock-L
⑩
.
(7) Installing is performed by the inverse procedure with removing.
Note!
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
①
⑤
④
②
③
⑥
⑧
⑨
⑩
⑦
a
b

Oki MB472w Specifications

General

Brand	Oki
Model	MB472w
Category	All in One Printer
Language	English
