Oki Data CONFIDENTIAL
45762101TH Rev.1
2-38
2. TROUBLESHOOTING PROCEDURES
Check item Checking Action in case of fail

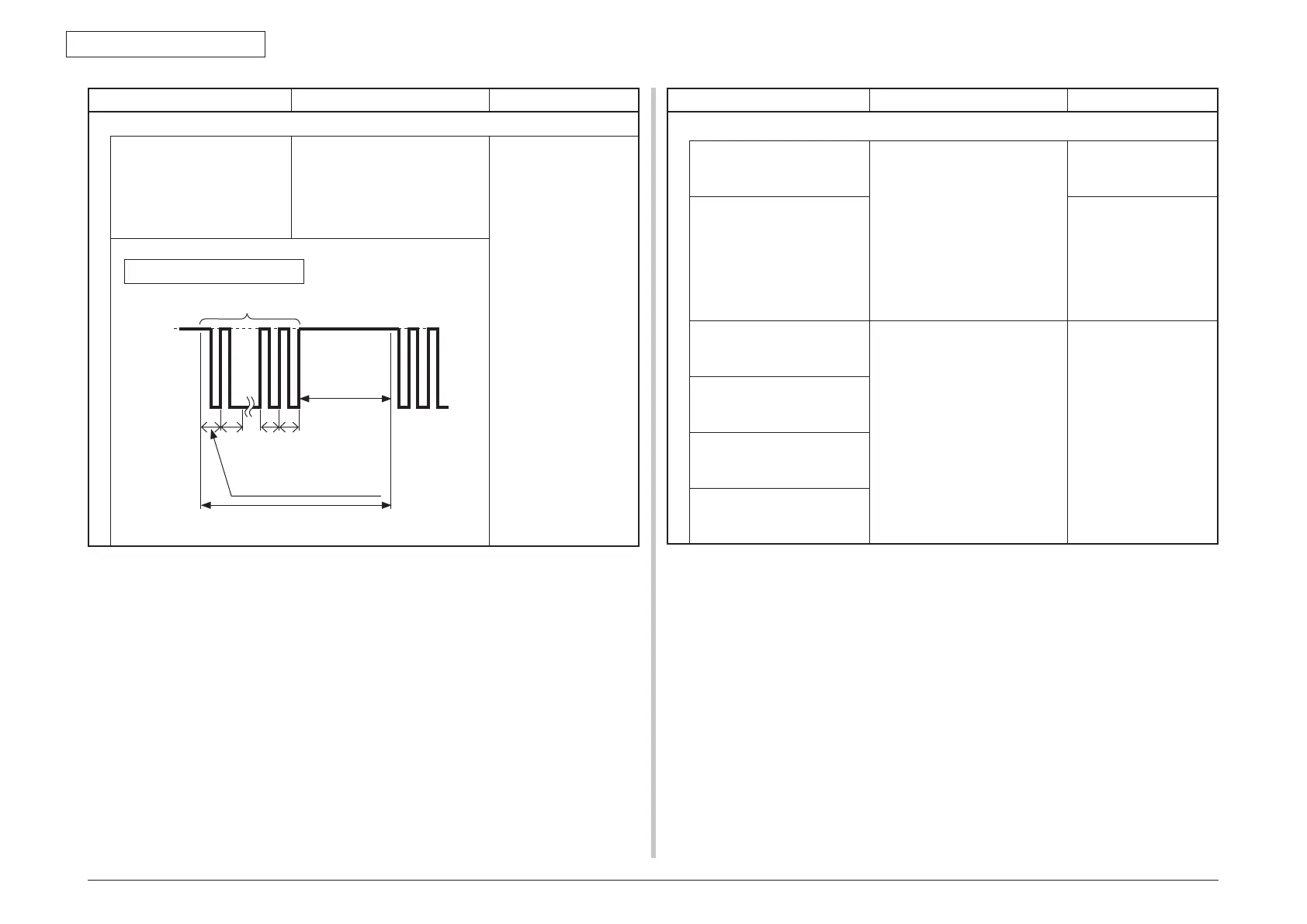

(2-1-2) Confirmation of the power switch LED
Power Switch LED Confirm whether the LED is off.
If the LED blinks rapidly, the
number of blinking times in a
cycleshows an error. The timing
of blinking rapidly is shown in the
below figure
Replace either of the
power supply unit, the
CU board (MRM), SW-
Assy (Front), the cables
connected to the CU
board and power supply
unit or the cables
connected to the CU
board and SW-assy.
In case of 2, 4, 8 or 10
times of LED blinking
rapidly: Replace either
of the power supply unit,
the CU board (MRM),
the cables connected
to the power supply unit
and the CU board.
In case of 3, 6 or 9
times of LED blinking
rapidly: Replace the CU
board (MRM).
Check item Checking Action in case of fail
(2-1-3) Checking connections
Connection between low-
voltage power supply unit and
CU/PU board (MRM)
Make sure the low-voltage power
supply unit is connected to the
POWER connector on the CU/
PU board (MRM) properly.
Check whether the cable
connector is half-connected
or tilted, or whether wires are
broken.
Check whether there is any
fault in the cable assembly, e.g.,
missing wires.
Connect the cable
properly.
Cable assembly connecting
low-voltage power supply unit
to CU/PU board (MRM)
Replace the cable with
a good cable.
Connection between low-
voltage power supply unit and
SU board (MSU)
Do the checking as described in
(1-1-2).
Refer to (1-1-2).
Cable assembly connecting
low-voltage power supply unit
to SU board (MSU)
Connection between CU/PU
board (MRM) unit and SU
board (MSU)
Cable assembly connecting
CU/PU board (MRM) to SU
board (MSU)
1.0 sec lighting
(No blinking)
A cycle
One time blinking (2.5Hz)
ON times 250mS
OFF times 150mS
N times blinking
ON
OFF
Rapid blinking of the LED
