Oki MB472w User Manual

45762101TH Rev.1
4-39
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

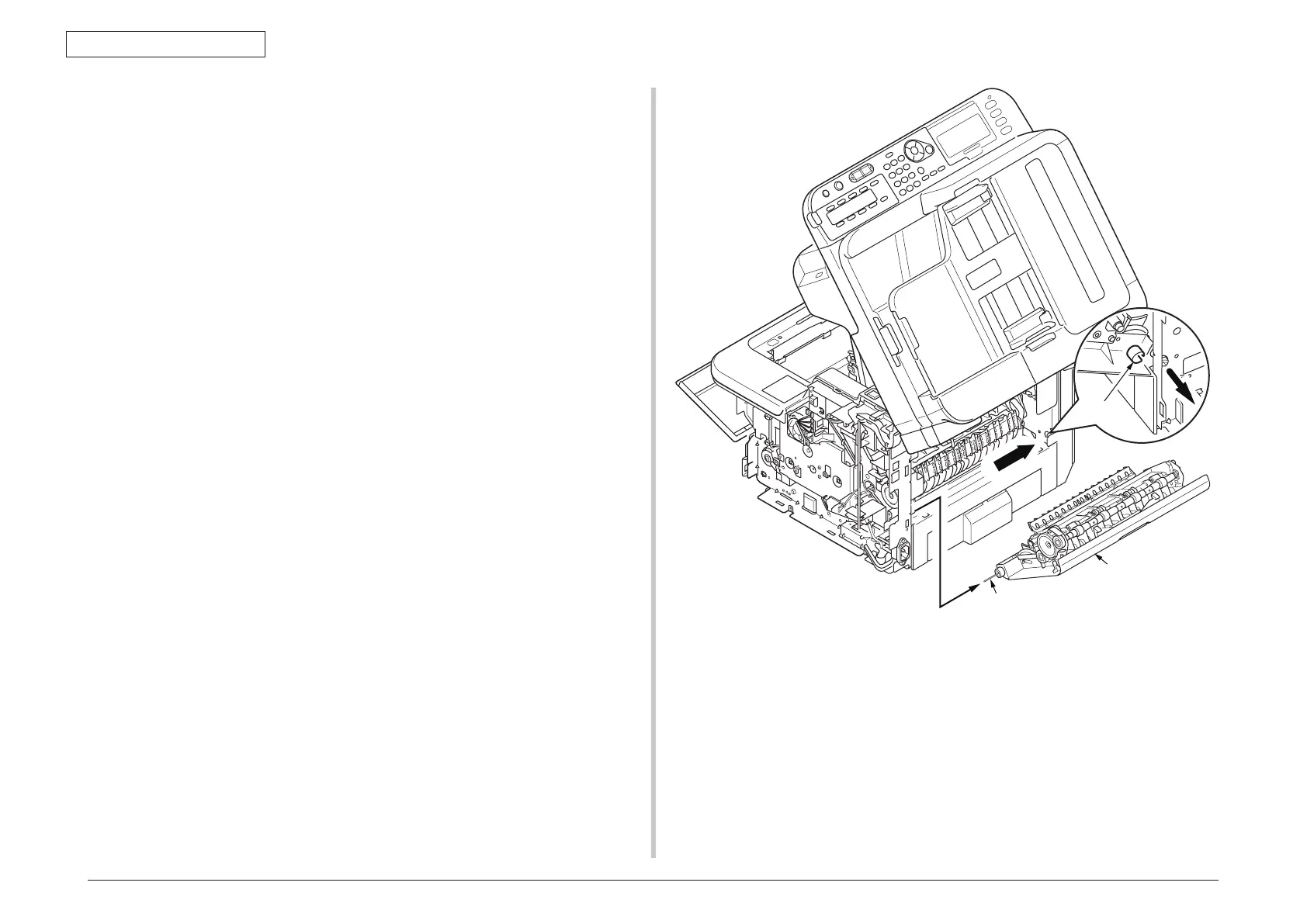

4.2.20 Cover Assy Rear
(1) Remove the CU/PU Board. (Refer to 4.2.3)
(2) Remove the Guide Cable. (Refer to 4.2.14)
(3) Remove the PWR unit-ACDC Switch. (Refer to 4.2.4)
(4) Remove the Duct Fan Power. (Refer to 4.2.13)
(5) Remove the Plate Bracket (CU). (Refer to 4.2.14)
(6) Remove the Plate Base (PWU). (Refer to 4.2.14)
(7) Remove the Spacer
①
.
(8) Slide Cover Assy Rear
②
and pull it out of the hole on the right of the
printer.
(Remove Cover Assy Rear
②
carefully to avoid Cable-Sensor-FU
③
from
being caught.)
①
②
③
