Oki MB472w - Cover-ADF-F; Guide-Assy-Exit-Sub; ADF-Assy; ADF Board (MHD)

45762101TH Rev.1
4-16
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
4.2.8.5 Cover-ADF-F / Guide-assy-exit-sub / ADF-assy / ADF
board (MHD)

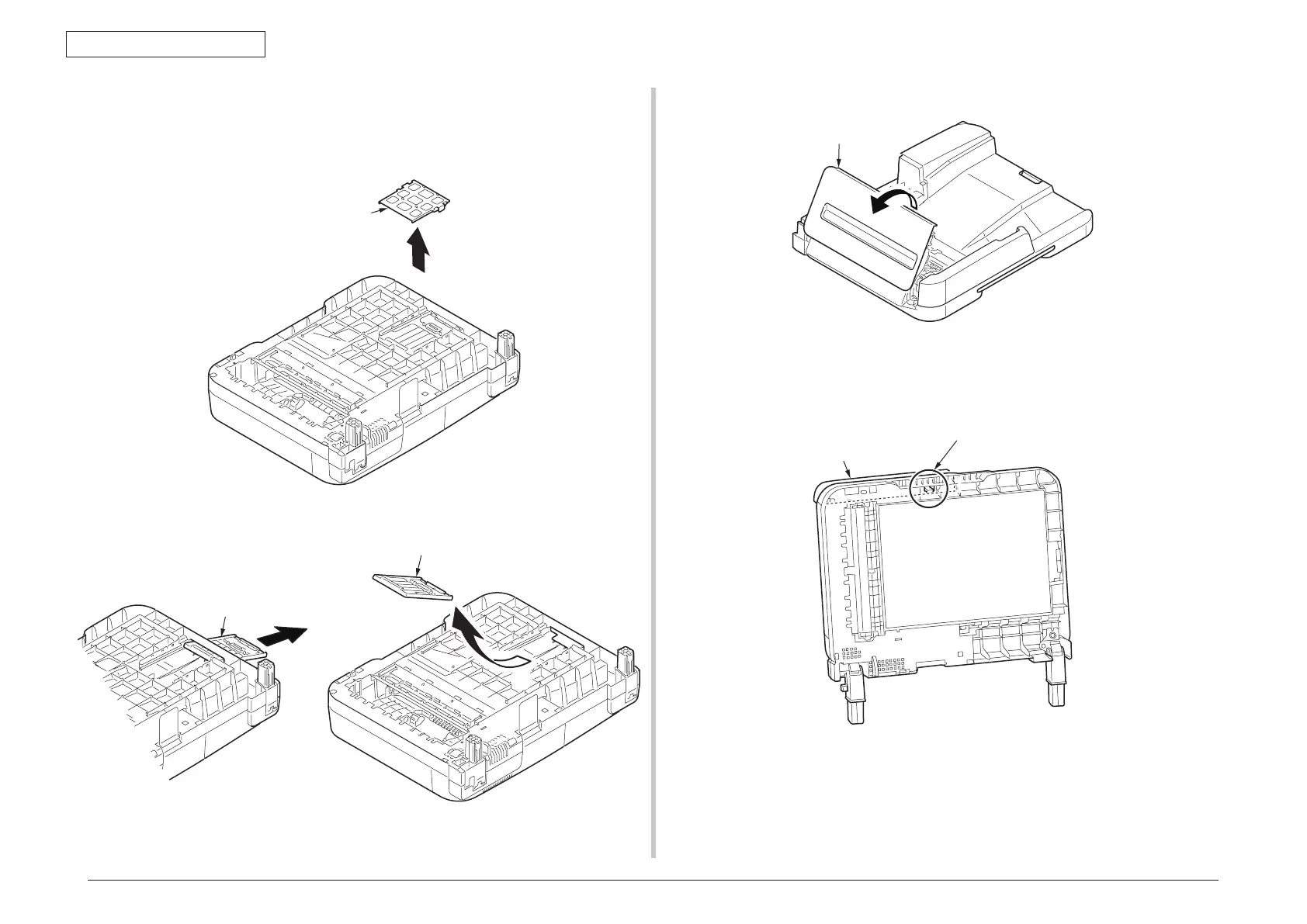

(1) Turn the ADF unit upside down and remove the support-sponge
①
.
①
(2) Remove the guide-assy-exit-sub
②
by pull it in the direction of the arrow.
(3) Open the cover-top-ADF .
②
②
❶
❷
(4) Push the claw of cover-ADF-F
③
.
Cover-top-ADF
③
Claw
