Oki MB472w User Manual

45762101TH Rev.1
4-49
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

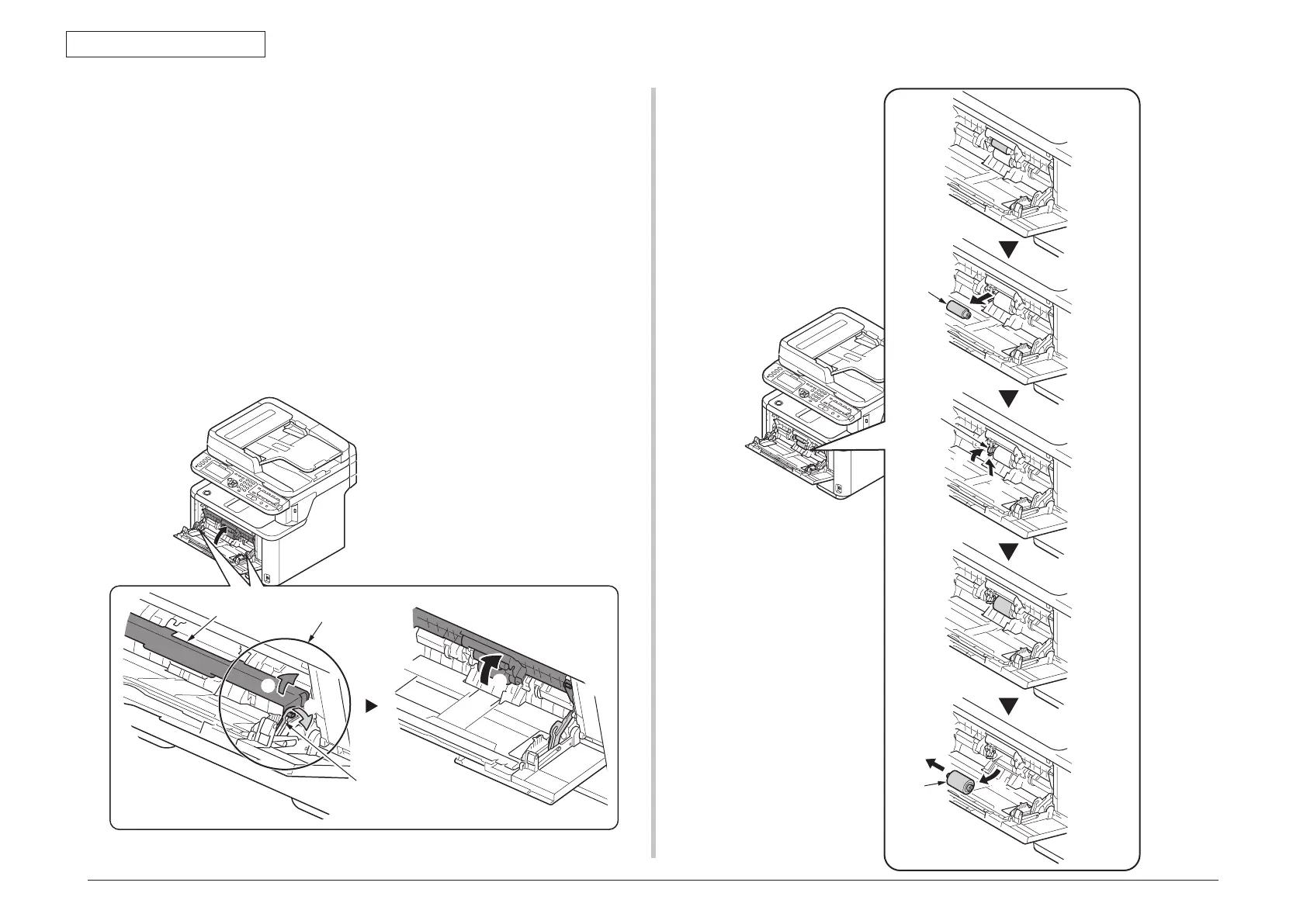

4.2.30 Paper feeding roller (Roller-Assy-MPT)
(1) Turn off the printer.
(2) Open the multipurpose tray.
(3) Open the Lever-Link
①
and feed roller cover
②
.
(4) Remove the feed sub roller
③
by rotating it toward you.
(5) Open the feed roller cover
④
by pushing its tab to the upwards
❶
and rotate
❷
(6) Remove the MPT roller
⑤
by rotating it toward you.
Note!
1. To install the feed roller (Roller-Assy-MPT)
⑤
, keep pushing the cover until the
tab of the cover
④
clicks into place.
2. Check the feed roller cover
④
locked.
❸
❶
❷
②
Both side
①
❶
❷
❶
❷
③
⑤
④
