45762101TH Rev.1
4-55
Oki Data CONFIDENTIAL

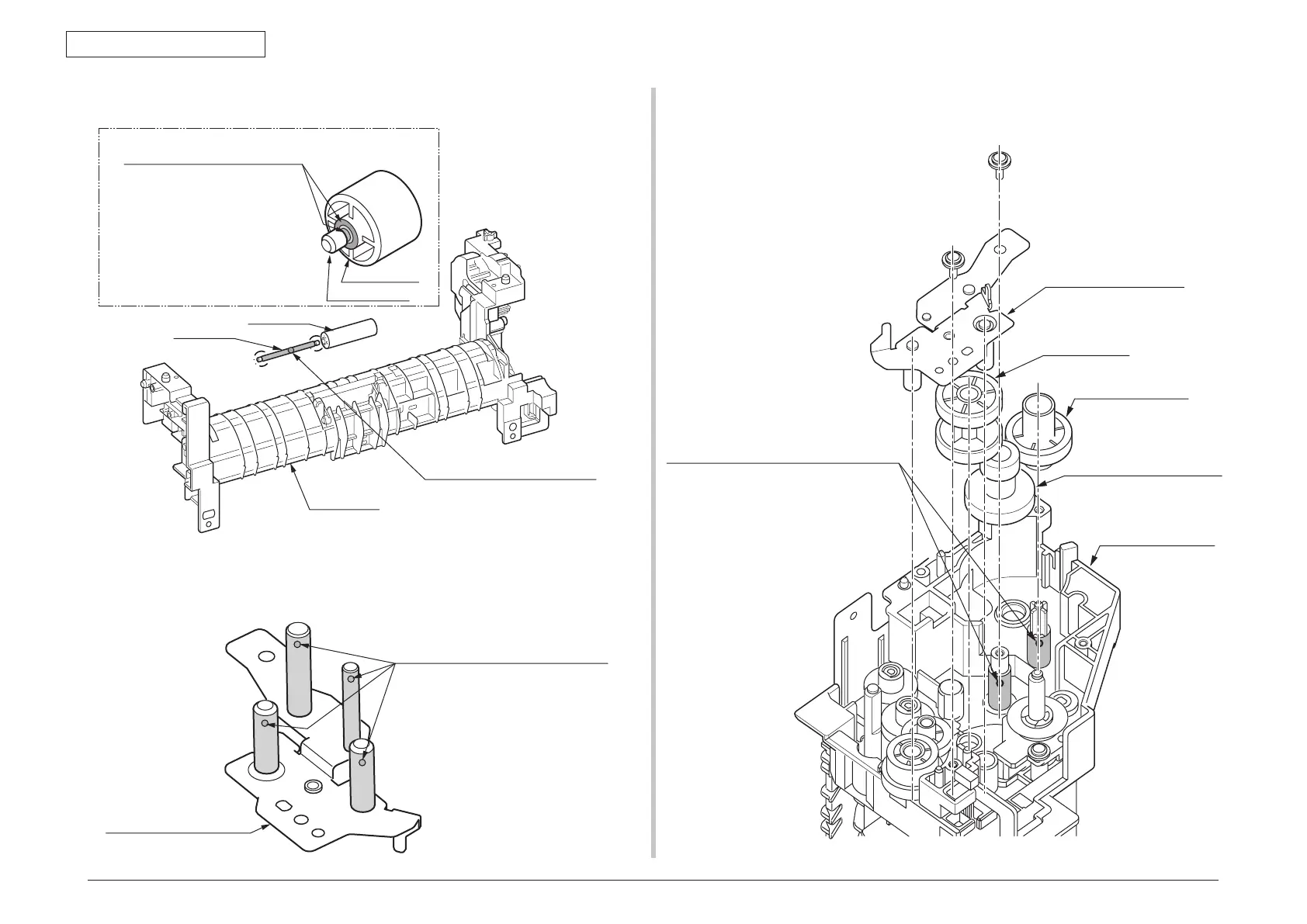

4.REPLACEMENT OF PARTS
-2 Frame-Assy. -Regist
-2 Front-Assy.
Note:1
Note:1
Frame-Regist.
Shaft-Idle-Dup
Roller-Pinch
Shaft-Idle-Dup
Roller-Pinch
EM-30LP Class A
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatched areas.
(Side of roller and ditch of shaft)
(The other side is also the same.
: Two places in total)
EM-30LP Class B
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatched areas. (Center of shaft)
Note:1
-1 Front-Assy.
Plate-Feed-B_Caulking
EM-30LP Class C
Apply a normal amount of MOLY KOTE
(EM-30LP) to the hatching areas
(Shaft end surface side)
Frame Assy.-Regist
Gear-Idle-MPT-Z35
Plate-Feed-B_Caulking
Gear-Idle-Z35
Gear-Reduction-MPT-Z37-20
EM-30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the hatching areas
(Post end surface side)
