4.REPLACEMENT OF PARTS
①
②
⑦
③
④
⑤
⑥

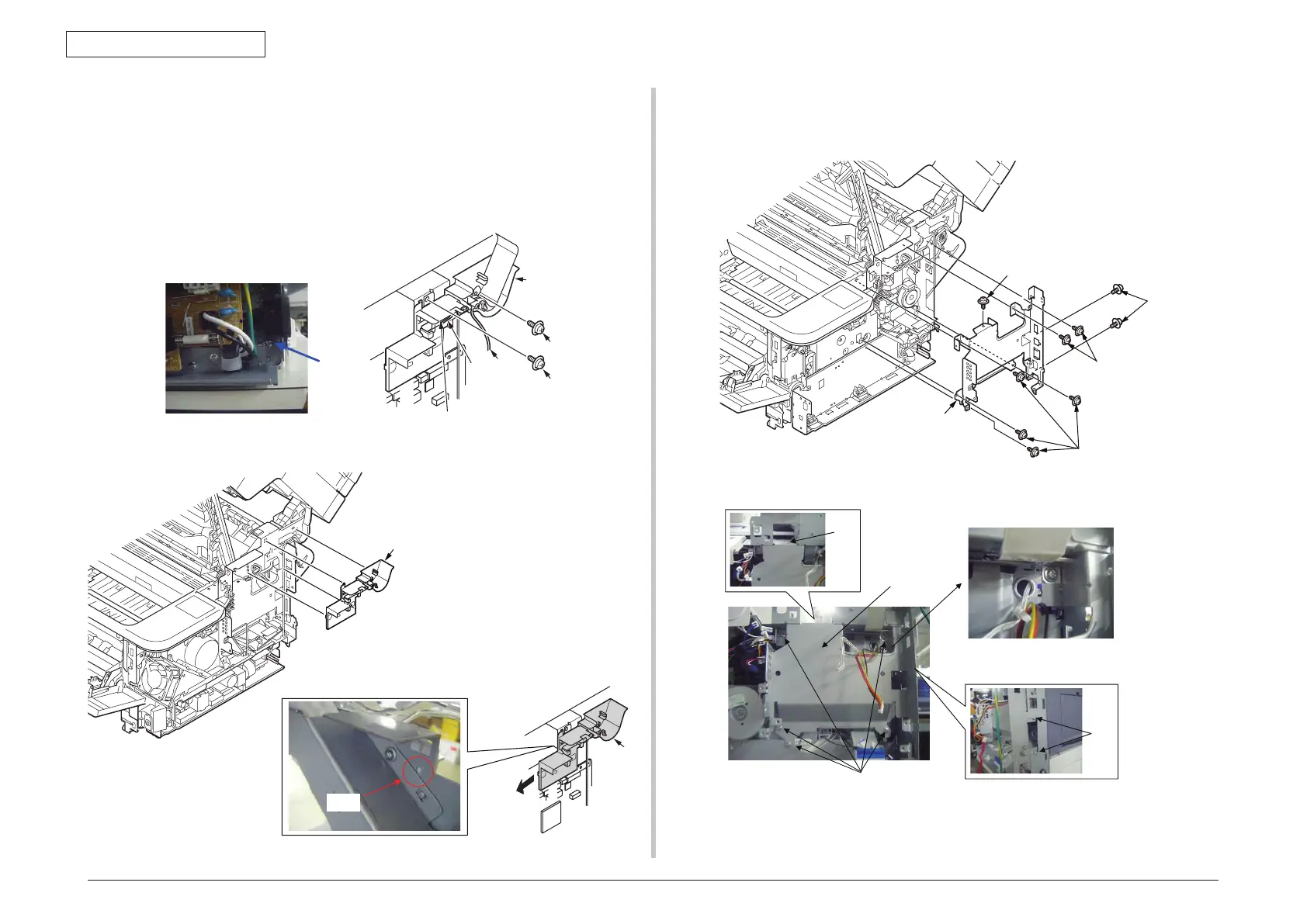

4.2.14 Hopping Clutch / MPT Clutch / Regist Clutch
(1) Remove the Board MSU. (Refer to 4.2.3).
(2) Remove the screw (Silver)
①
, and remove FG-Cable
②
from the Guide
Cable
③
.
(3) Remove the screw (Black)
④
and the screw (Silver)
⑤
, and remove FG_
Film (FFC)
⑥
and Cable
⑦
from Guide Cable
③
.
(4) Unlatch the claws (4points), and remove the Guide Cable
③
.
③
Push
③
(5) Remove the PWR unit-ACDC Switch. (Refer to 4.2.4)
(6) Remove the DC Motor . (Rever to Refer to 4.2.13)
(7) Remove nine screws (silver)
⑧
to detach the Plate Bracket (CU)
⑨
.
⑧
⑧
⑧
⑨
Clamp together the screw and the FG-Film
.
Note to assemble
⑨
⑧
⑧
⑧
⑧
