4.REPLACEMENT OF PARTS

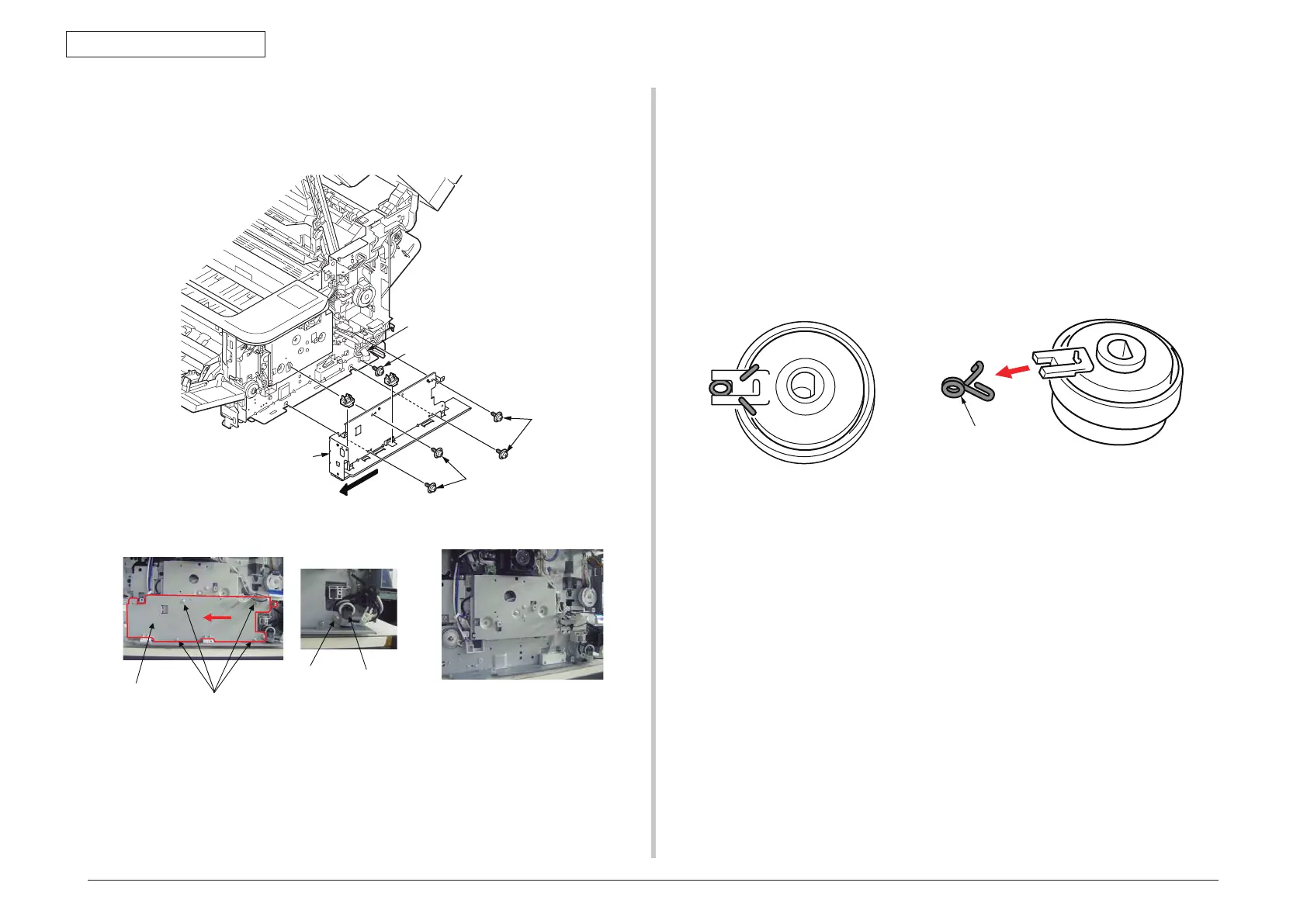

(8) Remove the screw (silver, L=8mm)
⑩
to detach the Core
⑪
.
(9) Remove four screws (silver)
⑫
, and remove the Plate Base (PWU)
⑬
with
to slide along to the arrow in figure.
⑪
⑫
⑬
⑩
(Reference)
The situation of the Mainbody
without the Plate Base (PWU).
⑩
⑪
⑫
⑫
⑬
(10) Remove two s crews (Black)
⑭
and the screw (Silver)
⑮
, remove the
Plate-Clutch-MPT
⑯
.
(11) Remove the MPT Clutch
⑰
and the Gear-MPT
⑱
.
(12) Remove four screws (Silver)
⑲
, remove the Plate-Gear
⑳
.
(13) Remove the Gear-Reduct ion
󰼼
.
(14) Remove the E-ring(RE3 -SK )
󰽇
, remove the Regist Clutch
󰽈
.
(15) Remove the E-ring(RE3-SK )
󰽉
, remove the Hopping Clutch
󰽊
.
Remove the Spring
󰽋
from the current Regist Clutch
󰽈
or the current
Hopping Clutch
󰽊
. This Spring
󰽋
can be used to the new Regist Clutch
󰽈
or the new Hopping Clutch
󰽊
.
㉖
(16) Installing is performed by the inverse procedure with removing.
Note!
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
