4.2.29 Paper feeding roller(Roller-Pick-Up, Roller-Feed-NOW)

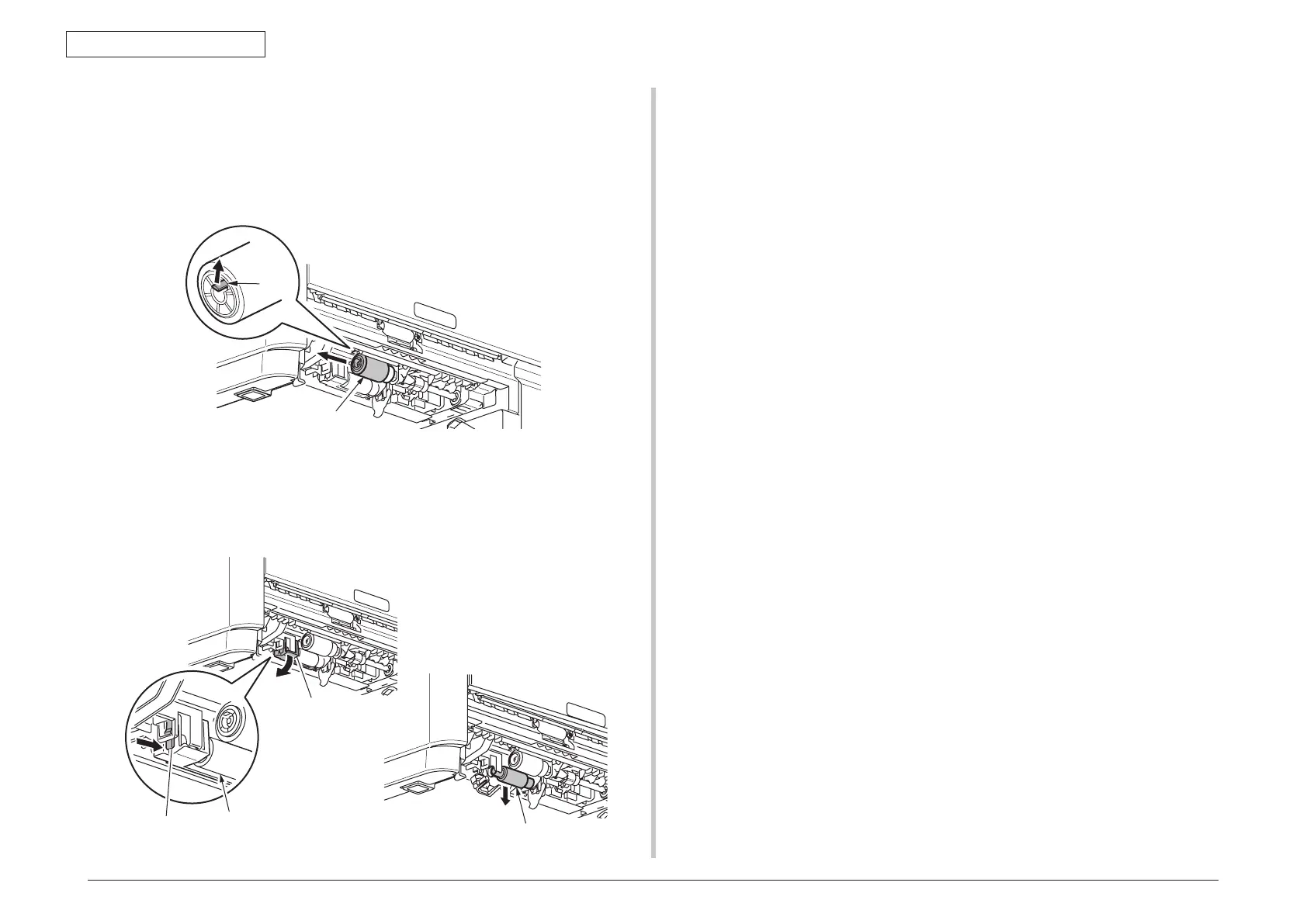

• In the case of Tray 1
(1) Turn off the printer and pull out the paper cassette tray.
(2) Remove the feed roller
①
as pushing its tab outward.
(3) As pushing the tab downward, open the cover (black) that is on the left of
the feed roller
②
.
(4) Pull out the feed roller
②
downward.
(5) Installing is performed by the inverse procedure with removing.
Note!
1. To install the feed roller (with no gear: Roller-Feed-NOW)
①
, keep
pushing it until it clicks into place and is fixed to the shaft.
2. To install the feed roller (with a gear: Roller-Pick-Up)
②
, keep pushing
the cover until the tab of the cover clicks into place.
①
Tab
②
②
Cover
Ta b
