Oki MB472w - Scanner; Mfp Nip-Fn307; Gear-Idle-Assy

45762101TH Rev.1
4-63
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

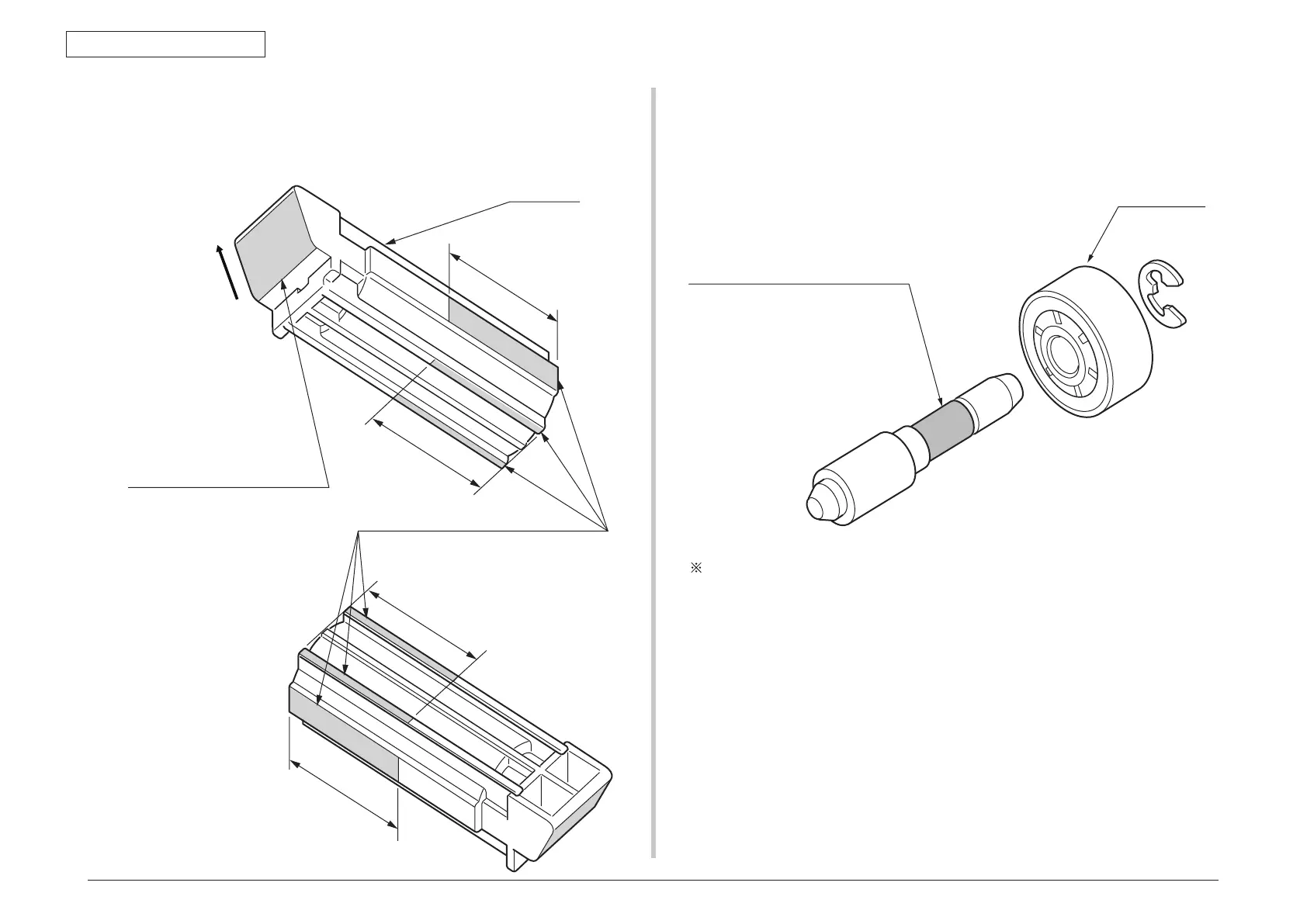

①
MFP NIP-FN307
②
Gear-Idle-Assy
4.3.2 Scanner
Slider-Hinge
EM-D110 Class C
Apply a small amount of MPLYKOTE
(EM-D110) to the sliding surface.
(hatched areas)
EM-D110 Class C
Apply a small amount of MPLY KOTE
(EM-D110) to the sliding surface.
(hatched areas)
Application Direction
(30)
(30)
(30)
(30)
Gear-Planet
SF-133 Class C
Apply a normal amount of HANARL
(SF-133) to the hatched area.
(all circumference of post)
Shaft can be soaked in HANARL.
Leave it for about 3minutes (drying time) after painting HANARL SF-133, and then
assemble the Gear-Idle-Assy.
