45762101TH Rev.1
2-43
2. TROUBLESHOOTING PROCEDURES

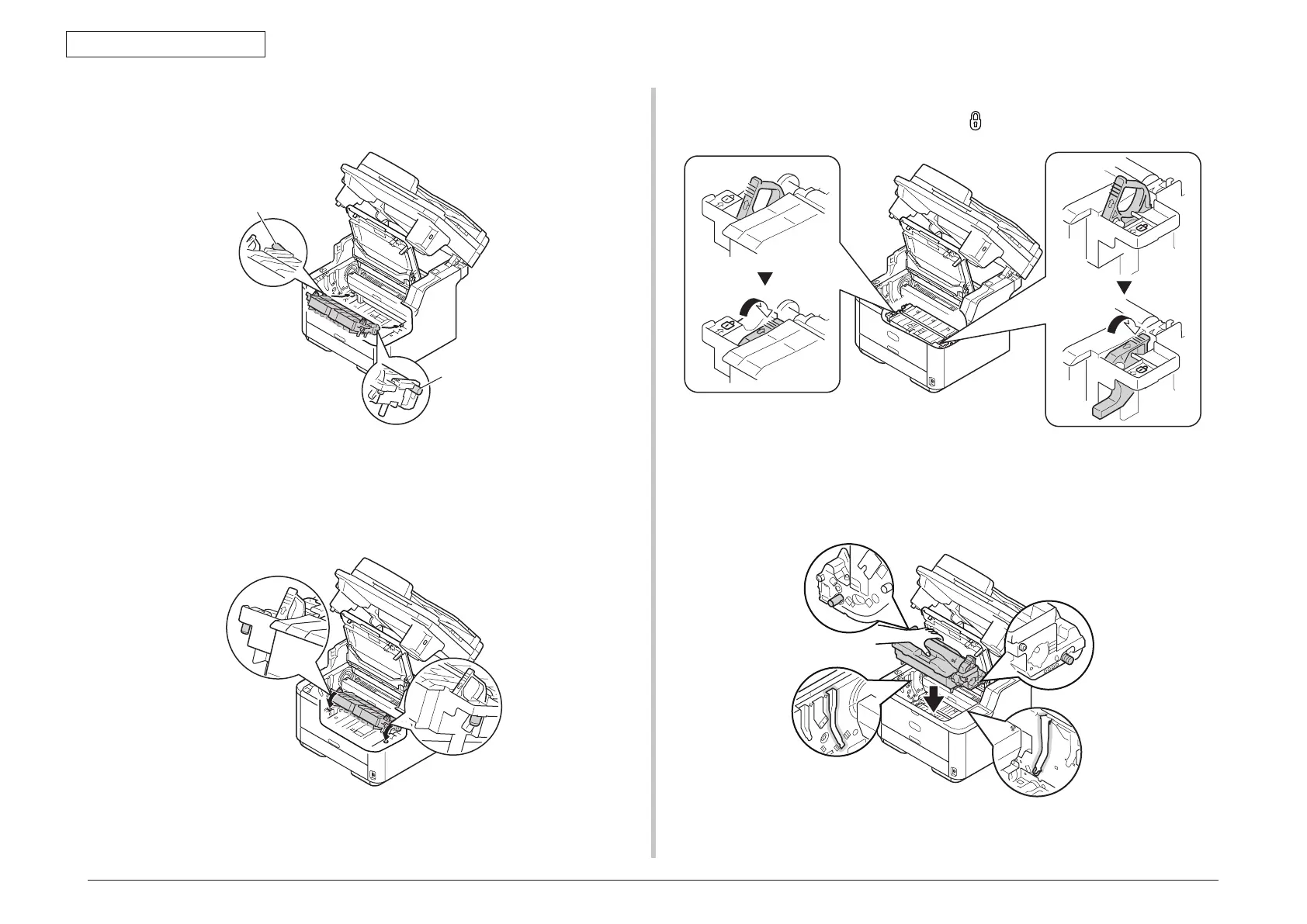

(7) When you return the transcription unit into the printer, insert both projections
④
of
the front end of transcription unit into holders of the printer.
(8) Insert rear projections , locating close to both handles of the transcription unit, into
both mounting holes of the printer.
(9) Secure the transcription unit to the printer by rotating both handles of the
transcription unit in the arrow direction of
.
Note! Do not touch the sponge roller of the transcription unit by your hand.
(10) Re-install the image drum complete with toner cartridge, ensuring that the pegs
(1 & 2) correctly locate into the slots on each side of the printer (3).
(11) Close the top cover.
(12) Close the scanner unit.
④
④
To Next Page
