Diagnostic information 2-77
User operator panel, menus and messages

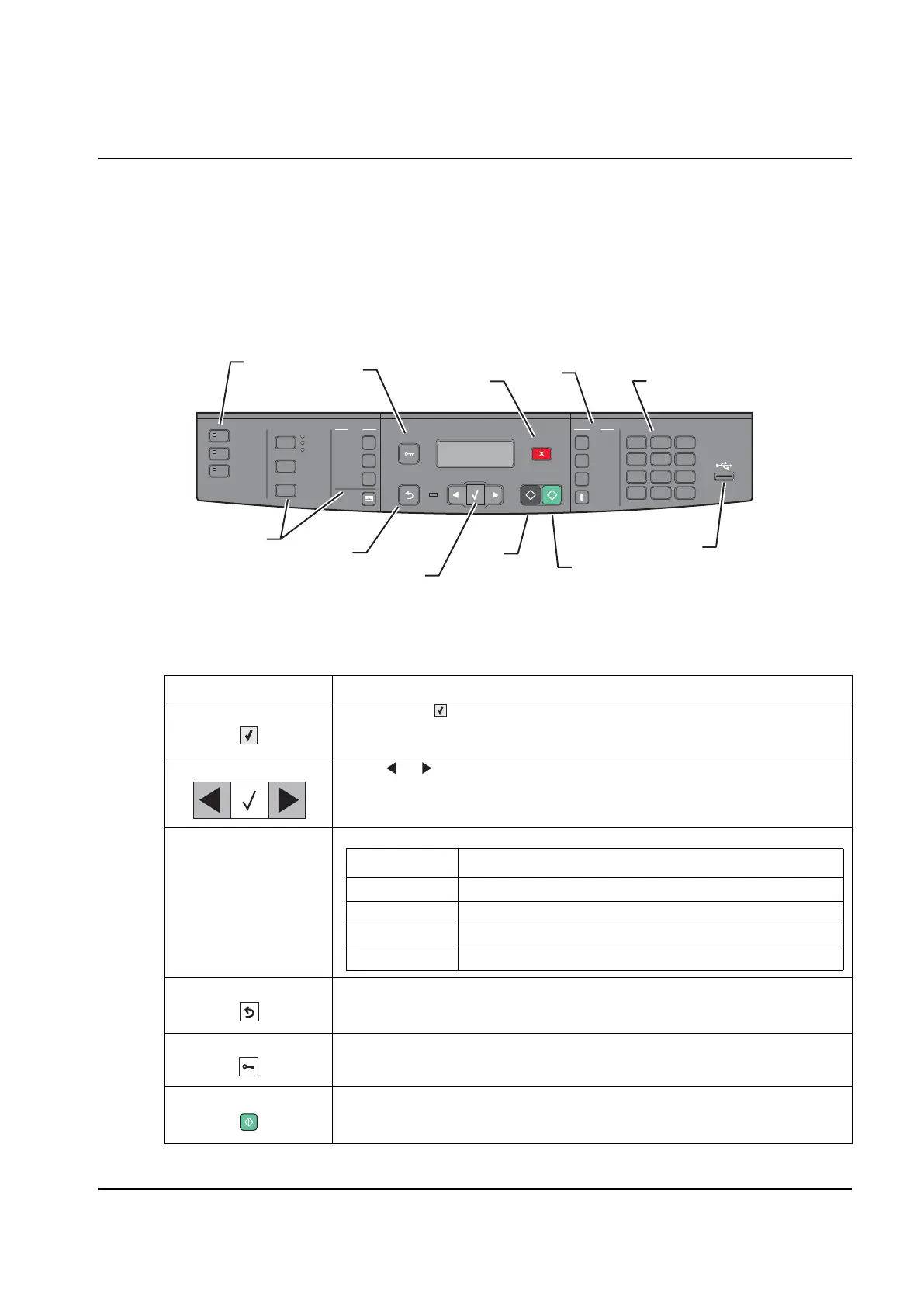

Understanding the operator panel
The printer operator panel has a four-line, back lit, grayscale display that can show both graphics and text. The
Mode selection, job setup, Back, and Menu buttons are located to the left of the display, the navigation buttons
are located below the display, and the start buttons, stop button, and numeric pad are located to the right of the
display. In addition, there is a USB jack that enables printing of certain graphics formats as well as enabling Pict
Bridge functionality.
Operator panel buttons
Button or indicator Function
Select press Select ( ) to initiate action on a menu item.
Navigation buttons press or to scroll through menu lists.
Indicator light Indicates the printer status:
Back Returns the display to the previous screen.
Menu Opens the menu index.
Start / Color press to start a job in color.
Shortcuts
3
DEF
6
MNO
9
WXYZ
#
2
ABC
5
JKL
8
TUV
0
1
@
!.
4
PQRS
7
*
Fax
Redial/Pause
Resolution
Options
Hook
Color
Select
Start
Black
Stop/Cancel
Menu
Back
Copy
Copies
Scale
Options
Content
Darkness
Duplex/2-Sided
Te xt
Text/Photo
Copy
Scan/Email
Fax
Mode
selection
Job
setup
Menu
Back
Navigation
Black
& white
Start
color
Stop
Fax
Pictbridge/USB
Alphanumeric
Status Indicates
Off The power is off.
Blinking green The printer is warming up, processing data, or printing a job.
Solid green The printer is on, but idle.
Solid red Operator intervention is needed.
Y112730-2
