4-16 Service Manual
Narrow media sensor flag removal
1. Open the front cover.
2. Remove the narrow media sensor flag.
3. Remove the cable from the retainer.
Note: Be sure to note the routing for re-installation.

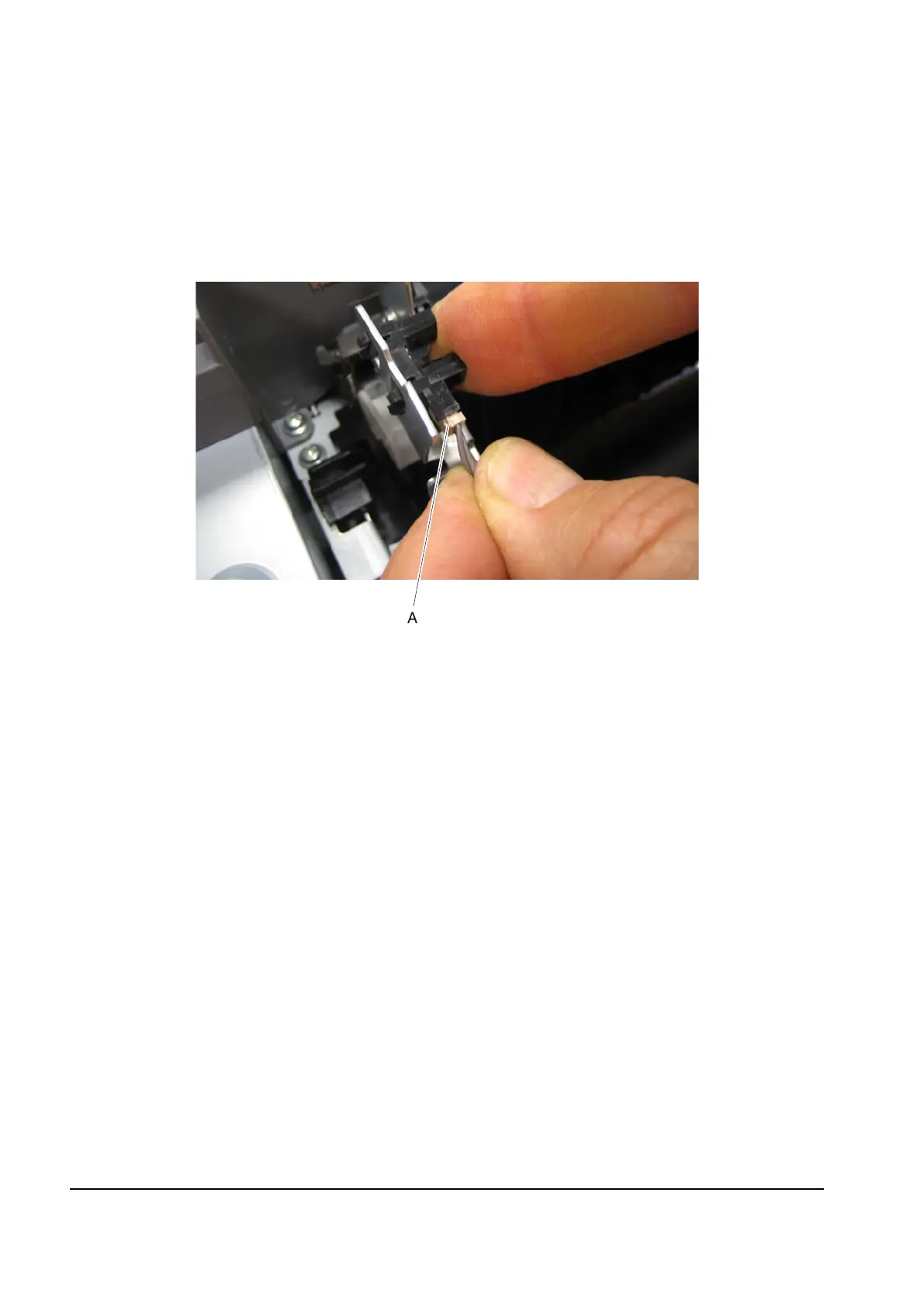

4. Disconnect the cable (A) from the narrow media sensor.
Y112730-2
