Repair information 4-103

Output bin tray

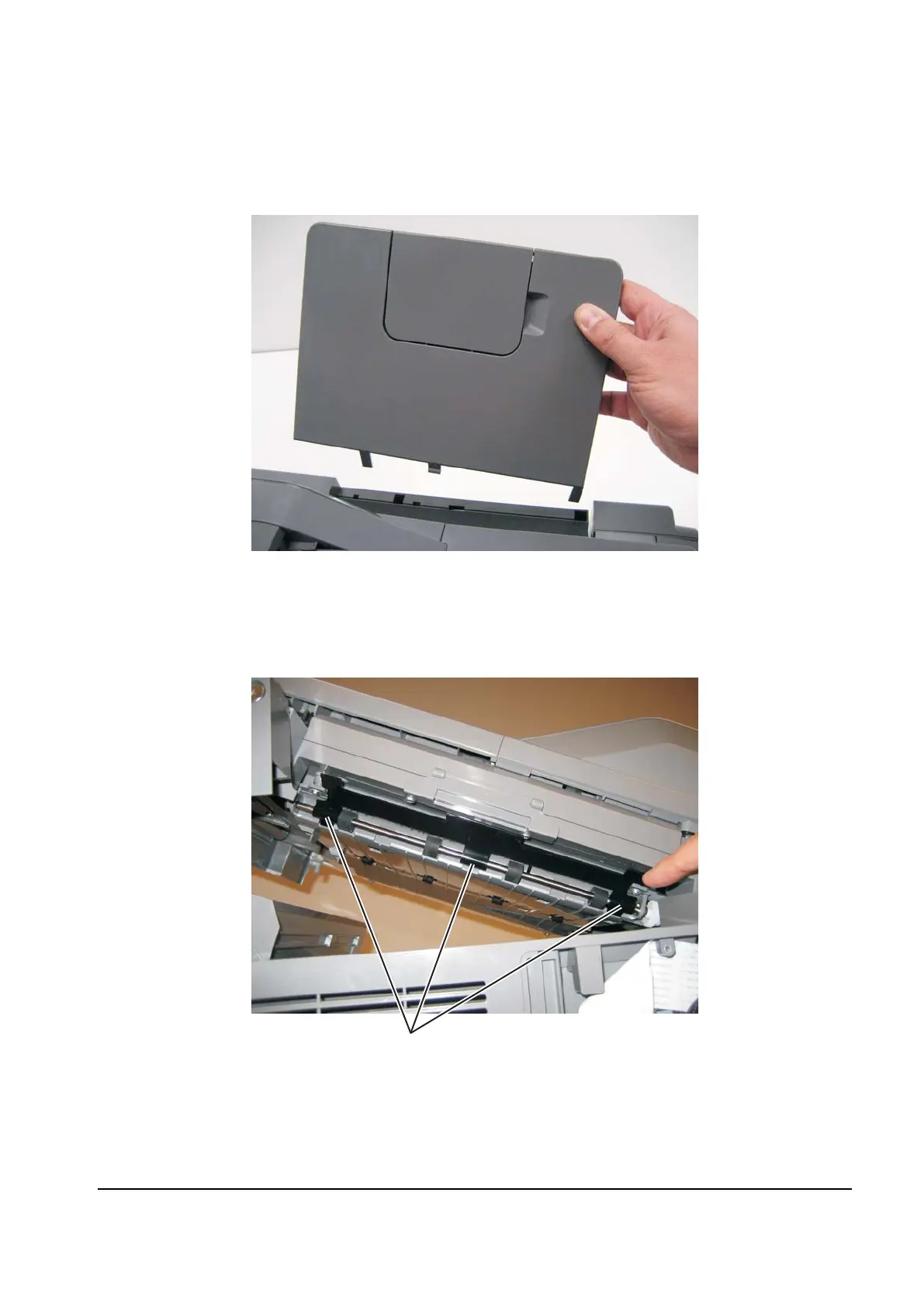

1. Grasp and lift the rear output bin tray away from the MFP.

Bin full flag removal

1. Lift the scanner assembly and lock it into the up position.

2. Gently disconnect the three snaps (A) from the rear shaft of redrive unit.

3. Remove the bin full flag.

Y112730-2
