Diagnostic aids 3-41

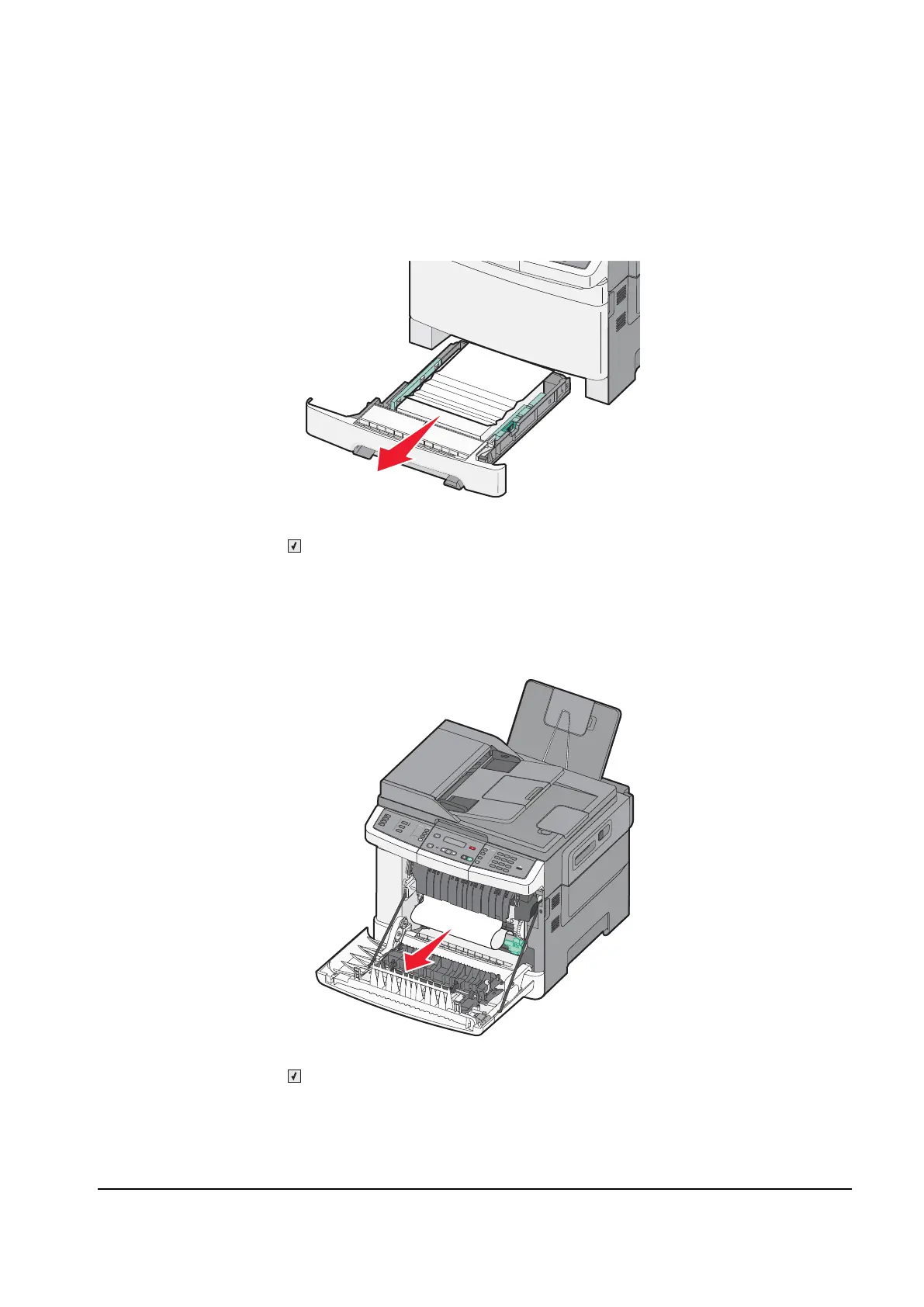

200 paper jams

Remove the standard 250-sheet tray (tray 1).

2. Remove the jam.

Note: Make sure all paper fragments are removed.

3. Insert the tray.

4. press Select ().

201 paper jam

Grasp the front door at the side handholds, and then pull it toward you to open it.

2. Remove the jammed paper.

Note: Make sure all paper fragments are removed.

3. Close the top door.

4. press Select ().

DEF

MNO

WXYZ

ABC

JKL

TUV

GHI

Y112730-2
