Repair information 4-81

Flatbed pivot link removal

1. Remove the AIO link. See “AIO link” on page 4-96.

2. Remove the right scanner cover. See “Cover scanner right” on page 4-93.

3. Remove the AIO release lever. See “AIO release lever” on page 4-95.

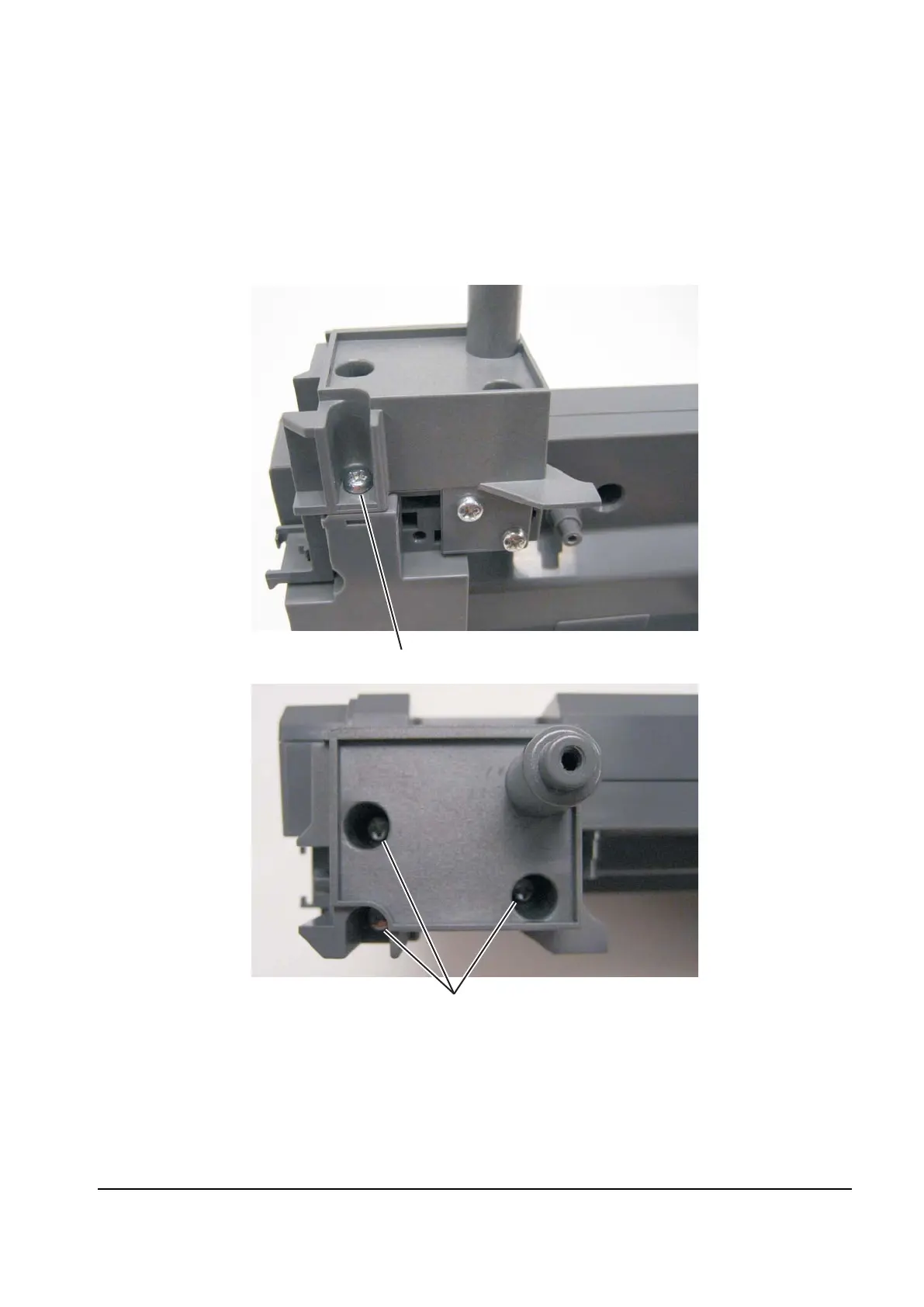

4. Remove the screws (A) securing the flatbed link to the flatbed.

5. Remove the flatbed pivot link.

Y112730-2
