4-42 Service Manual

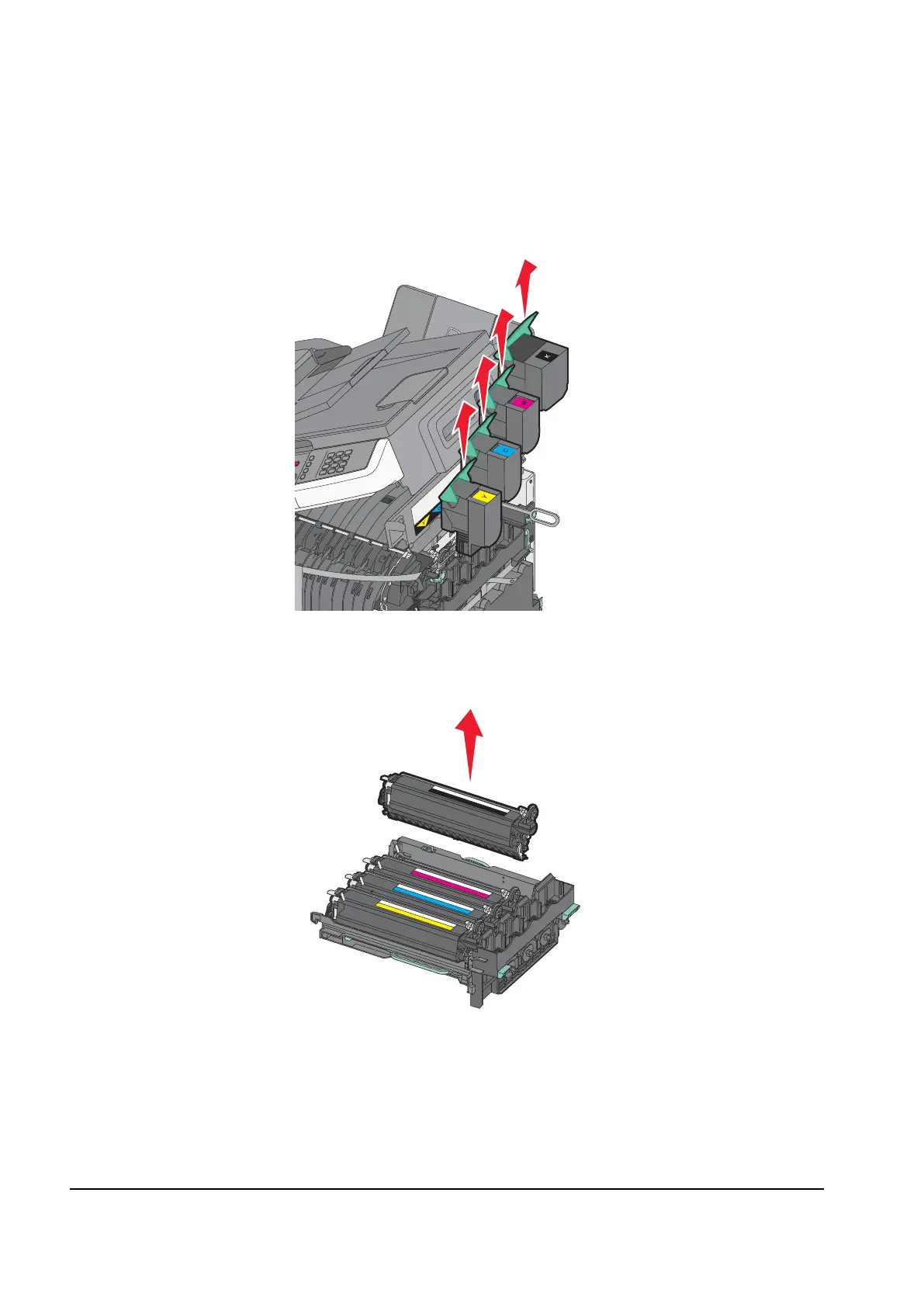

Developer unit removal

The developer units are not FRUs.

1. Raise the scanner unit, and remove the toner cartridges.

2. Remove the imaging unit. See “Imaging unit (IU) removal”.

Warning: Do not touch the underside of the imaging unit. This could damage the developer units.

3. Remove the developer unit you need.

Y112730-2
